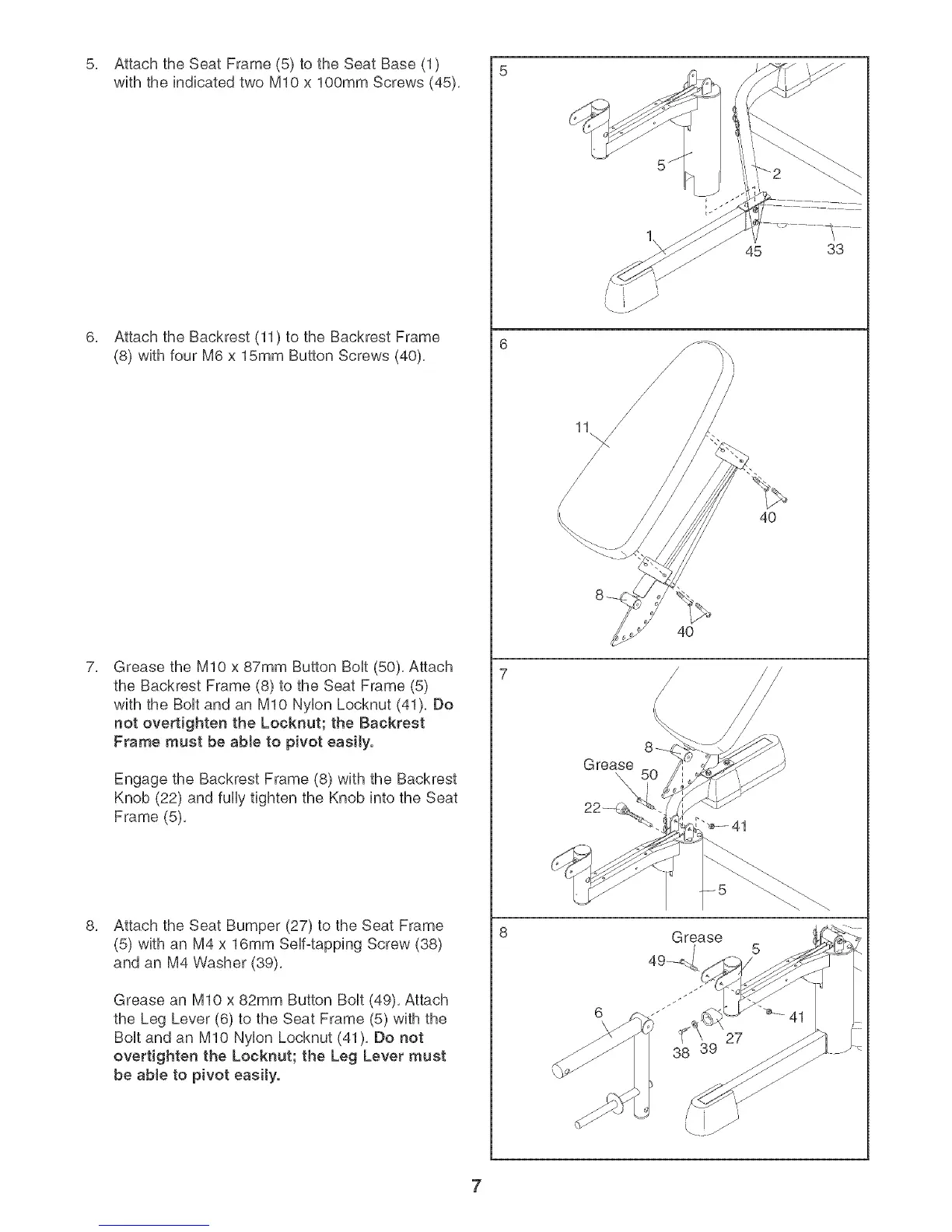

5, Attach the Seat Frame (5) to the Seat Base (1) 5
with the indicated two MIO x lOOmm Screws (45),
Attach the Backrest (11) to the Backrest Frame
(8) with four M6 x 15mm Button Screws (40),
Grease the MIO x 87mm Button BoUt(50), Attach
the Backrest Frame (8) to the Seat Frame (5)
with the BoUtand an MIO NyUonLocknut (41), Do
not overtighten the Locknut; the Backrest
Frame must be abJe to pivot easily.
Engage the Backrest Frame (8) with the Backrest
Knob (22) and fully tighten the Knob into the Seat
Frame (5),
Attach the Seat Bumper (27) to the Seat Frame
(5) with an M4 x 16mm Serf-tapping Screw (38)
and an M4 Washer (39),
Grease an MIO x 82mm Button BoUt(49), Attach
the Leg Lever (6) to the Seat Frame (5) with the
BoUtand an MIO NyUonLocknut (41), Do not
overtighten the Locknut; the Leg Lever must
be able to pivot easity.
/
/
/
11 /
/
G rease
\
4O
4O
Grease
5
33
7
