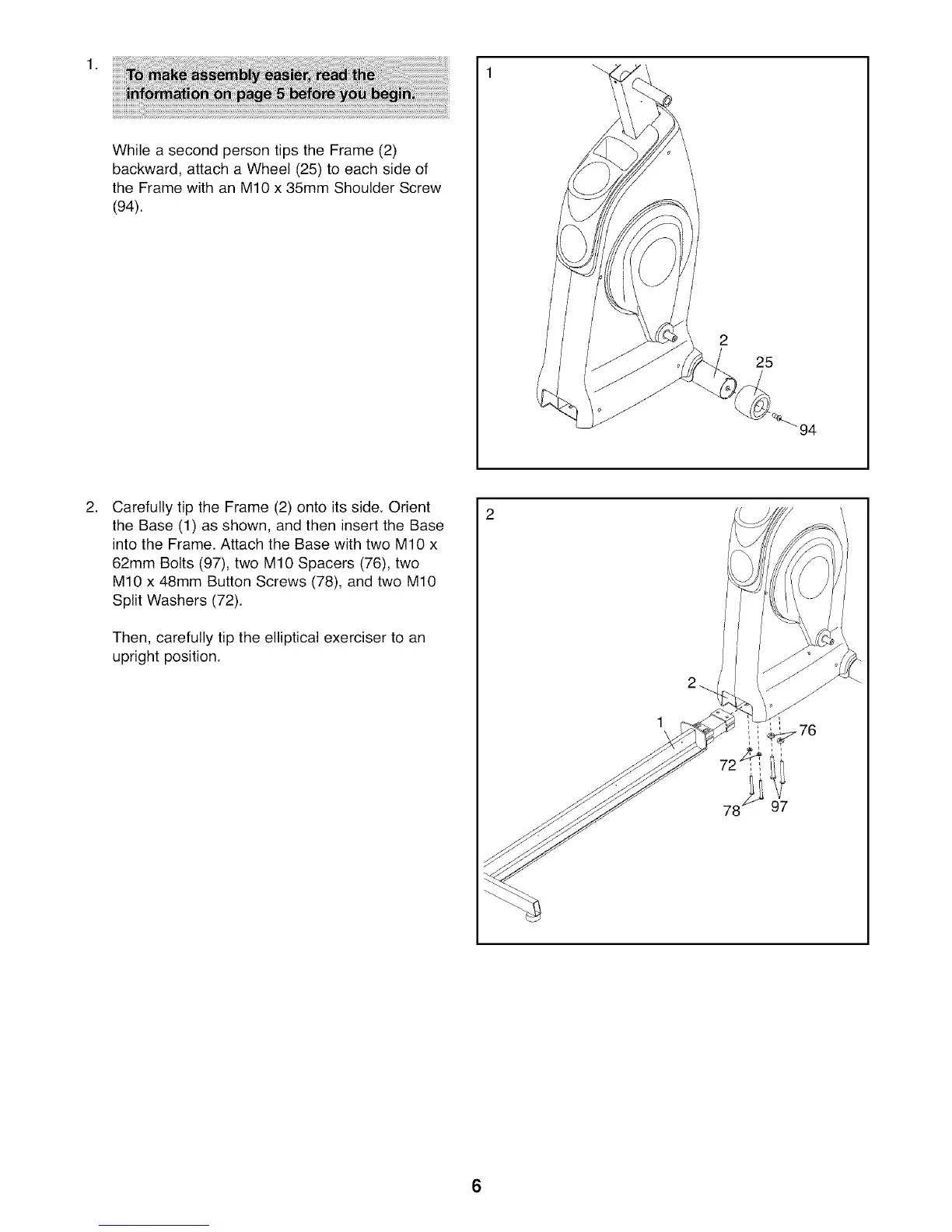

WhileasecondpersontipstheFrame(2)
backward,attachaWheel(25)toeachsideof
theFramewithanMIOx35mmShoulderScrew
(94).
25
94
Carefully tip the Frame (2) onto its side. Orient
the Base (1) as shown, and then insert the Base
into the Frame. Attach the Base with two MIO x
62mm Bolts (97), two MIO Spacers (76), two
MIO x 48mm Button Screws (78), and two MIO
Split Washers (72).
Then, carefully tip the elliptical exerciser to an
upright position.
6
