2.3.2 Resolution

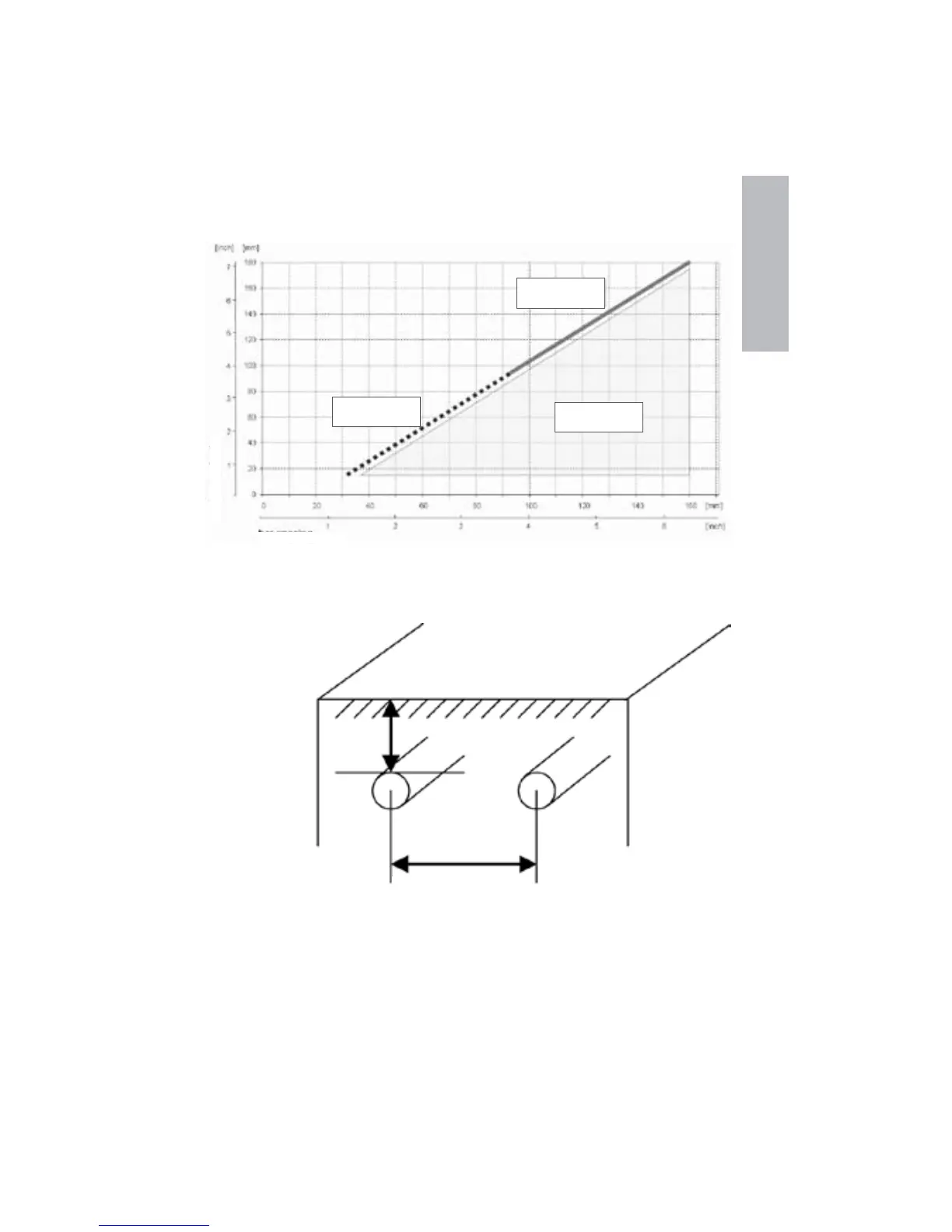

There is a limit on the minimum spacing of bars depend-
ing on the cover depth. It is impossible to distinguish be-
tween individual bars below these limits.
(For the depth at which bars of different sizes can be de-
tected at all – see 2.2)
short measuring
range
Cover depth
Bar spacing
long measuring
range
rebars can be
separated
Cover
Bar spacing
