ProFusion HA24-75E - EXTERNAL THERMOSTAT WIRING; External Thermostat Requirements

3. The external temperature control ( external thermostat) should be in accordance with
the requirement of UL or ETL standard.
4. The lead wire of external temperature control ( external thermostat) can not less than
16AWG.
External Temperature control
11
IN3
SW
NTC
IN2
PELAY4
DLSPLAY
LED
OUT6 SW-OUT SW-OUTSW-IN
OUT3
OUT2OUT1
LAMP
LAMP-N
PAN-N
PELAY5
L-IN
PELAY3
PELAY2PELAY1
IN1
Motor
240v 60Hz
Caution light
Over heat
Terminal station
OUT4 OUT5
Over heat
Power light
D
PELAY6
PELAY7
1250W Element 1250W Element 1250W Element 1250W Element 1250W Element 1250W Element
(E)
AC240V/60Hz

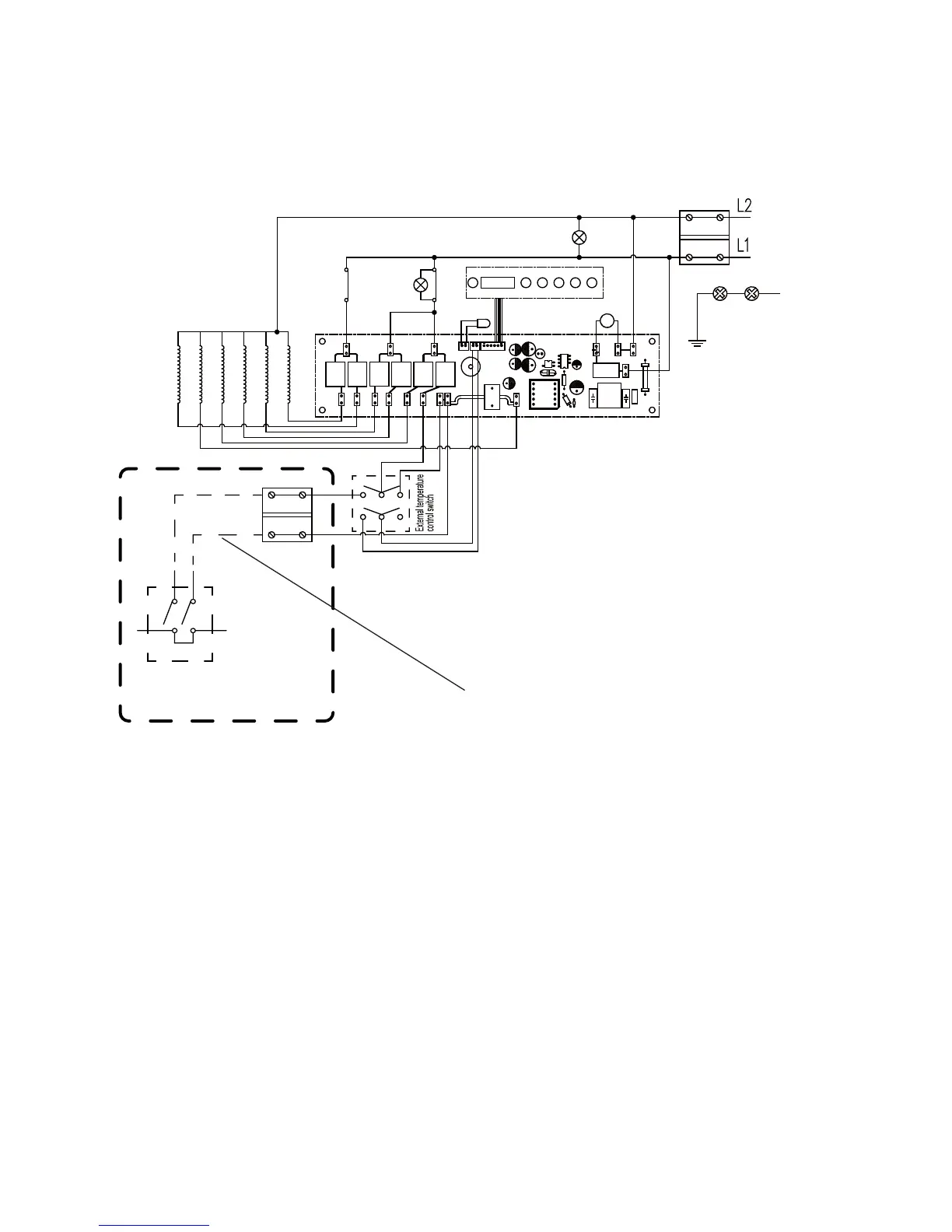

External temperature control wiring diagram
