8

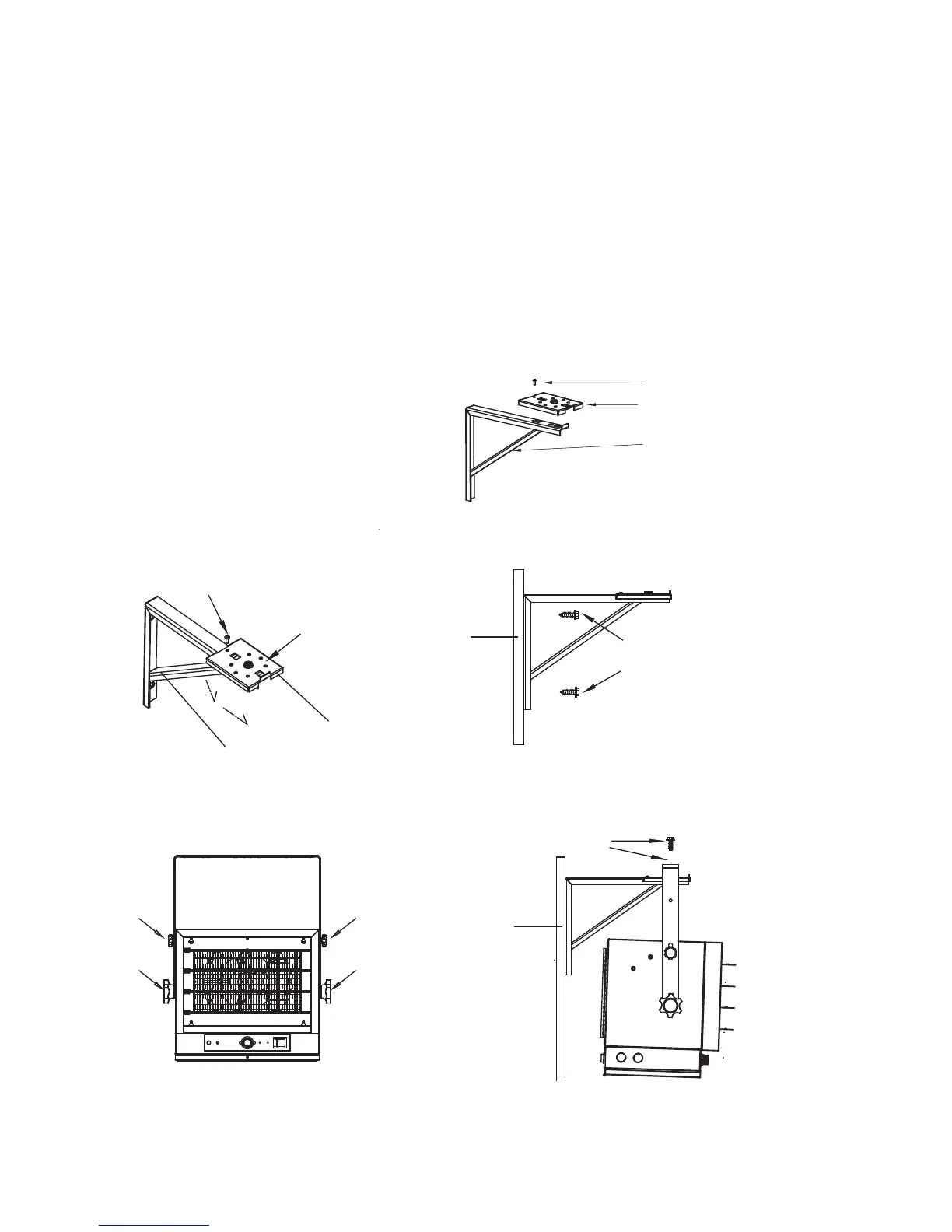

Wall mounting(optional）
MOUNTING THE BRACKET
Refer to Figures 5 to 5E.
1. Locate the bracket on the walll , this heater must be securely fastened.
2. Sliding the support plate into the tripod and alignment square hole,locked with screws.
3. Fixed the bracket on the wall.
4.Fixed the gibbet on the machine ,and adjusted angle with
BOTTOM KEYHOLE
,
5.Insttall the heater on the bracket with screw,heater must be securely fastened
6.Adjust the horizontal angel refer to Figres 5E
3.Use the
BOTTOM KEYHOLE
to lock the angel
2.Install the bracket on
the wall with two screw
WALL
Figure 5A Figure 5B
Figure 5C Figure 5D
locked by screw
support plate
tripod
1.Sliding the support plate
into the tripod
WALL
4.Fixed the heater on
the brackets with screw
Hanging wall optional accessories
support plate
tripod
SCREW
Wall hanging parts
Figure 5
