10 | Page
Control Box

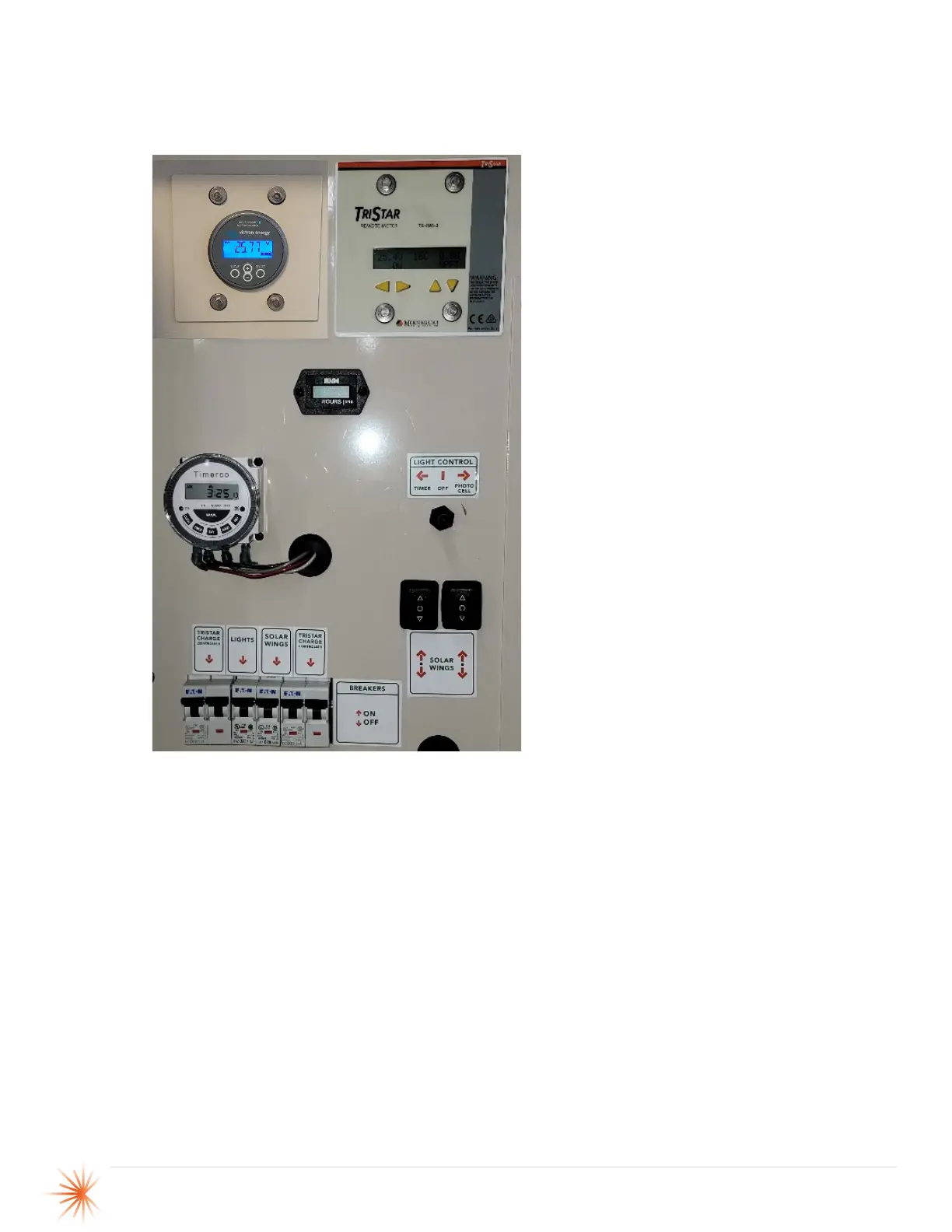

Front Control Box (Top Half)
Remote Meter(s) ‘TriStar’ for MPPT
Charge Controllers to allow user to
view performance in real time.
Victron BMV – Smart Battery monitor.
Displays: voltage, amperage, ampere-
hours consumed, wattage, hours
remaining, etc. (older units may have a
red, yellow, green state of charge
meter)
Light Control Switch - Three-way switch. Set
to the left and it turns on the Timer/Manual light
control. Set to the right and the Photocell is
turned on (turns on when dark). Set switch to
the center and it turns lights off.
Light Timer(s) to automatically or manually
turn lights on/off
Light Hour Meters(s) to record actual hours of
lighting
Wind Turbine Control Switch to turn
wind power On, Neutral or Brake
(Off) (if applicable)
