11 | Page

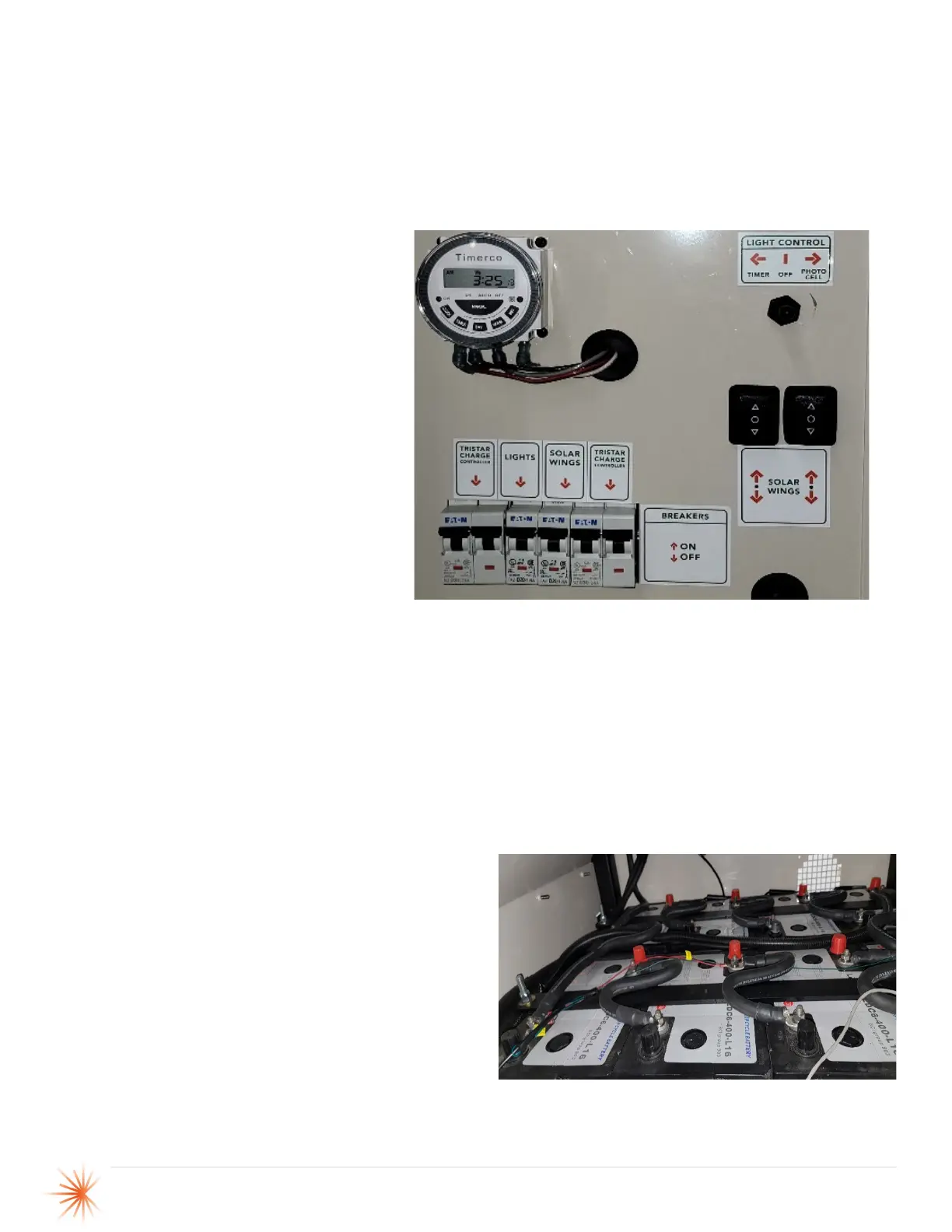

Front Control Box (lower Half)
Breaker(s) to engage or disengage electrical circuits
(up is ON, down is OFF)
Battery State-Of-Charge Meter
to enable visual real time
visualization of available power
(not shown).
Solar Wings – Use rocker
switches to automatically raise
and lower solar wings using
actuators
USB Cables to enable download
of performance data from MPPT
Controllers to your laptop
Back side of control Box
(Within Battery Storage Area)
MPPT Charge Controller(s)
AC Charger ‘On Shore’ (Back-Up)
Power Storage Module
24VDC sealed, AGM (no maintenance), Deep-
Cycle, Rechargeable Batteries
Typically, ~800aH wired as a 24VDC system.
Other battery configurations are available.
