ProLights MOBY40 - Installation; Operating Position

MOBY40
8
TILT adjustment: 15°- 35°

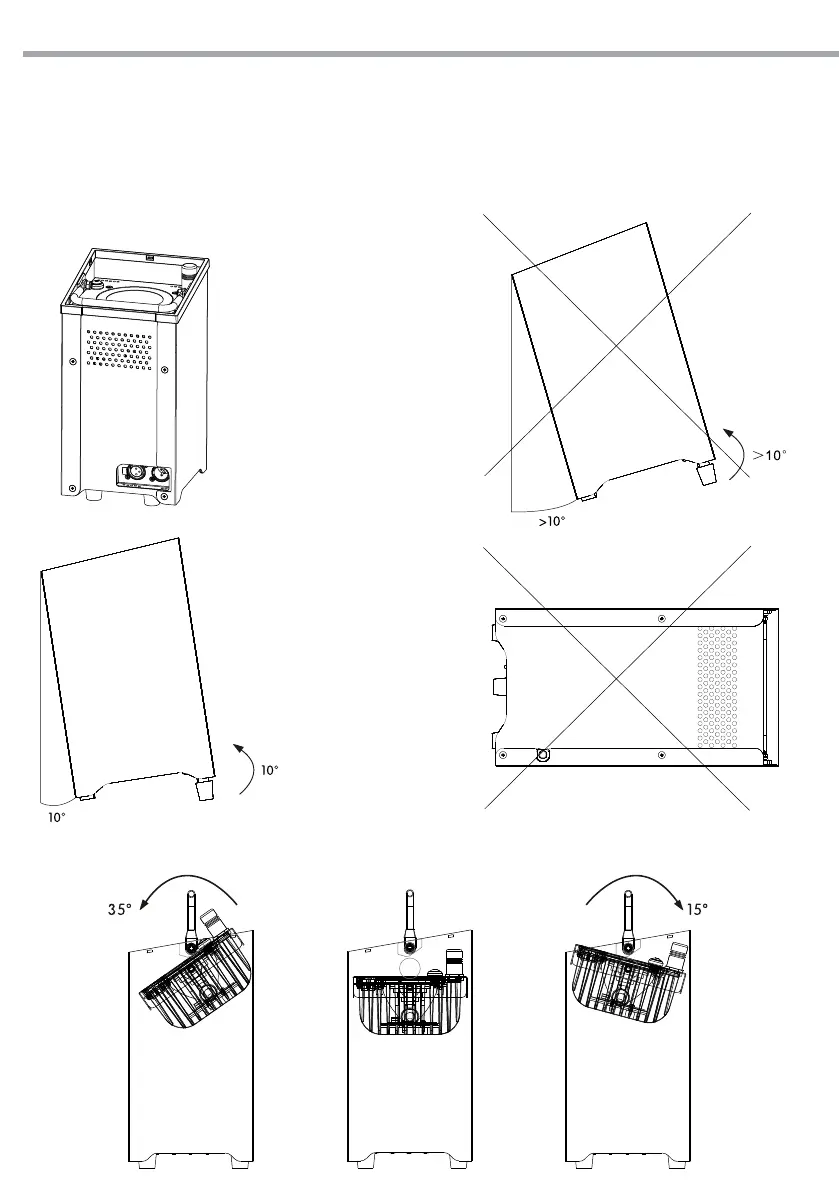

Fig.6
Incorrect operating
angle
Adjust operating
angle: 10°
Upright operation
Incorrect
installation
- 2 - INSTALLATION
2.1 OPERATING POSITION
This lighting xture is powered using a sealed lead acid battery which requires that the correct product
orientation is always maintained for operation, storage and charging.
