MOBY40
14
Number of
DMX channels
Start address
(example)
DMX Address
occupied
Next possible start
address for unit No. 1
Next possible start
address for unit No. 2
Next possible start
address for unit No. 3
12 33 33-44 45 57 69
3.8 DMX CONFIGURATIONS
MOBY40 is equipped with 8 DMX conguration.
• Press the button MENU, then press the button UP/DOWN so many times until the display shows [PERS].
Press the button ENTER to conrm.
• Select the desired DMX conguration (TOUR - TR16 - ARC.1 - AR1.D - ARC.2 - AR2.D - AR2.S - HSV) through the
buttons UP/DOWN.
The tables on page 16 indicate the operating mode and DMX value. The MOBY40 is equipped with 3-pole
XLR connections.
3.9 DMX MODE
• Press the button MENU, then press the button UP/DOWN so many times until the display shows [RUN].
Press the button ENTER to conrm.
• Press the buttons UP/DOWN to select [DMX] mode.
• Then enter the [ADDR] mode to set the ID address.
• Press the buttons UP/DOWN to select the desired value (001-512).
• After the setting value is automatically saved.
3.10 ADJUSTING THE START ADDRESS
To able to operate the MOBY40 with a light controller, adjust the DMX start address for the rst a DMX
channel. If e. g. address 33 on the controller is provided for controlling the function of the rst DMX chan-
nel, adjust the start address 33 on the MOBY40. The other functions of the light eect panel are then
automatically assigned to the following addresses.

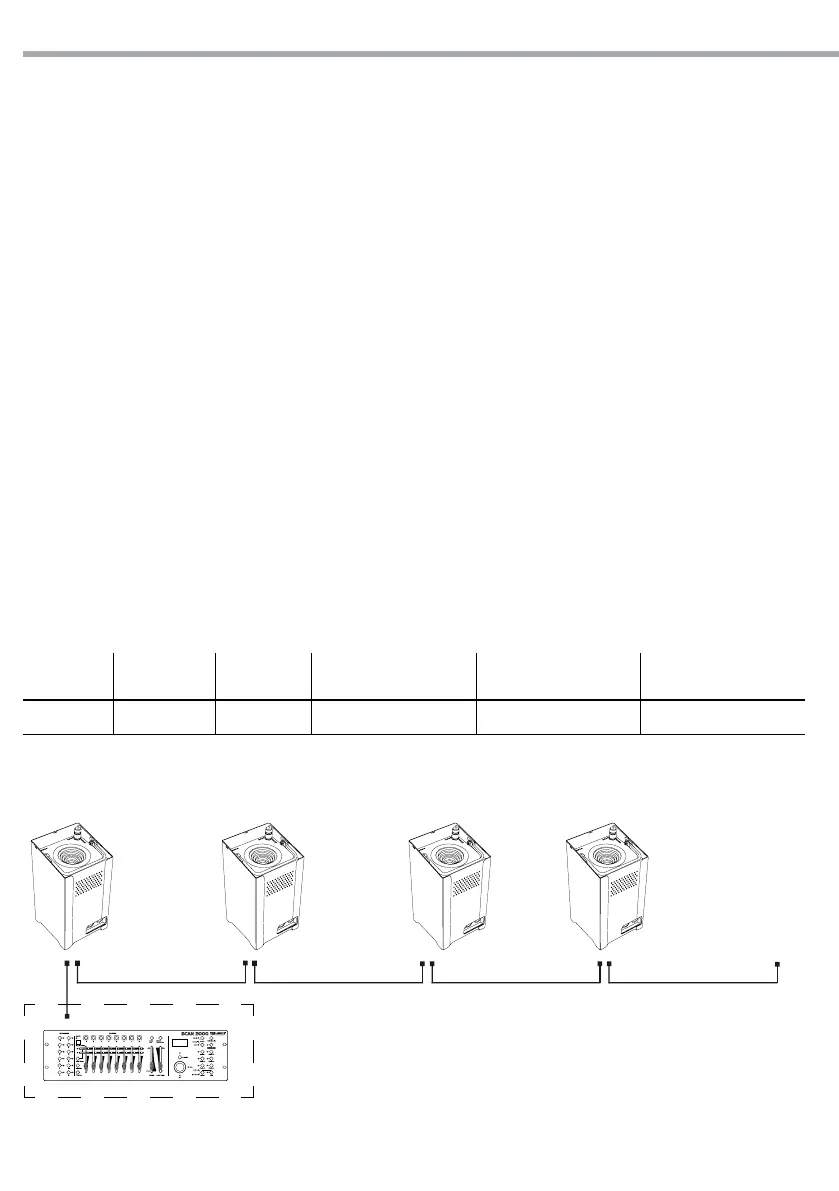

An example with the start address 33 is shown below:
DMX Address: 33 DMX Address: 69DMX Address: 45 DMX Address: 57
DMX512 Controller
. . . . . . . . . . . .
Fig.11
Example 12 DMX channels configuration
