Data input & output
ATTENTION:
• Do not connect power.
• Only for DMX data connection.
• Data input cannot be used at the same time as the wireless data receiver.
Data
output
Data
input
DMX - OUTPUT
XLR socket
DMX - INPUT
XLR plug
Pin1 : GND - Shield
Pin2 : - Negative
Pin3 : + Positive

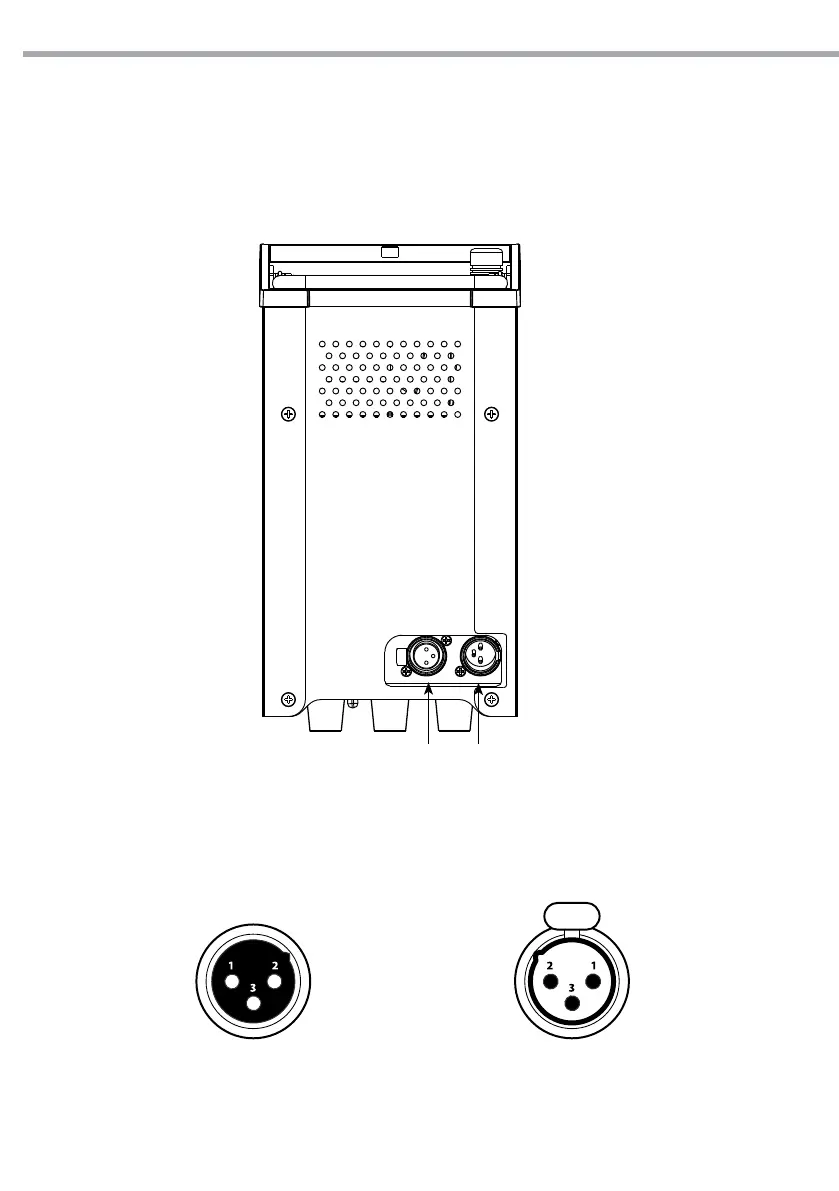

Fig.8
