USER’S MANUAL. PROMAX-25
Page 22 09/2004

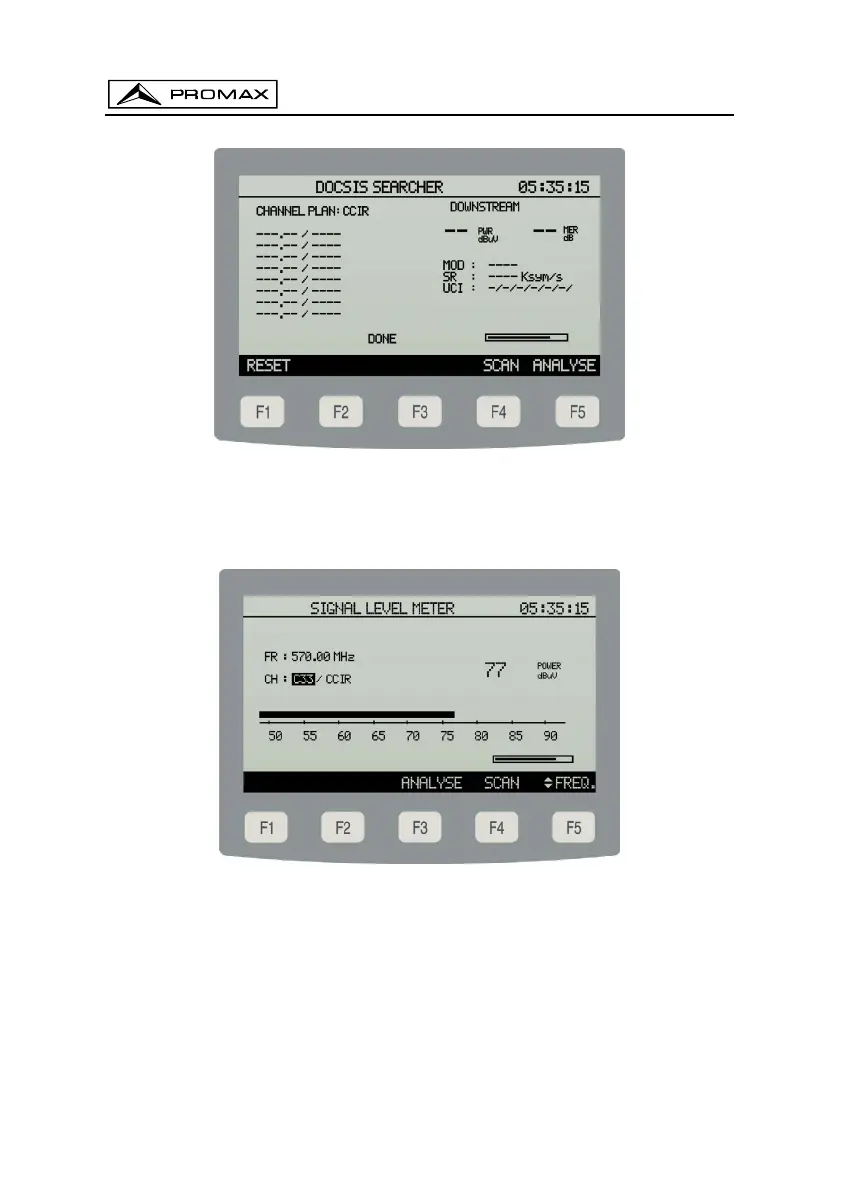

Figure 13.- Search function
The SLM (SIGNAL LEVEL METER) function allows users to acquire the tuned
channel power level in numerical terms, represented via a graphic bar with resolution of
1 dB, as shown in the following figure.
Figure 14. - SIGNAL LEVEL METER function screen.
Selecting the ANALYSE [F3] option gives direct access to measurement
functions of the ANALYSIS operating mode for the tuned channel.
It is possible to modify the value of the tuned channel frequency as well as the
channel number of the active channel plan with the FREQ. or CHANNEL [F5] option.
