USER’S MANUAL. PROMAX-25
Page 24 09/2004

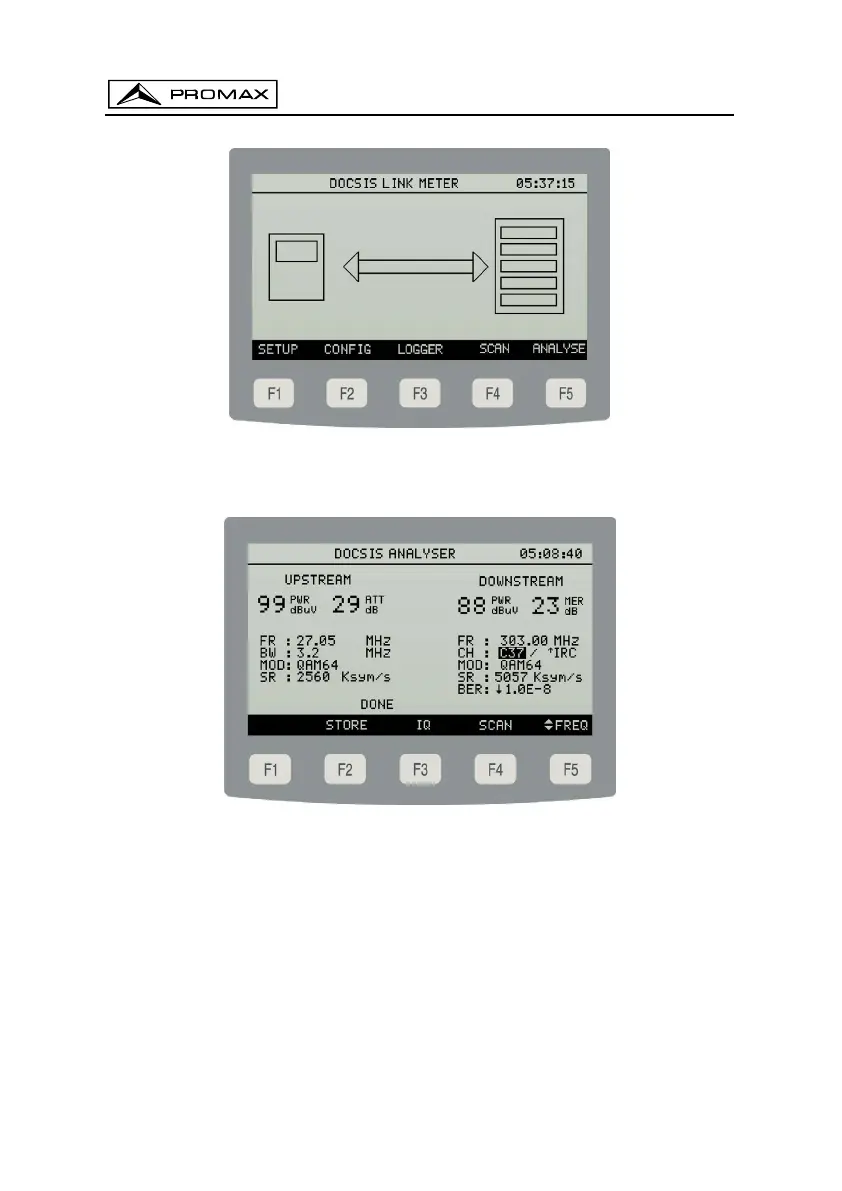

Figure 17.- Main menu.
The measurement function menu, in unregistered work mode, is made up of the
following page of options:
Figure 18.- Measurement functions menu.
The template will show the measurements obtained according to the activated
work mode (registered or unregistered) for upstreams or downstreams. For example, in
the previous figure, for the unregistered work mode and downstream the following
appear: Channel power 88 dbuV, MER 23 dB, tuning frequency 303 MHz for channel
C37, which belongs to the IRC active channel plan. Modulation 64 QAM with a symbol
rate of 5057 Ksym/s. The BER recorded is under 1.0E-8.
a) STORE
With the STORE function it is possible to store the measurements obtained in
memory for their later display, printout or transfer to a PC. The PROMAX-25 allows
users to store up to 100 loggers (or acquisitions) in the memory, with up to a
maximum of 140 analysed channels in each of them. When pressing STORE option
[F2] stores the data corresponding to the measures of the tuned channel in a
logger, that by defect it is named as the following stored acquisition. (see section
4.2.3 LOGGER Operation Mode).
