promethean ActivPanel 9 User Manual

23 ActivPanel 9 User Guide 06/22
Cloud Connect
The ActivPanel 9 allows you to easily access content saved on your Google Drive and OneDrive
through the Cloud Connect feature. Using a connected cloud drive allows you to easily access
content created on other devices. Saving content directly to your cloud drive from your ActivPanel
enables you to seamlessly share content with your colleagues and students.
Note: Users must establish their Cloud Drive connections on an ActivPanel 9 at least once. Setting up on one ActivPanel will enable
access on any AP9 where that user signs in with their Promethean account. Cloud Drive access is still subject to Google, Microsoft,
and organization policies around reauthorization, a teacher may periodically have to re-submit their credentials to keep accessing
their Cloud Drives from their Promethean account.

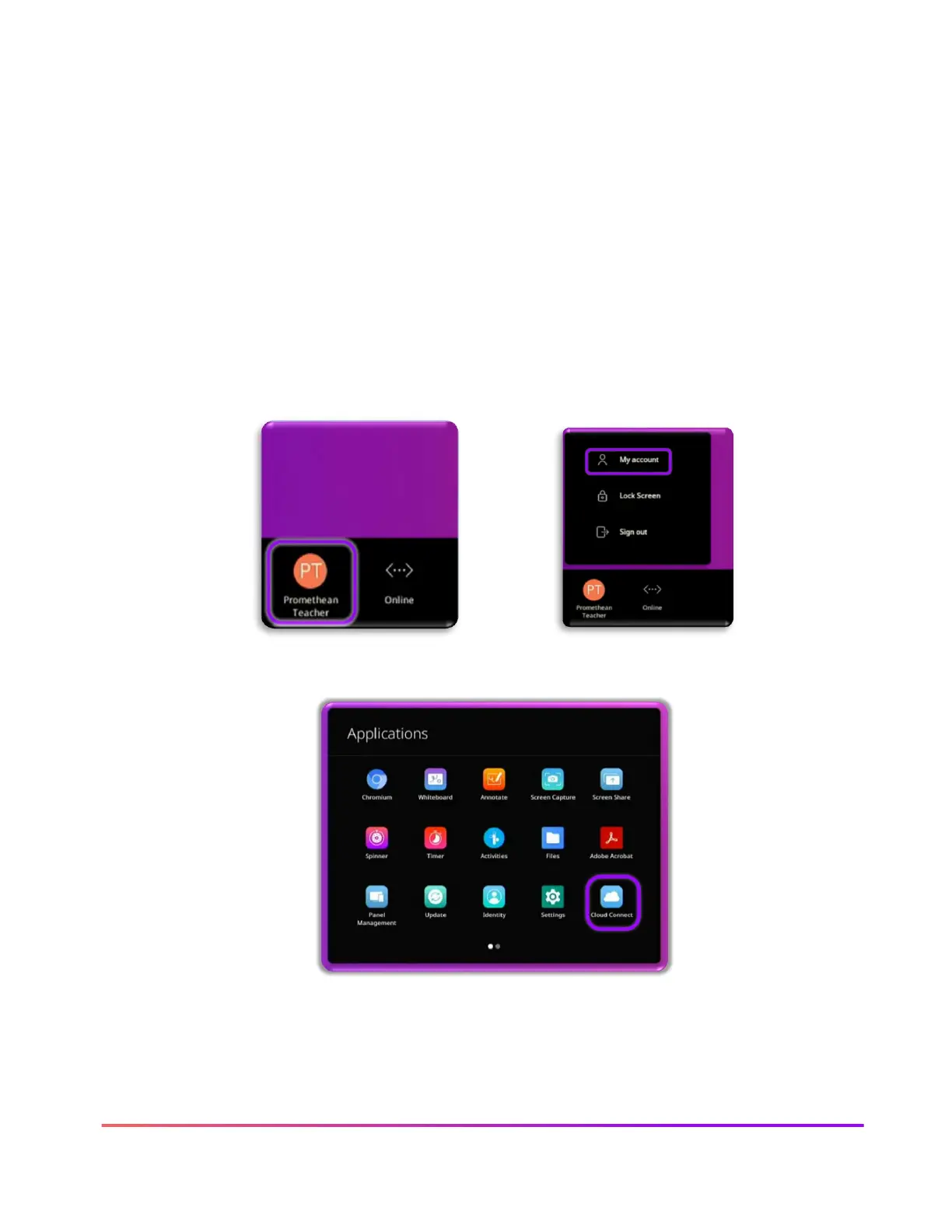

Access Cloud Connect either through the My account in your User Profile Menu or through the
Cloud Connect app in the Applications Locker.

promethean ActivPanel 9 Specifications

General

Panel type	TFT
Working area	1429 x 804 mm
Response time	8 ms
Display diagonal	65 \
Surface material	Tempered glass
Touch resolution	32768 x 32768 pixels
Touch technology	Multi-touch
Anti-glare screen	Always gives an optimal view, even in direct sunlight.
Display brightness	400 cd/m²
Maximum refresh rate	60 Hz
LED backlighting type	Direct-LED
Contrast ratio (dynamic)	5000:1
Contrast ratio (typical)	1200:1
Touch system response rate	200 fps
Touch system response time	10 ms
Number of simultaneous touchpoints	20
Certification	CE, FCC, IC, UL, CUL, CB, RCM, Energy Star
Product color	Black
Panel mounting interface	600 x 400 mm
RAM capacity	4 GB
Graphics card	ARM Mali-G71
Processor cores	4
Graphics card family	ARM
Processor architecture	ARM Cortex-A73
Maximum internal memory	32 GB
Operating system installed	ActivPanel OS
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
Linux operating systems supported	Ubuntu 20.04 LTS
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1
Cables included	AC, HDMI, USB Type-A to USB Type-B, USB Type-C
Stylus pen type	Passive
Bundled software	ActivInspire® Professional Single User
Speaker power	15 W
Built-in subwoofer	No
Number of built-in speakers	2
USB connector type	USB Type-A, USB Type-B, USB Type-C
DisplayPort version	1.2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Microphone connectivity	3.5 mm
HDMI output ports quantity	1
Bluetooth version	5.0
Ethernet LAN data rates	10, 100, 1000 Mbit/s
AC input voltage	100 - 240 V
Power consumption (standby)	0.5 W
Storage temperature (T-T)	20 - 80 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	20 - 90 %
Operating relative humidity (H-H)	-15 - 55 %
Package depth	215 mm
Package width	1653 mm
Package height	1027 mm
Package weight	58600 g

Weight and Dimensions

Depth	113 mm
Width	1509 mm
Height	946 mm
Weight	43200 g
