promethean ActivPanel 9 User Manual

54 ActivPanel 9 User Guide 06/22

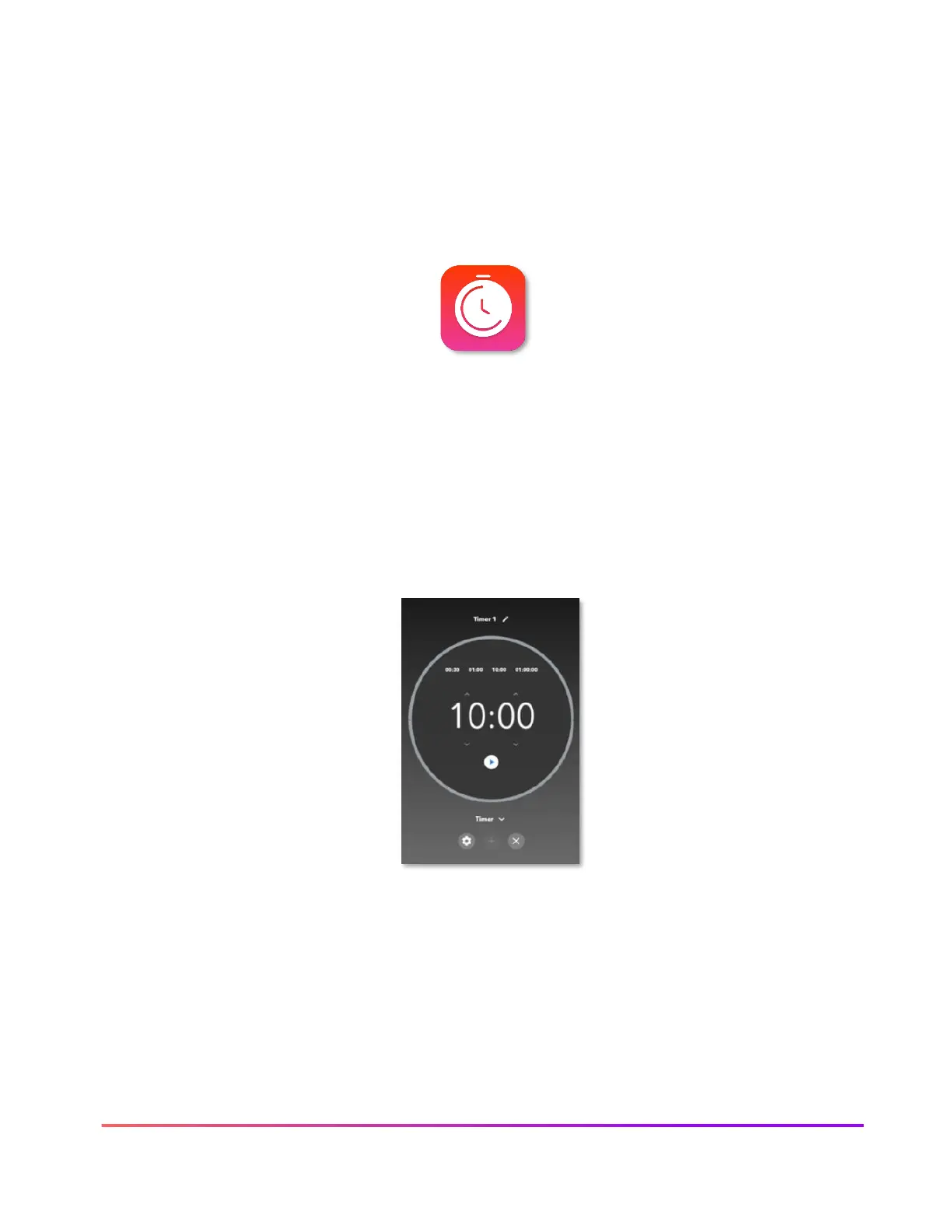

Promethean Timer App
The Promethean Timer App is perfect for managing activities, assessments, and more within
your classroom.
To access, bring up the Menu, and tap Applications, the Applications locker will open.
Select Timer.
The Timer app opens. There are three modes: Clock, Timer, and Stopwatch. Tap whichever
title is currently displaying to toggle between the three modes. Tap the gear to access more
options in any mode.
Within each mode exists two viewing options: full screen and floating. Tap the
Expand/Collapse arrows to toggle between full screen and floating.
Within the Timer mode, choose between presets or use the up and down arrows to
customize your own Timer. Press the Start button to initiate. Use the Pause and Reset
buttons as needed.
Tap the plus sign to create a new Clock, Timer, or Stopwatch. You can create and use any
combination of up to four at the same time. This applies to both full screen and floating
modes. From within full screen mode, tap the pencil to edit the Clock, Timer, or Stopwatch
name.
Tap the X to close each Clock, Timer, or Stopwatch.

promethean ActivPanel 9 Specifications

General

Panel type	TFT
Working area	1429 x 804 mm
Response time	8 ms
Display diagonal	65 \
Surface material	Tempered glass
Touch resolution	32768 x 32768 pixels
Touch technology	Multi-touch
Anti-glare screen	Always gives an optimal view, even in direct sunlight.
Display brightness	400 cd/m²
Maximum refresh rate	60 Hz
LED backlighting type	Direct-LED
Contrast ratio (dynamic)	5000:1
Contrast ratio (typical)	1200:1
Touch system response rate	200 fps
Touch system response time	10 ms
Number of simultaneous touchpoints	20
Certification	CE, FCC, IC, UL, CUL, CB, RCM, Energy Star
Product color	Black
Panel mounting interface	600 x 400 mm
RAM capacity	4 GB
Graphics card	ARM Mali-G71
Processor cores	4
Graphics card family	ARM
Processor architecture	ARM Cortex-A73
Maximum internal memory	32 GB
Operating system installed	ActivPanel OS
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
Linux operating systems supported	Ubuntu 20.04 LTS
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1
Cables included	AC, HDMI, USB Type-A to USB Type-B, USB Type-C
Stylus pen type	Passive
Bundled software	ActivInspire® Professional Single User
Speaker power	15 W
Built-in subwoofer	No
Number of built-in speakers	2
USB connector type	USB Type-A, USB Type-B, USB Type-C
DisplayPort version	1.2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Microphone connectivity	3.5 mm
HDMI output ports quantity	1
Bluetooth version	5.0
Ethernet LAN data rates	10, 100, 1000 Mbit/s
AC input voltage	100 - 240 V
Power consumption (standby)	0.5 W
Storage temperature (T-T)	20 - 80 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	20 - 90 %
Operating relative humidity (H-H)	-15 - 55 %
Package depth	215 mm
Package width	1653 mm
Package height	1027 mm
Package weight	58600 g

Weight and Dimensions

Depth	113 mm
Width	1509 mm
Height	946 mm
Weight	43200 g
