ActivPanel User Guide 55
Appendix
If you will be using the interactive pen display in an installation that requires the use of an alternate
mounting platform, you can remove the adjustable stand from the unit and mount the pen display onto
any mount arm or stand conforming to the VESA standard.
For model ActivPanel, the mount arm or stand must conform to the VESA 100 mm standard.
Mounting screws that are 4 mm wide with a 0.7 mm pitch (M4 Regular), with a screw clearance depth of
15 mm are required. Exceeding the clearance depth of 15 mm will damage the internal components of the
pen display.

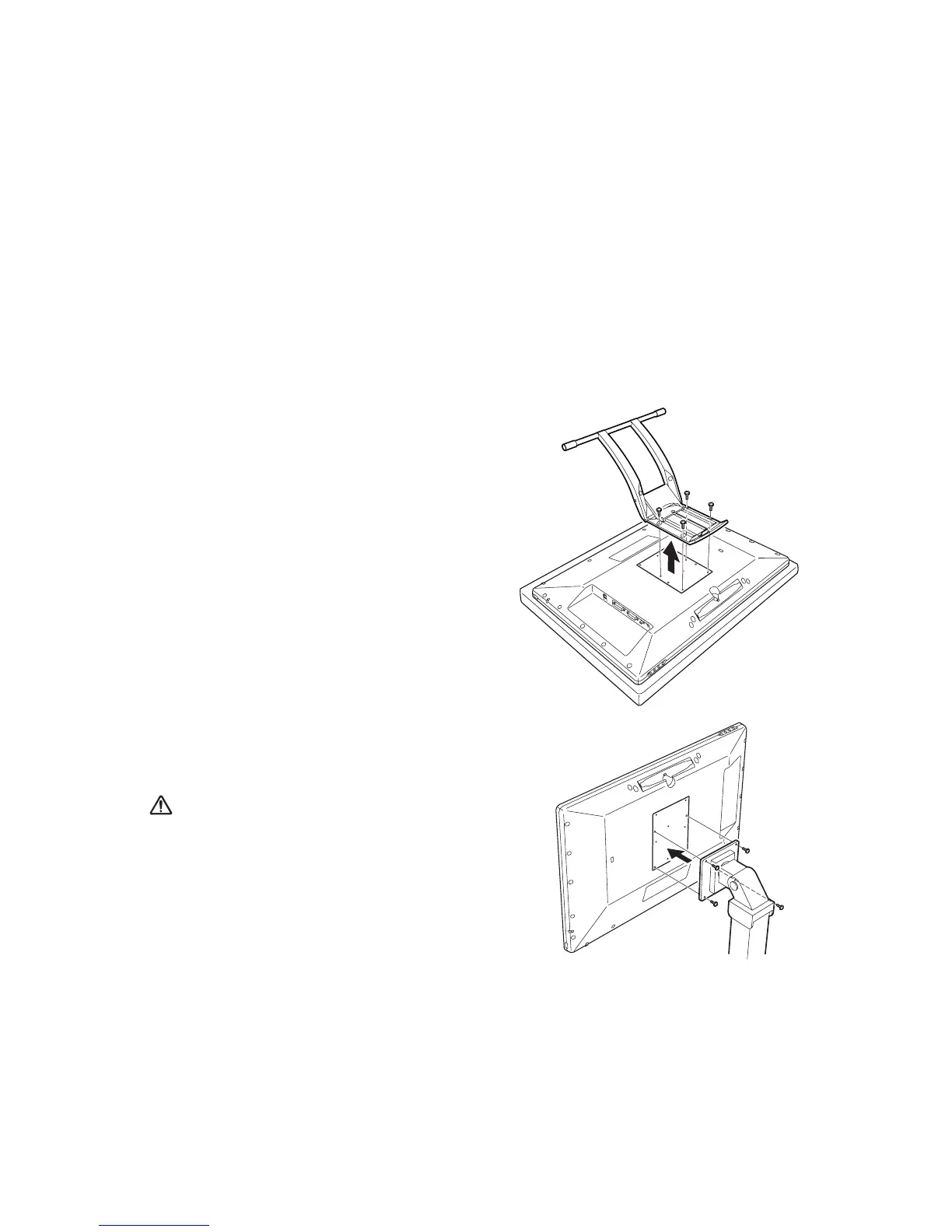

To remove the adjustable stand and attach the pen
display to a different mounting platform:
1. Turn off your computer and power off the pen
display. Then disconnect all cables from between
the unit and your computer.
2. Protect the display screen surface by spreading
a soft cloth onto a flat table and placing the pen
display face down on the cloth.
3. Remove the four screws and lift the adjustable
stand assembly away from the body of the unit.
4. Using the appropriate screws for your mounting
platform, firmly attach the pen display to the
alternate mounting platform.
5. Refer to the Installation instructions and reattach
the cabling.
Caution:
When attaching the pen display onto an
alternate mounting platform, be sure to follow all
instructions in the documentation supplied by the
platform manufacturer. If improperly installed, the
unit could fall, resulting in damage to the unit or
physical injury.
