ProMinent Beta b BT4b - Exploded Drawings and Ordering Information; Exploded Drawings

19 Exploded drawings and ordering information
19.1
Exploded drawings
1
5
1
8
6

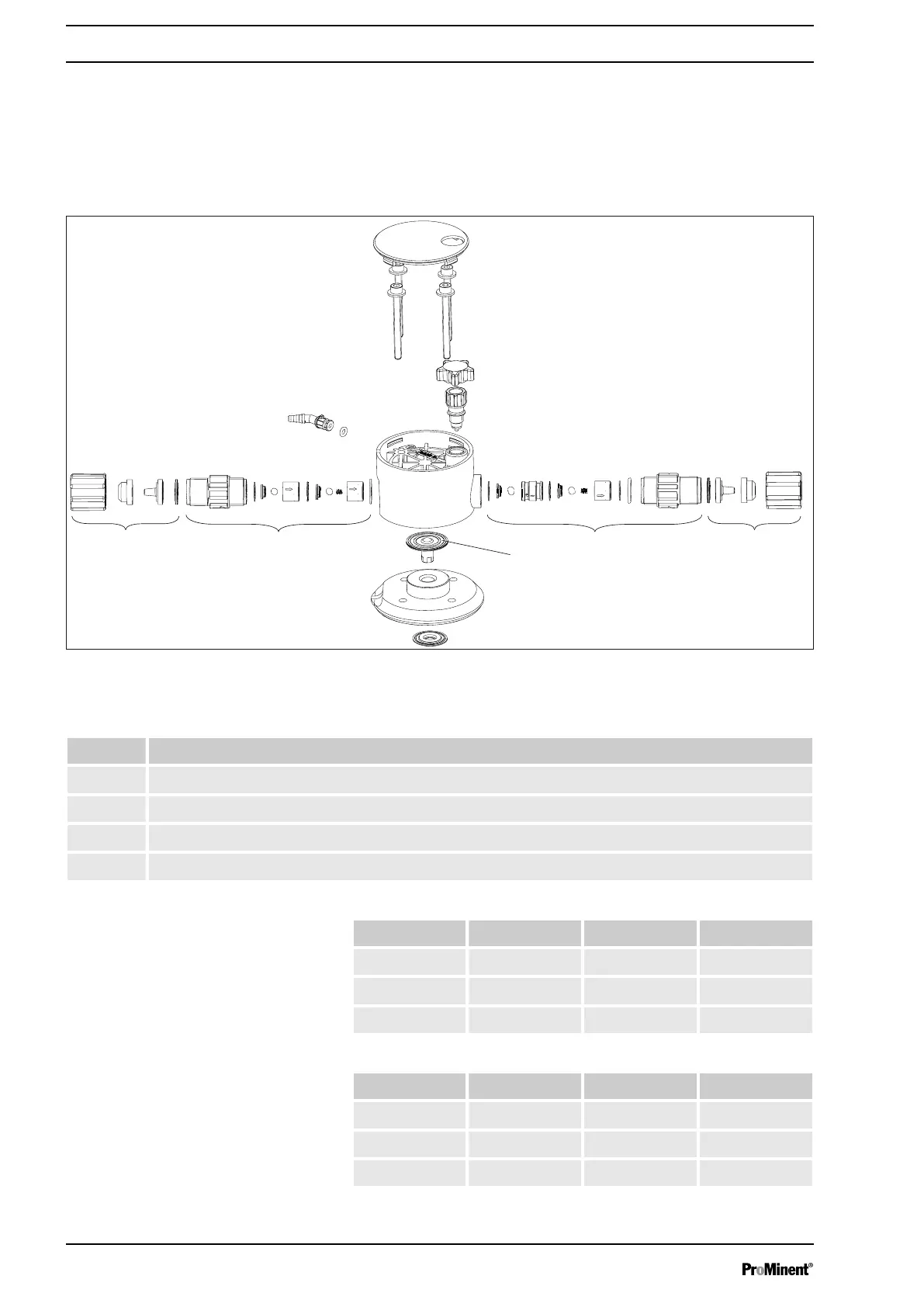

P_BE_0038_SW
Fig. 32
Tab. 14: Spare parts for liquid end Beta b 1000 - 1604 PP_2
Pos. Description
1 Connector kit
5 Discharge valve
6 Diaphragm
8 Suction valve
PPE2 PPB2 PPT2
Liquid end 1002057 1002065 1035317
Spare parts kit 1001644 1001652 1023107
Diaphragm 1000244 1000244 1000244
PPE2 PPB2 PPT2
Liquid end 1002058 1002066 1035318
Spare parts kit 1001645 1001653 1023108
Diaphragm 1000245 1000245 1000245
Liquid end Beta b 1000 - 1604 PP_2
Liquid end Beta b 1000 PP_2
Liquid end Beta b 1601 PP_2
