ProMinent CONCEPTplus CNPb - Drawings: bleed valve, PP;NP

CONCEPT plus with bleed valve, PP and NP
85
E
132.5
80
92.5
6
29
31.5
108
10.5
56
34
A
B
D
C
12
P_CO_016_SW
Types A B C D E
0309-0213 79 112 90 178 176
1000-0704 76 110 70 162 170

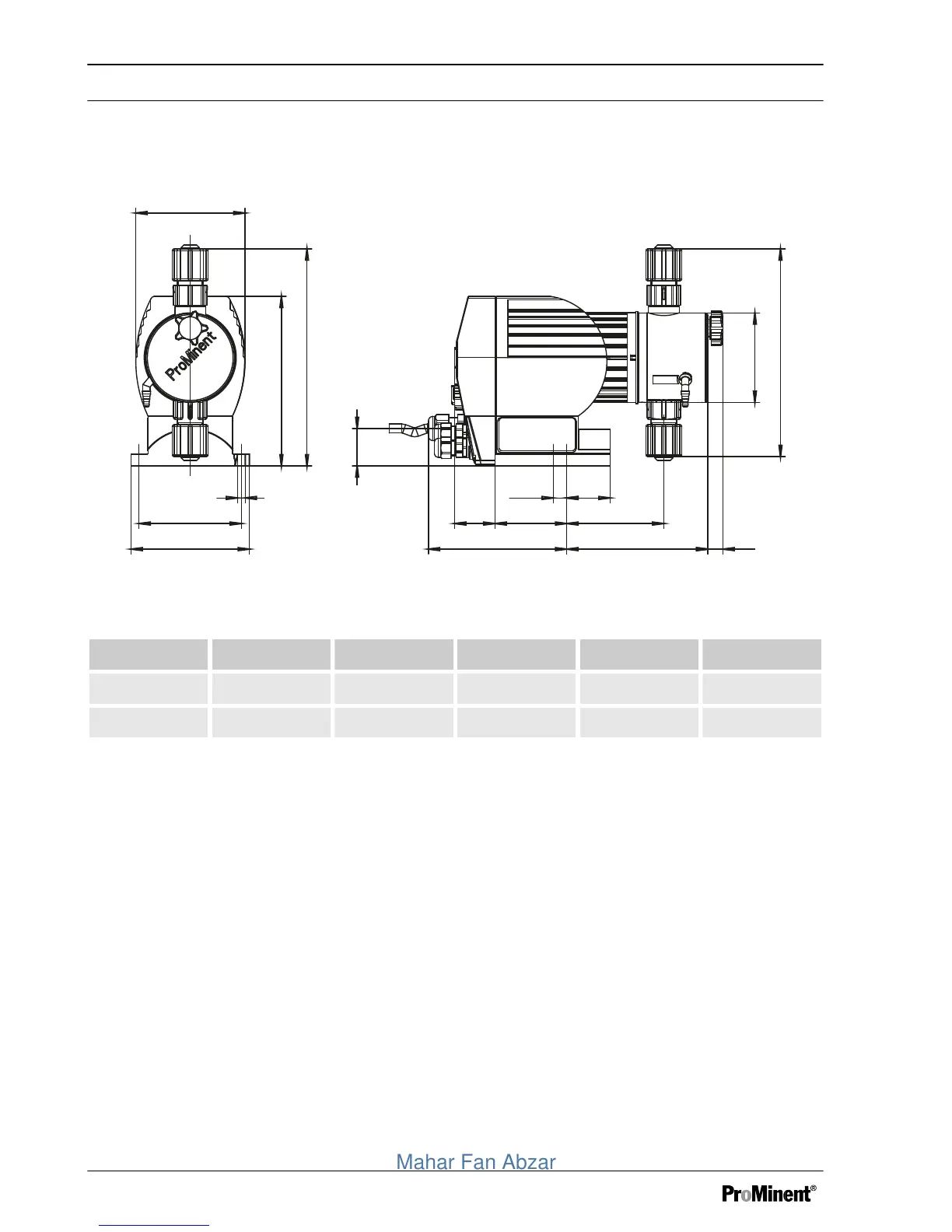

Dimensional drawings
