“Address”

set the PROFIBUS

that is set on your gamma/ L

or Sigma - see supplemental instructions delta with PROFIBUS

and click

[OK]

If this address is not displayed (already allocated),

enter a new address. Then enter this address on your

actual gamma/ L or Sigma, as well.

The Hardware Configurator will then connect the gamma/ L or

Sigma to the PROFIBUS

Master System (red box, right) via

the subnet, which the Hardware Configurator displays in this

manner:

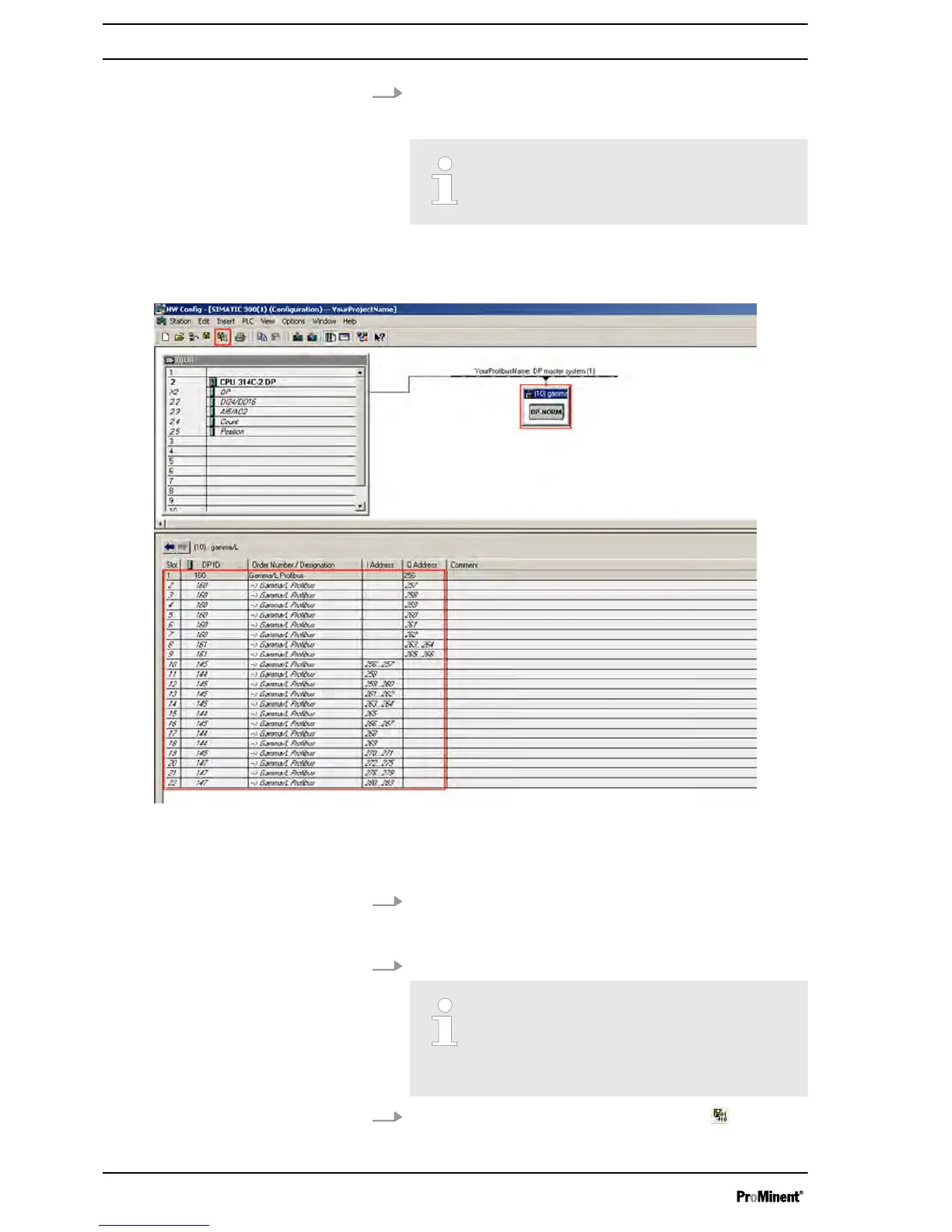

Fig. 12: Connection of the Master System to the delta via the subnet (graphic presentation in the Hardware Configurator)

In the lower window area (red box) the individual slots and their

I-addresses and O-addresses (input addresses and output

addresses) of the gamma/L or Sigma are displayed.

6. If necessary, adjust the I-address ranges and O-address ranges. To

do this double click on the appropriate row.

A window will open.

7. Here, enter the desired, changed address range and click

[OK]

The Hardware Configurator will supplement the

address range automatically.

The Hardware Configurator prevents the address from

being allocated twice. It handles I-addresses and O-

addresses separately.

Save the addresses via the special diskette symbol with “0110” in

the toolbar.

Integrating the device and the function block into your own project
