11. Now the complete addresses must still be entered on the input of
the function block - see 2nd red box. Then go back to the Hardware
Configurator (e.g. via the task bar on the lower edge):

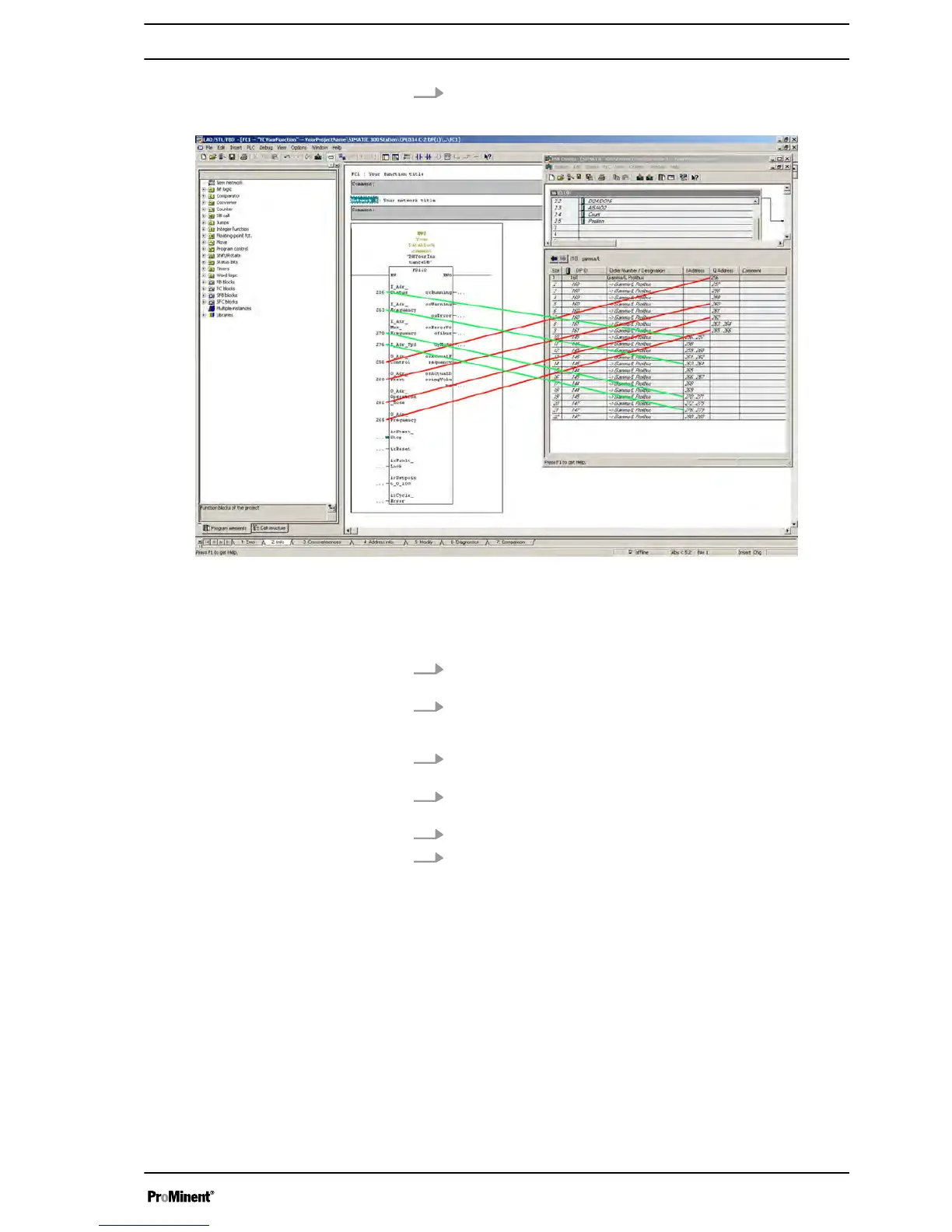

Fig. 27
ð
The green lines that in the screenshot show the relationship
between the input addresses (
“I_Adr_...”
-->
“I-address)”
). The
red arrows show the relationship between the output addresses
(
“O_Adr_...”
-->
“O-address)”
).
12. In the function block, click in front of the selected address name (left
in Fig. 27, bordered).
13. See the table “Relationship: Address names - slots of the function
block” for the associated slot of the appropriate function block, in
chapter 3.
14. In the Hardware Configurator, find the start address of the appro‐
priate address range for this slot.
15. Enter the start address in the function block and press the
[ENTER]
key.
16. Perform this step for all
“I_Adr_...”
and
“O_Adr_...”
.
17. To specify the remaining parameters, use your own operating con‐
cept for this pump and refer to the tables in chapter 3.
Integrating the device and the function block into your own project
27
