Features of the S2Ca metering pumps

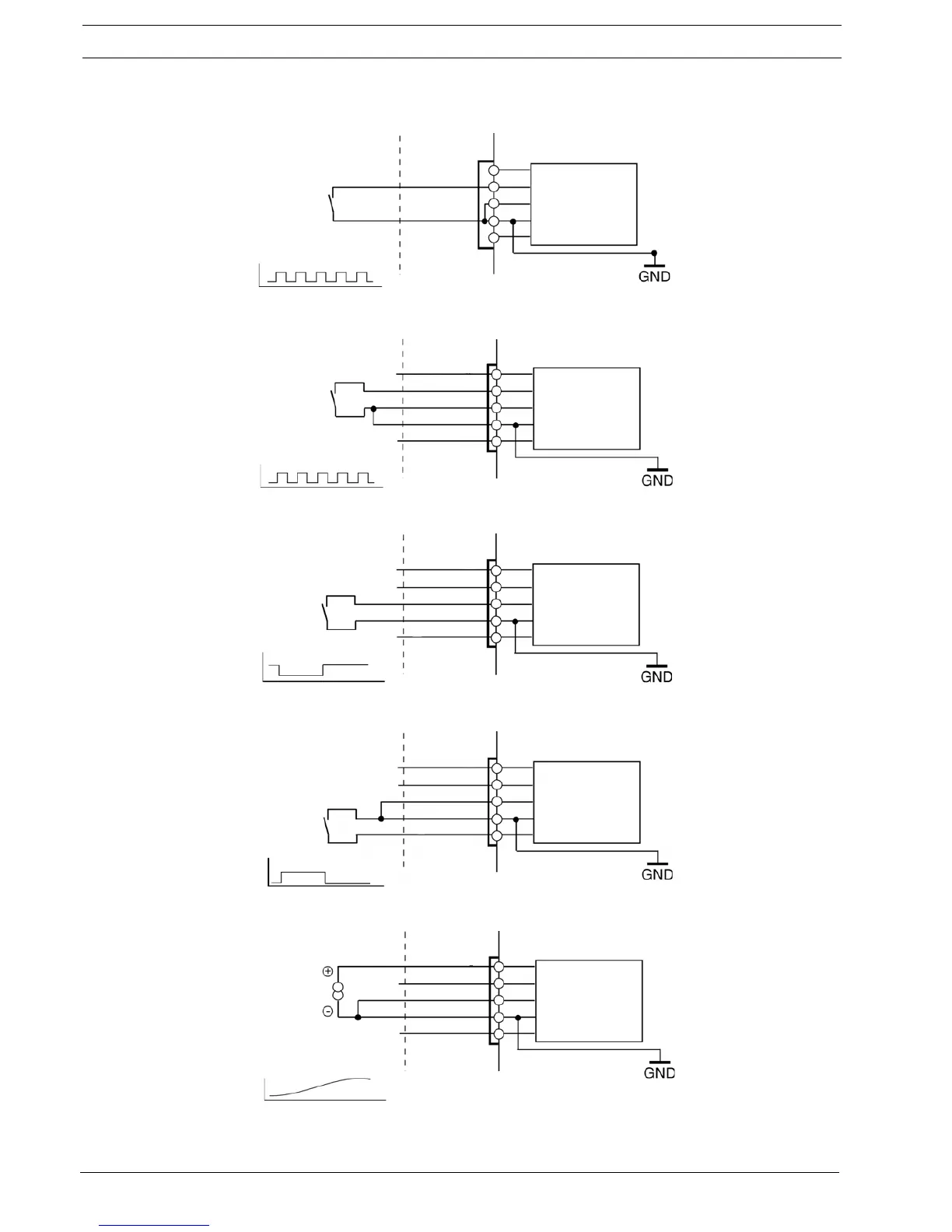

Circuit examples: universal signal cable
by customer Cable Pump, inside
“Pause“ function
Permanent contact,
e.g. from control room
“Auxiliary frequency“ function
“External analogue“ function
Permanent contact,
e.g. from control room
Analogue signal,
e.g. from magnetic inductive
flow meter
0/4-20 mA
External
activation
External
activation
3 blue/analogue
2 white/contact
1 brown/pause
4 black/GND
5 grey/auxiliary
3 blue/analogue
2 white/contact
1 brown/pause
4 black/GND
5 grey/auxiliary
3 blue/analogue
2 white/contact
1 brown/pause
4 black/GND
5 grey/auxiliary
Pulse rate,
e.g. contact water meter
External
activation
3 blue/analogue
2 white/contact
1 brown/pause
4 black/GND
5 grey/auxiliary
“External contact“ function
(ProMinent
®
universal signal cable)
five-core
Pulse rate,
e.g. contact water meter
External
activation
2 white/contact
4 brown/GND
“External contact“ function
(ProMinent
®
external/contact cable)
two-core
External
activation

ProMinent S2Ba Specifications

General

Protection class	IP 65
Diaphragm Material	PTFE
Stroke length	Adjustable
Power supply	230 V, 50/60 Hz
Max Pressure	20 bar
Materials	PVDF, EPDM, Stainless Steel
