ProMinent S2Ba - Exploded Diagrams of Liquid Ends

Dulcodes UV-Desinfektionsanlage
Page 59
ProMinent
®

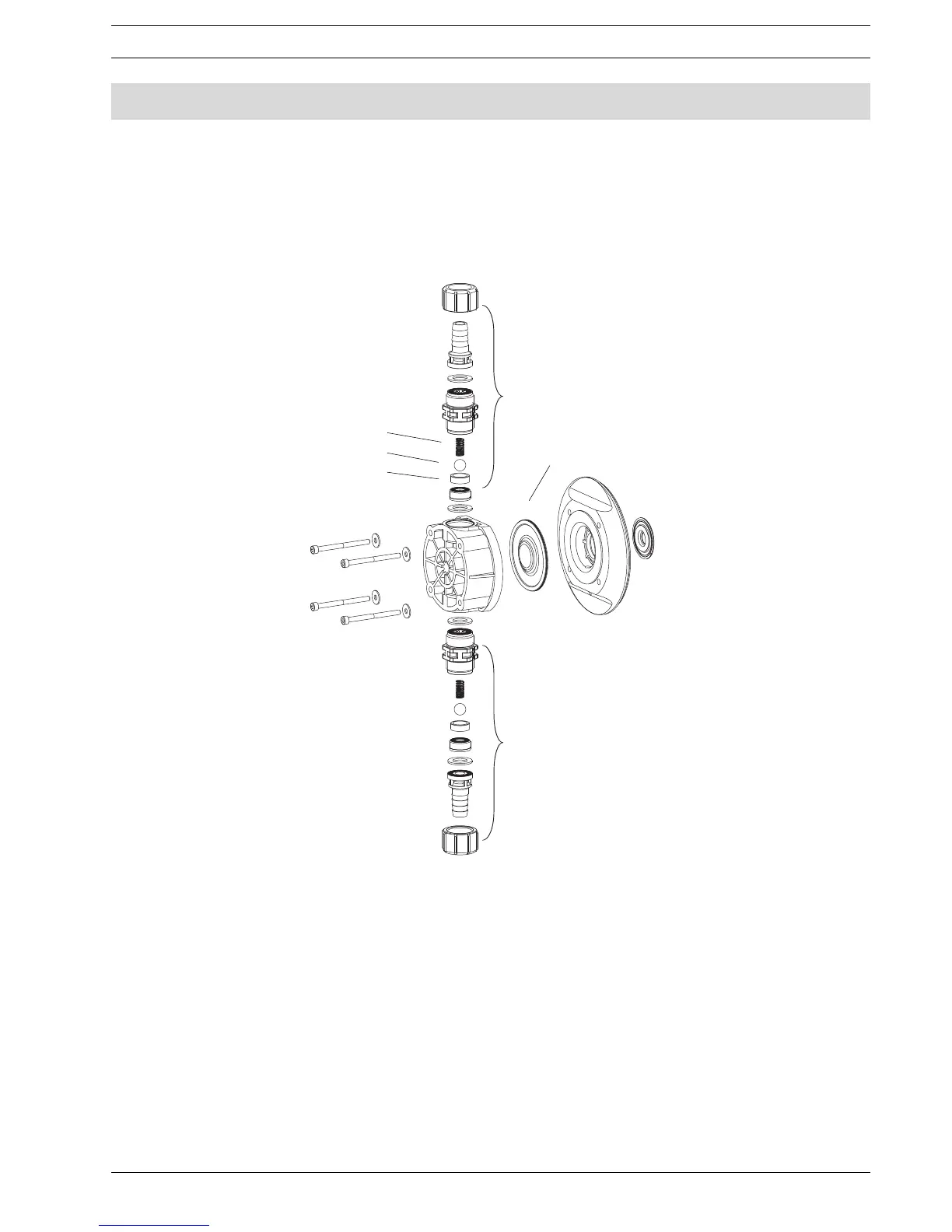

Exploded diagrams of liquid ends
Delivery unit Sigma/ 2 350-DN 25 PVT for identity code types: S2Ba/S2Ca 04350, 07120, 07220
Delivery unit Sigma/ 2 130-DN 15 PVT for identity code types: S2Ba/S2Ca 12050, 12090, 12130
Spare parts kit FM 350 PVT Order No. 740325
Spare parts kit FM 130 PVT Order No. 740324
* The listed items are constituent parts of the spare part kit.
** Special accessories (not included in spare part kit).
Subject to technical modifications.
Fig. 22
61_05-104_00_99-03
Valve spring *
Valve ball *
Ball seat *
Diaphragm FM 120 Order No. 1010285
Valve assy DN 15/PVT* Order No. 792517
Valve assy DN 15/PVT* Order No. 792517
