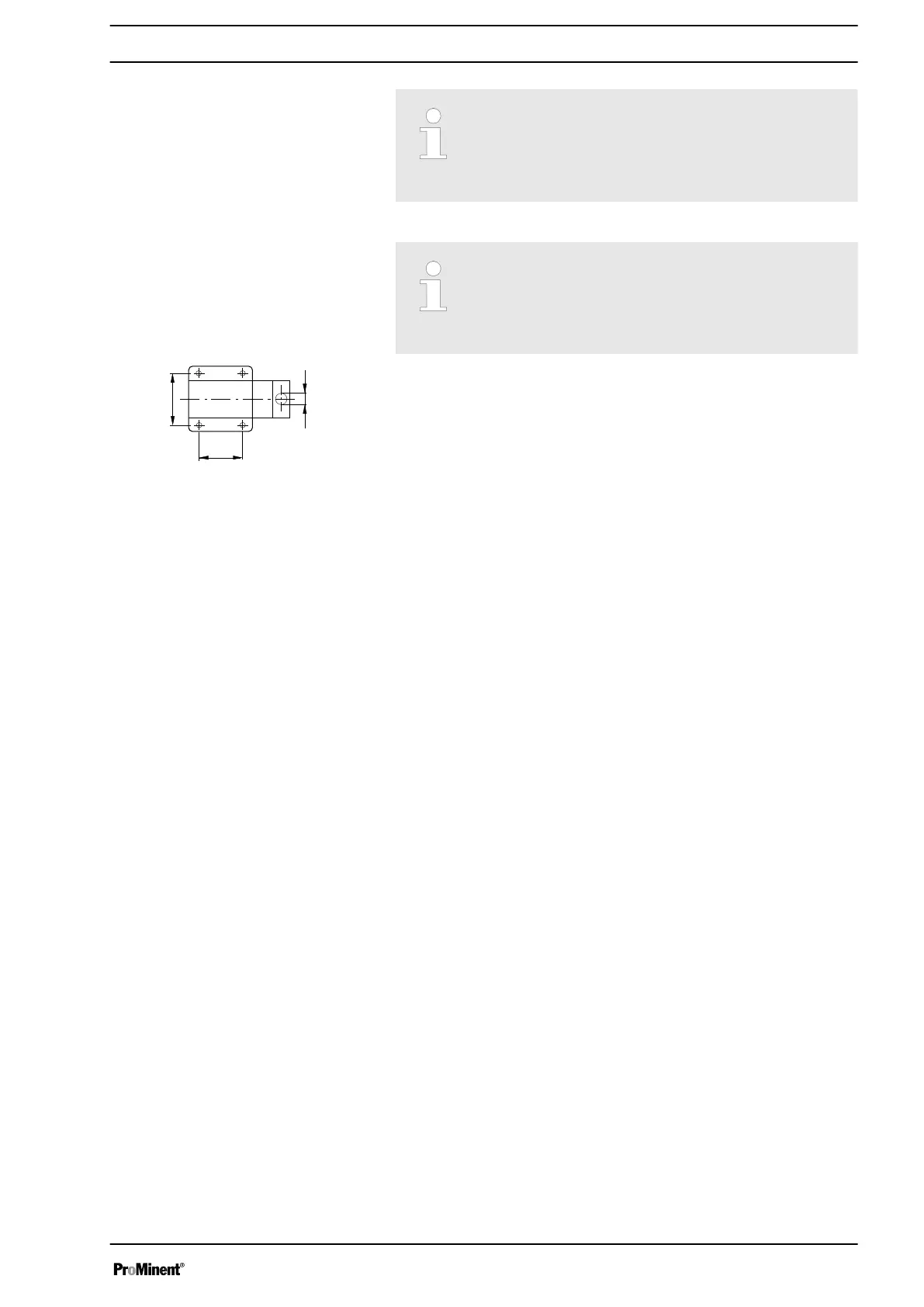

ProMinent Sigma/3 Basic S3Ba Series User Manual

Capacity too low
The liquid end valves cannot close correctly if they are not
upright.
– Ensure that the discharge valve is upright.
Capacity too low
Vibrations can disrupt the liquid end valves.
– Secure the metering pump so that no vibrations can
occur.
Take the dimensions (m) for the fastening holes from the appropriate
dimensional drawings or data sheets.
Fix the pump base to the base with suitable screws.
Liquid end alignment
Fastening
DNm
m
P_MOZ_0015_SW
Fig. 13
Assembly
17
