7.1 Basic installation notes
CAUTION!
Danger resulting from rupturing hydraulic components
Hydraulic components can rupture if the maximum permis‐
sible operating pressure is exceeded.
– Never allow the metering pump to run against a closed
shut-off device.
– With metering pumps without integral relief valve: Install
a relief valve in the discharge line.
CAUTION!
Hazardous feed chemicals can escape
With hazardous feed chemicals: Hazardous feed chemical
can leak out when using conventional bleeding procedures
with metering pumps.
– Install a bleed line with a return into the storage tank.
Shorten the return line so that it does not dip into the feed chemical
in the storage tank.

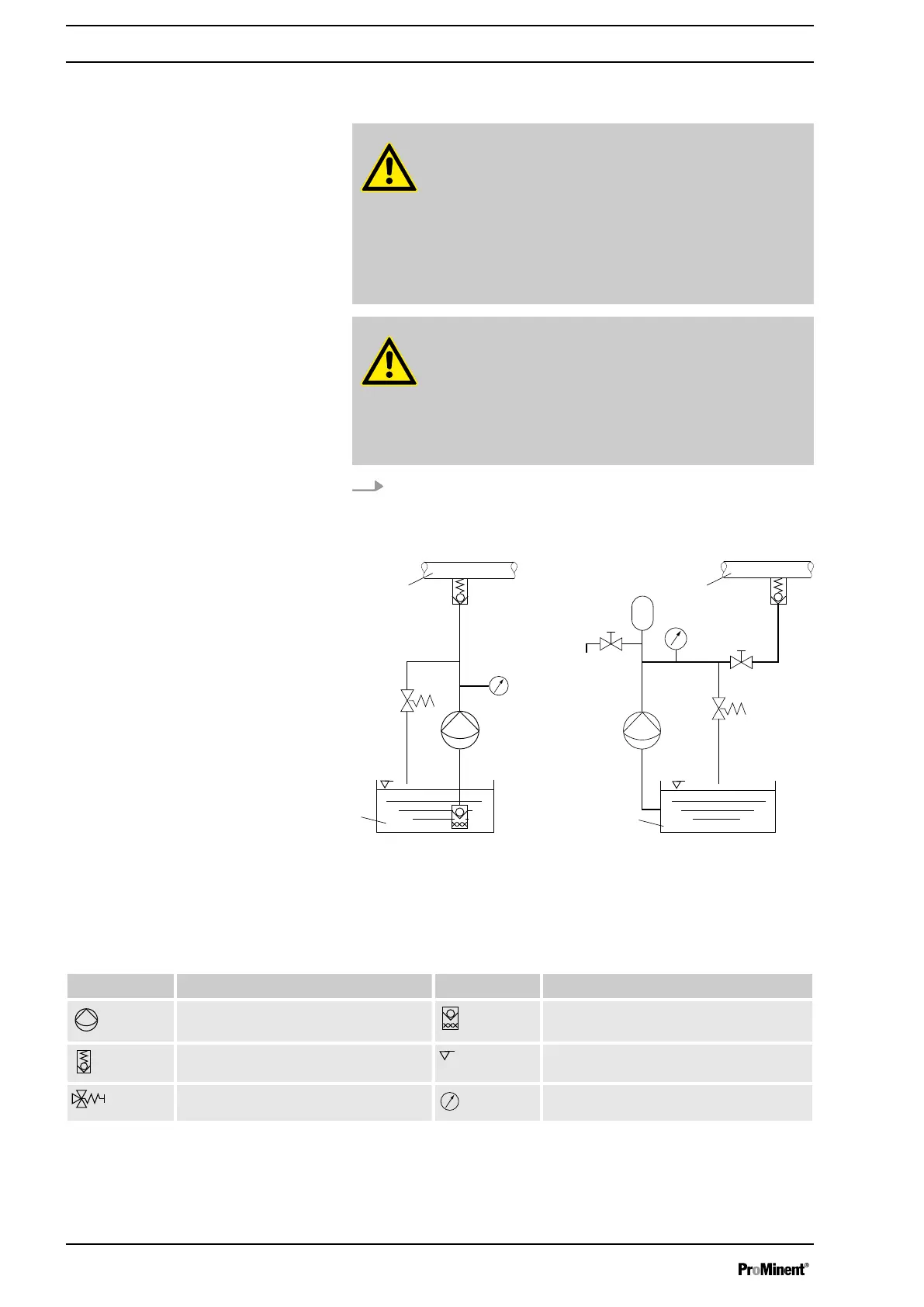

Fig. 17: (A) standard installation, (B) with pulsation damper
1 Main line
2 Storage tank
Symbol Explanation Symbol Explanation
Metering pump Foot valve with filter meshes
Injection valve Level switch
Multifunctional valve Manometer
Safety notes
Legend for hydraulic diagram
Installation, hydraulic
22
