When boot-up is nished, check the LEDs on the front panel to make sure the
system is functioning properly. See the table below.
LED Description
Power This is lit AMBER to indicate the system is powered on.
Error Status This will be lit RED if there is a critical problem with the
RAID (check RAID Status), or with the enclosure (system
fan, temperature or voltage issue, etc.).
When the system is healthy, it remains unlit.
Network
Link/Activity
One LED for each 1000BASE-T LAN port. These are lit
GREEN to indicate a valid link. A blinking GREEN LED
indicates activity on the port.
RAID Status This is lit GREEN when the RAID status is healthy. It will be
unlit if there is a problem with the RAID.
UID This will be lit BLUE when the system identication feature
is active. Otherwise is remains unlit.

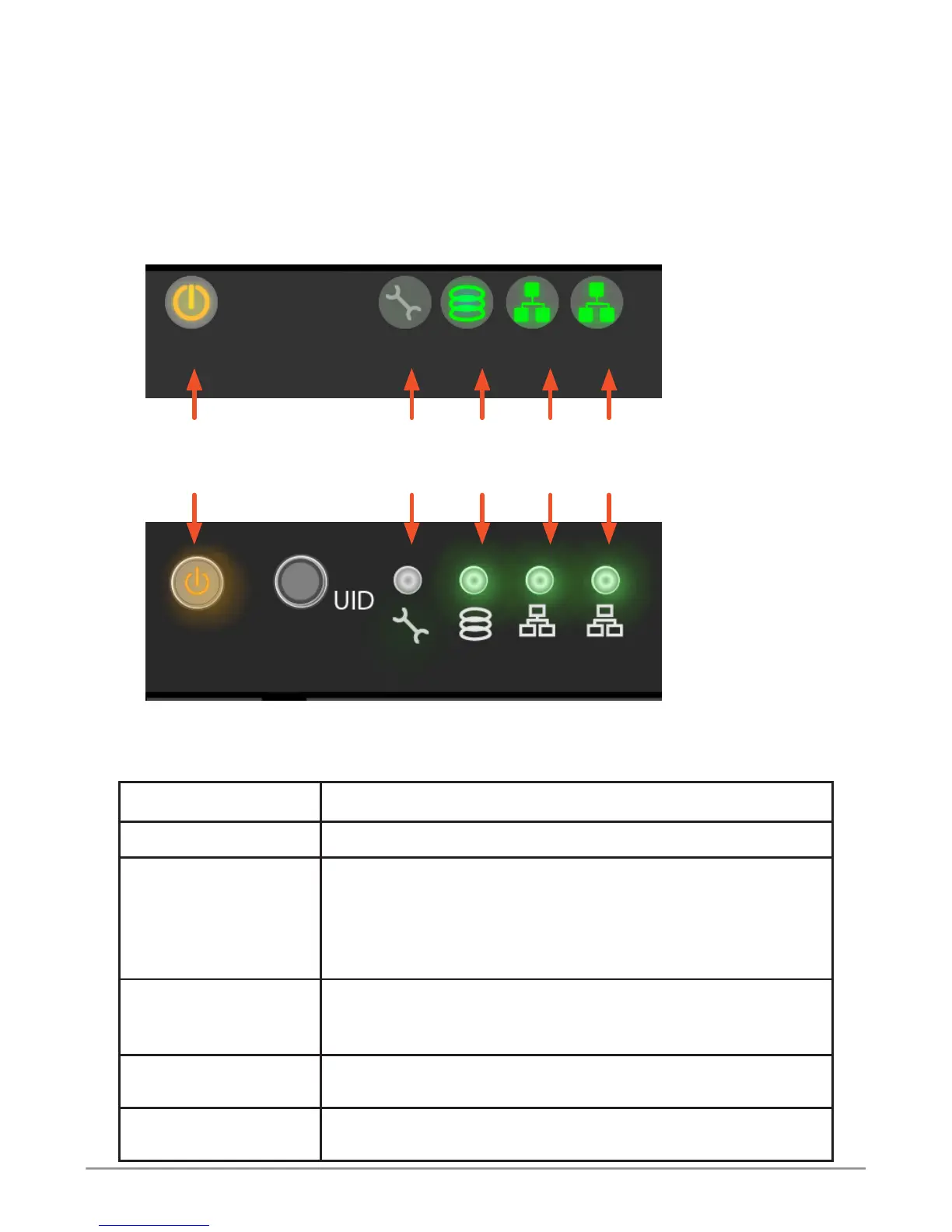

Power
LEDs viewed through windows on front bezel
Error
Status
Network
Link/Act
RAID
Status
