The Vess A6120 is shipped with a lockable front secure cover which must be
removed in order to access the hard disk drive carriers. Use the tubular key to
lock or unlock this cover.
The front panel features the power button, various LEDs, USB ports and the
tubular lock. See “Power On Vess A6120 system” on page 12 and
“Front Panel LEDs” on page 14 in this guide for more information.
No. Description
1 4 x 3.5" Hot-Swap HDD Trays (HDD0~HDD3)
2 2 x USB 2.0 Ports
3 Control Panel Buttons and LEDs
4 VGA Port

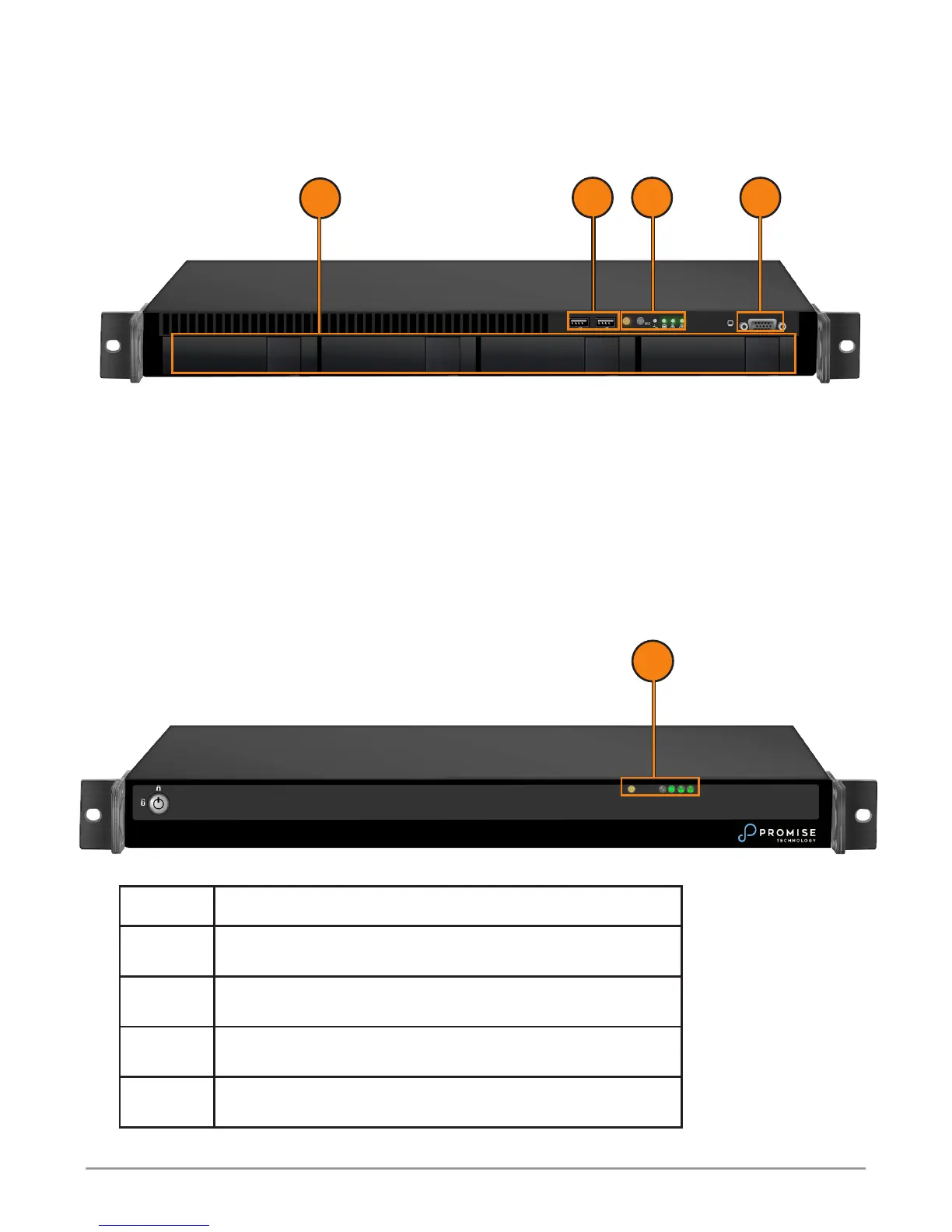

HDD0 HDD1 HDD2 HDD3
1
2 3 4
Front Panel without bezel cover
Front Panel with bezel cover
3
3
