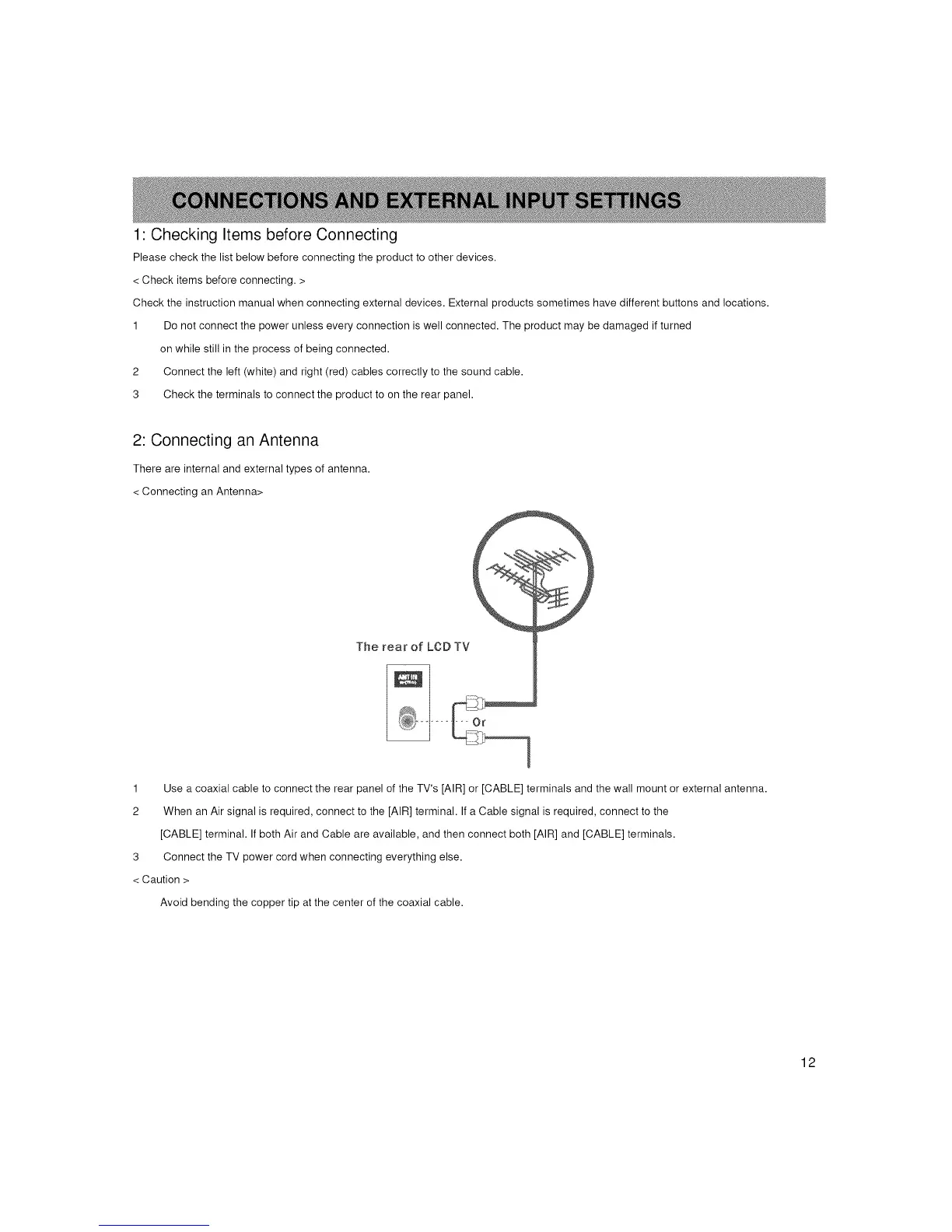

1: Checking Items before Connecting
Please check the list below before connecting the product to other devices.
< Check items before connecting. >
Check the instruction manual when connecting external devices. External products sometimes have different buttons and locations.
1 Do not connect the power unless every connection is well connected. The product may be damaged if turned
on while still in the process of being connected.
2 Connect the left (white) and right (red) cables correctly to the sound cable.
3 Check the terminals to connect the product to on the rear panel.
2: Connecting an Antenna
There are internal and external types of antenna.
< Connecting an Antenna>
The rear of LCDTV
1 Use a coaxial cable to connect the rear panel of the TV's [AIR] or [CABLE] terminals and the wall mount or external antenna.
2 When an Air signal is required, connect to the [AIR] terminal. If a Cable signal is required, connect to the
[CABLE] terminal. If both Air and Cable are available, and then connect both [AIR] and [CABLE] terminals.
3 Connect the TV power cord when connecting everything else.
< Caution >
Avoid bending the copper tip at the center of the coaxial cable.
12
