Page 14 AN-X4-AB-DHRIO (DH+) Nov 2022
Submitting the Configuration
Once you have entered all required parameters, click SUBMIT to write the configuration to the file
config.txt on the microSD card. The changes do not take effect until the AN-X restarts.

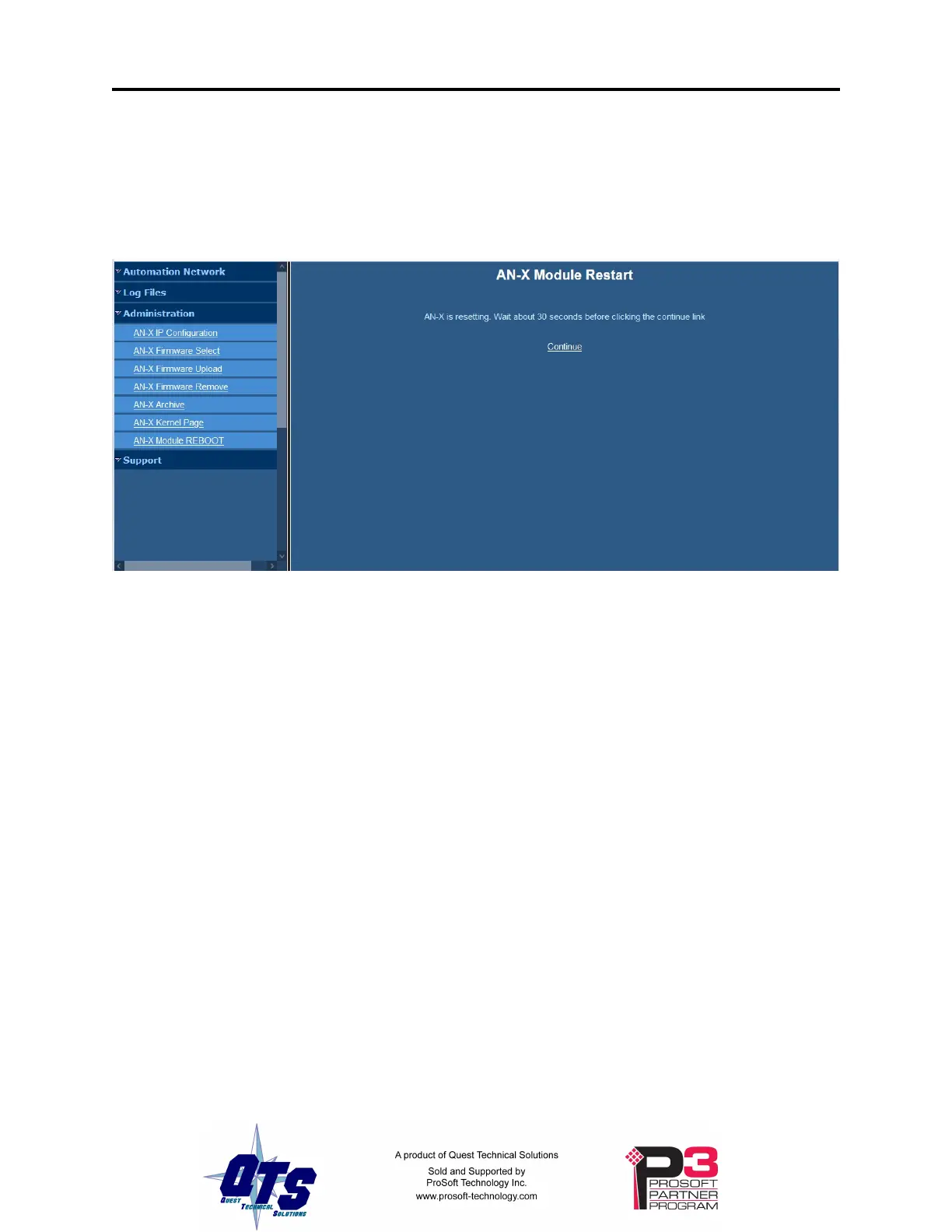

The following page appears when you click SUBMIT.
Wait until the AN-X has completely restarted, then click Continue.
If you have changed the IP address, enter the new IP address in the browser’s address field.
Reconfiguring an AN-X from an Unknown State
It sometimes happens that an AN-X has been previously configured with an IP address that causes it
to be inaccessible on the current Ethernet network or that the IP address is unknown.
Remove the microSD card and edit the file IPCfg\IPConfig.txt, using a text editor such as Windows
Notepad, to set the AN-X4 to the desired Ethernet configuration.
The Configuration File IPCfg\IPConfig.txt
The Ethernet configuration is stored in the file IPCfg\IPConfig.txt on the microSD card.
When you perform the Administration/AN-X Configuration command from the web interface, it
writes the results to that file.
Each line consists of a keyword followed by a colon and then a value.
Example:
IP: 192.168.1.12
Anything after a semicolon on a line is treated as a comment.
