Page 40 AN-X4-AB-DHRIO (DH+) Nov 2022

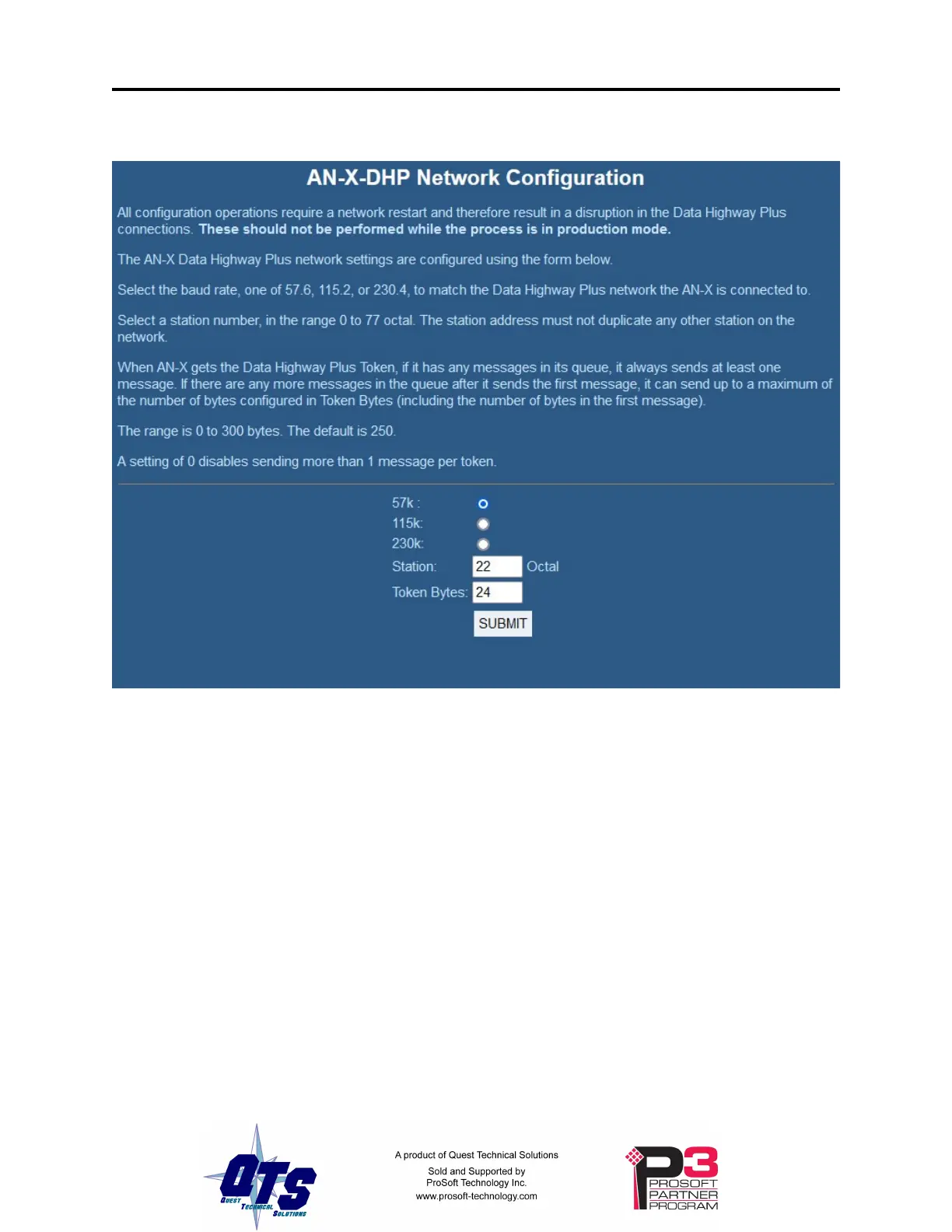

1. Select Automation Network/Configure DH+ Network to set the station number and baud
rate.
2. Select the baud rate to match the baud rate of the network
3. Enter the station number in the Station field. It can range from 0 to 77 octal. 0 is not
recommended as a Data Highway Plus station number.
4. Enter a value for Token Bytes.
5. Click the SUBMIT button to send the values to AN-X.
The default AN-X configuration is station 20 octal, baud rate 57.6 Kbaud, Token Bytes 250.
