AN-X4-AB-DHRIO (DH+) Page 47

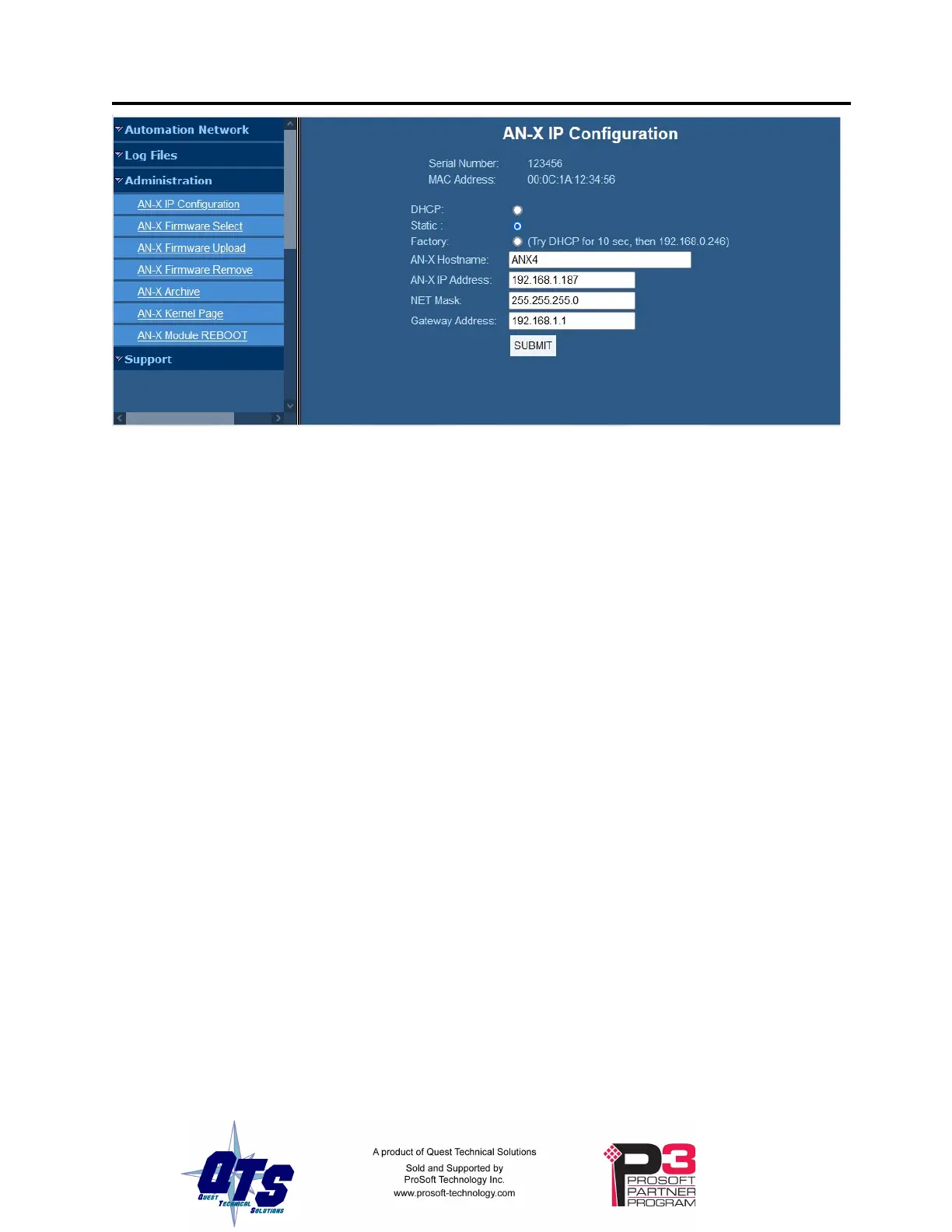

The top of the screen shows the serial number and MAC Address of the AN-X4 being configured.
To configure Ethernet on the AN-X, check DHCP, Static or Factory.
DHCP
If the AN-X4 finds a DHCP server on the network, it obtains an IP address and other network
parameters (netmask and default gateway) from the DHCP server.
To find the address assigned, you have to look at the DHCP server.
When you submit the changes, if the AN-X4 does not find a DHCP server, it reverts to the default
link local address 169.254.42.84 and repeatedly flashes the MS LED 3 times red followed by a
pause.
Static IP Address
If you select static IP address, enter:
• the IP address for the AN-X.
• the netmask for the AN-X
• the default gateway for your network.
You must enter a valid default gateway address even if there is no device at the gateway address
on the network.
Factory
Select Factory to return AN-X to its initial state as shipped. In Factory mode, it waits 10 seconds
for a DHCP server to assign it an IP address. If it fails to obtain an IP address, it reverts to a
static IP address of 192.168.0.246.
In Factory mode, AN-X cannot connect to the Data Highway Plus network.
If, after AN-X has reverted to the static address and a DHCP server comes online, AN-X obtains
an IP address from the DHCP server.
