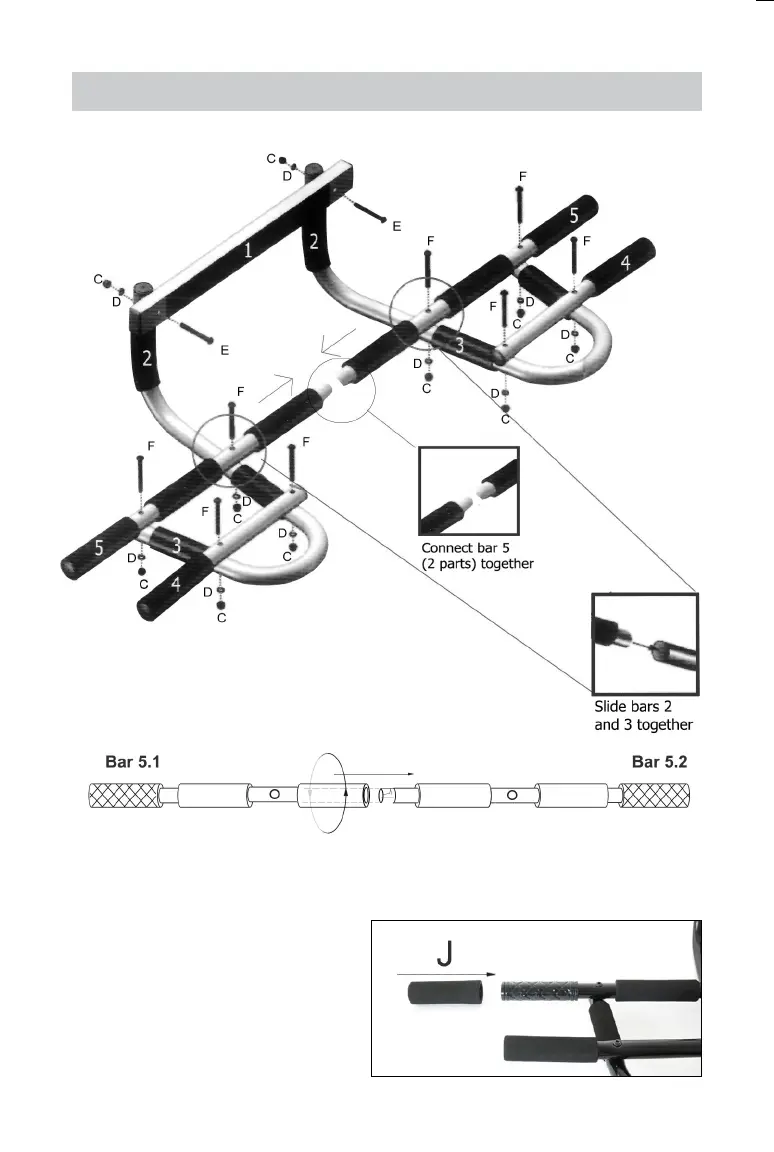

PROSOURCEFIT Multi-Grip Pull-Up Bar - Assembly Diagram

Connect Bar 5.1 and Bar 5.2 together by rotating clockwise.
The screw holes
MUST BE located at the same level.
If needed, slip on additional
Foam
Doorframe Protectors J to Bar 5
to protect frame/walls
ASSEMBLY DIAGRAM
