ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en
30

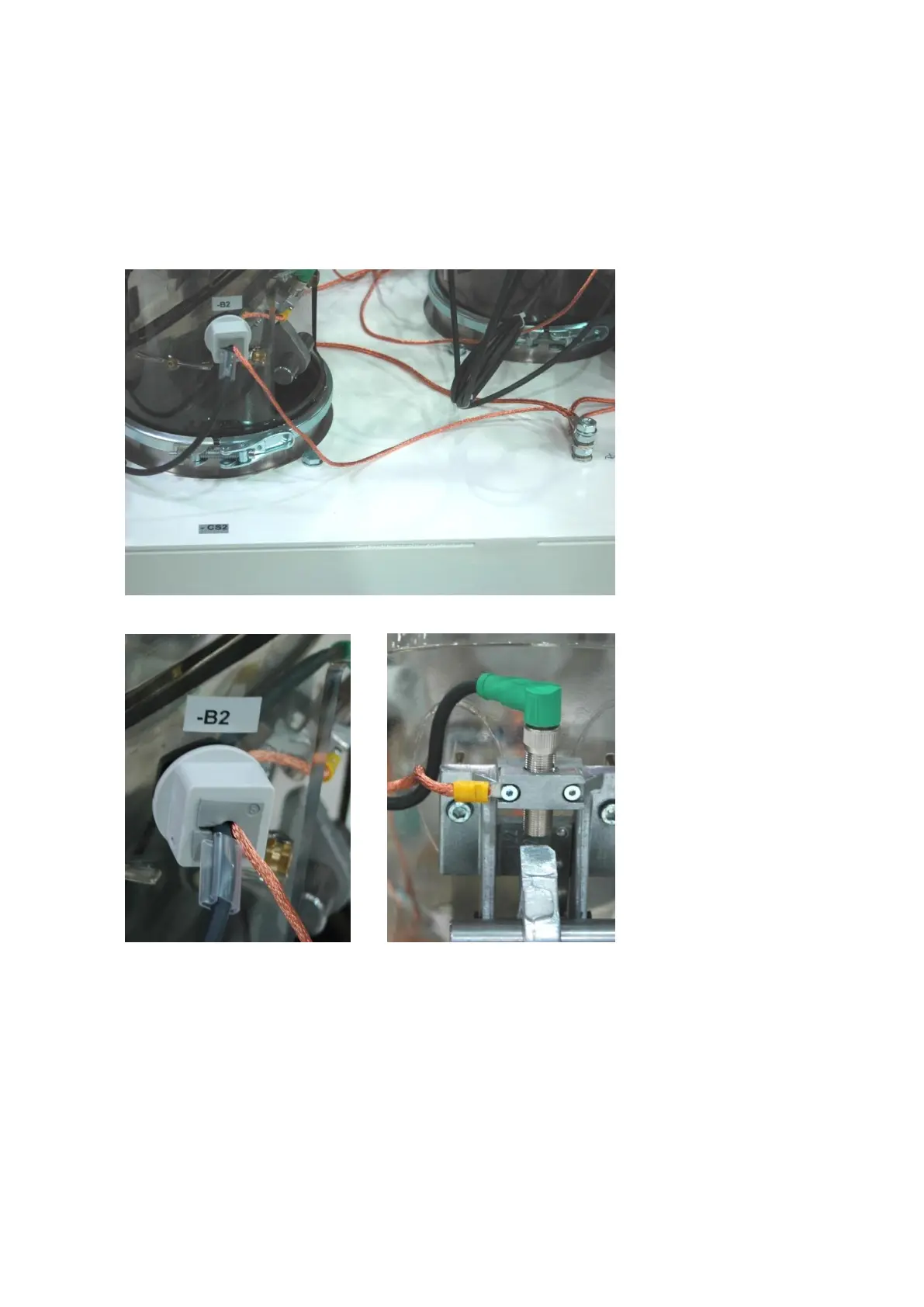

4.2.3 Earthing on a base plate / frame (example)
The earthing cables exiting the conveyor must be connected with a conductive surface or
components. These are, for example, platforms made of iron or steel or metal frames.
Ensure that: The metal surfaces being used as a base for earthing must be free from paint at
the connection point!
