4.2.2 Earthing the conveyor line

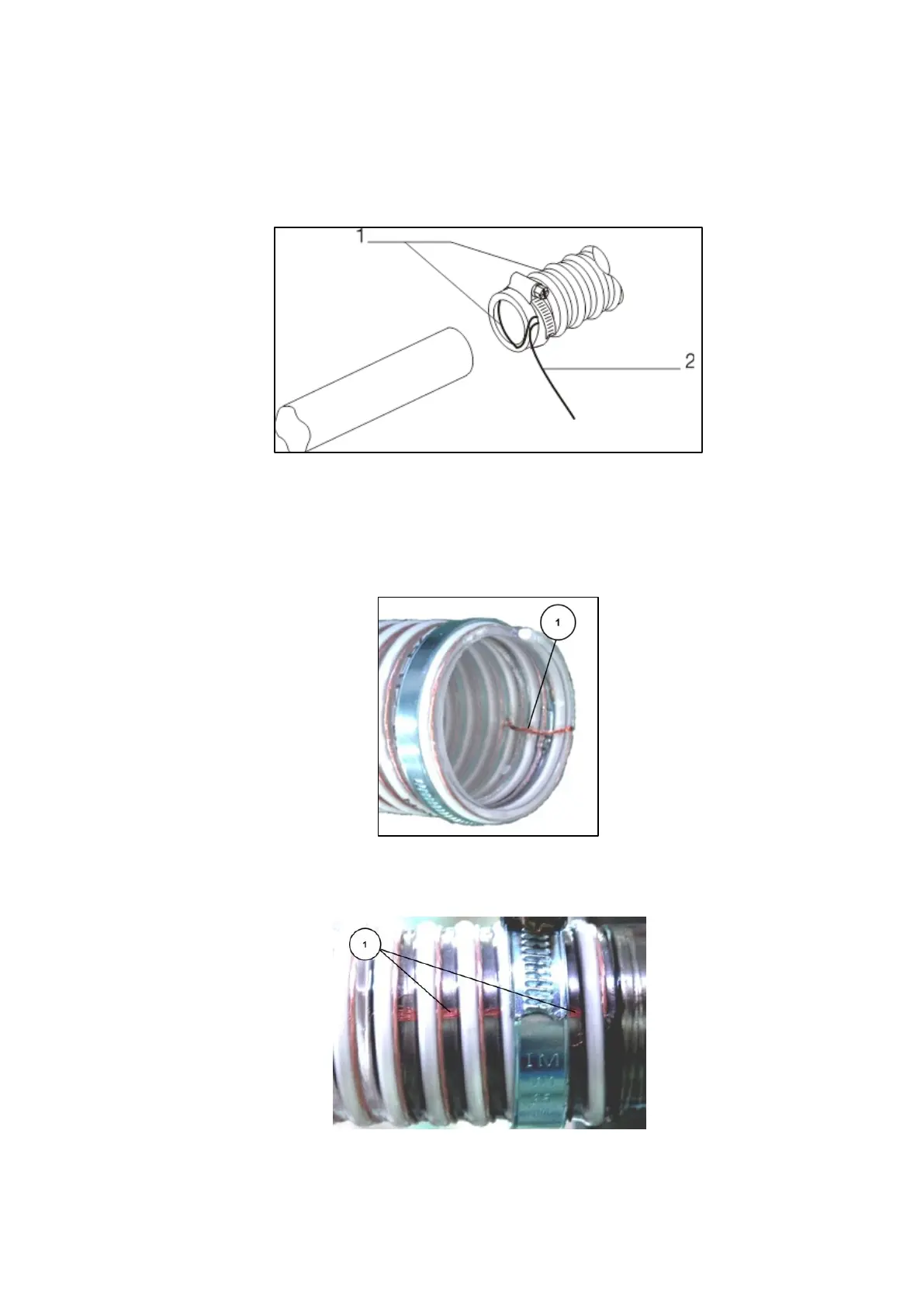

During assembly of the conveying hoses
Expose the insert on both ends of the conveying hose approx. 50 mm.
1 Conveying hose 2 Insert made of copper or steel
Using a PVC hose
1. Clamp the wires (1) in the hose (see photo)
2. Clamp the hose with a clamp on the tube (make sure that the wire (1) is fastened with the
clamp).
