ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en
69
9 Appendix
9.1 Setting the fill level sensor
Caution!
Overturning the potentiometer leads to damage
and /or destruction o the sensor. Adjust the
sensor in small increments until the ideal
setting is reached.
Depending on the design of the sensor the potentiometer could be located at another location.

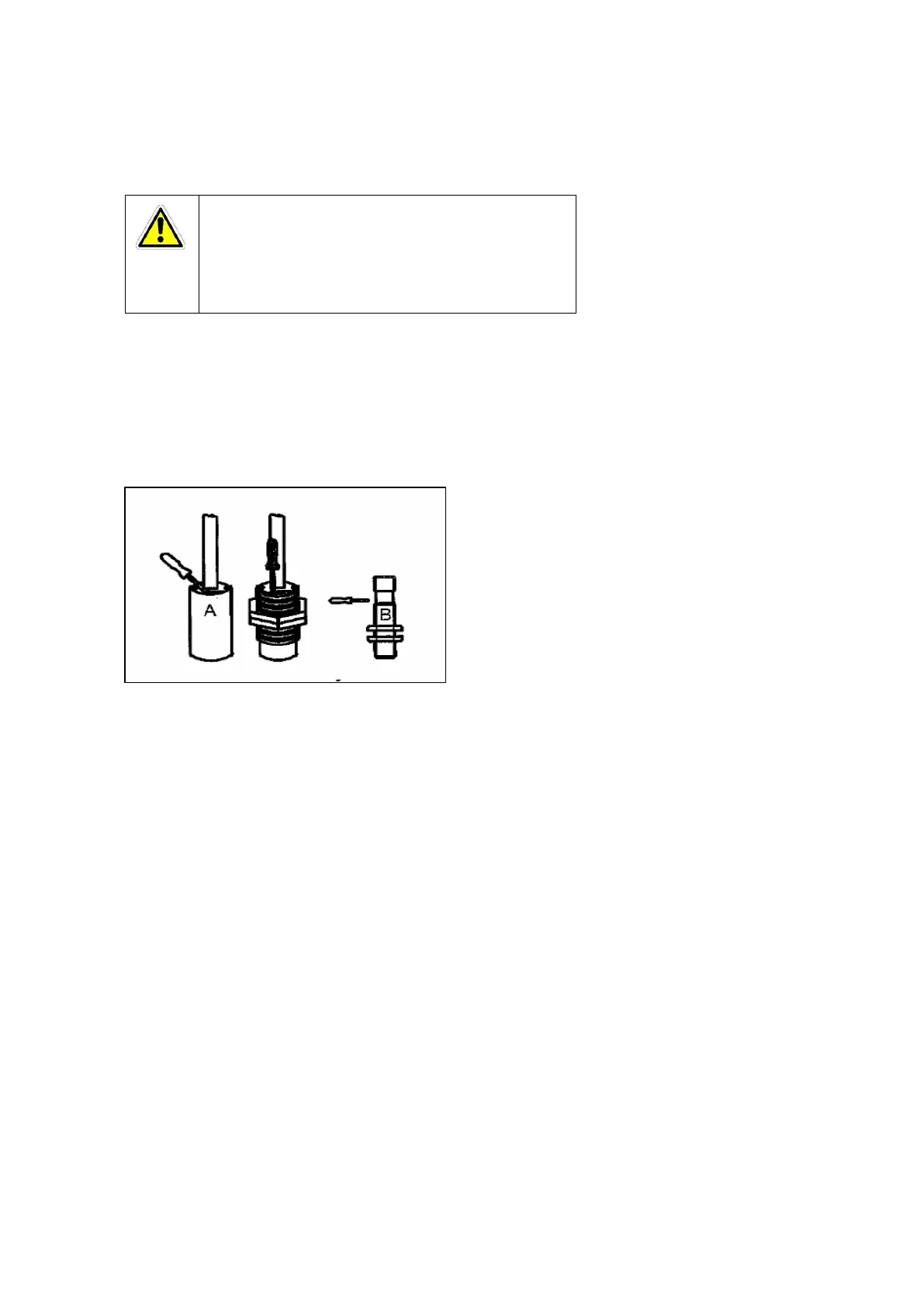

We differentiate adjustable sensors with the position of the potentiometer under a cover (A)
(d ≥ 30 mm) or a sealing screw or a plug design (B) with a partially side potentiometer without
cover.
Adjustment with a small screwdriver is done for both designs in the same manner:
Turn right: Increases sensitivity
Turn left: Decreases sensitivity
