ProTec Polymer Processing GmbH Foerdergeraet_FG201-FG206_BA_1v0_2018_en
46
7.4.2 Dosing attachment (optional instead of volume expansion)

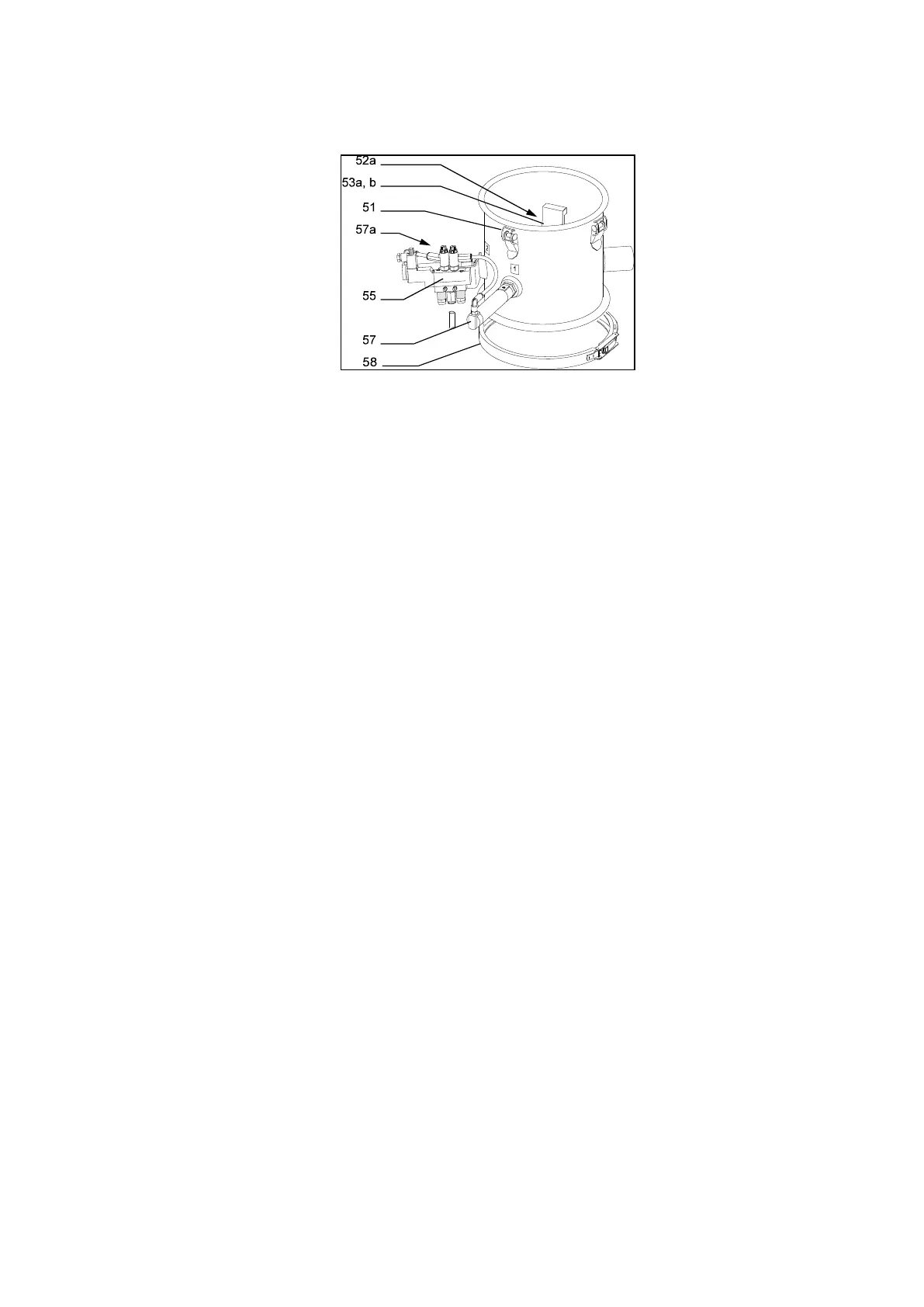

Dosing attachment, assy. (without locks)
51 Lock assy. 52a V-gasket
53a Support plate 53b Check valve
New set with:
Check valve holder 18 mm LO Check valve ø38-40 LO
Cylinder screw ISO 4762 M 4x 12 (2 pcs.)
55 Compressed air valve 57 Compressed air cylinder
58 Lever clamping ring
