Protectowire FiberSystem 8000 User Manual

Getting Started

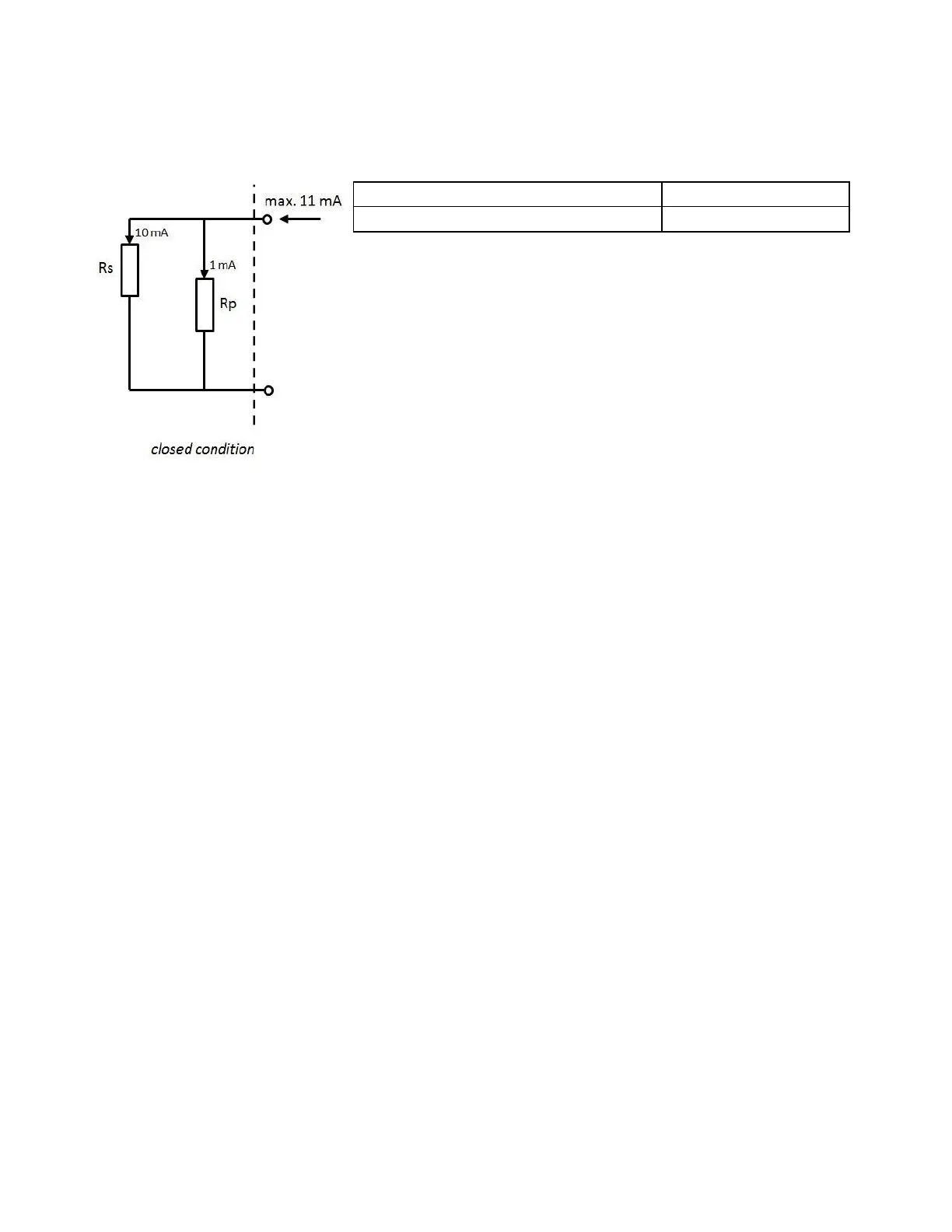

Equipped Rs = 1 kOhm and Rp = 10 kOhm:
Use the HD (High Density) IO connection set (part number
A1023A) or the HD relay connection set (part number A1024A) to
connect the 44 outputs (option -051) of the internal relay board.
The A1024A (HD relay connection set) consists of:
• 2 x HD Relay Cable SUB-D 44 pins
• 1 x Relay Cable SUB-D 9 pins
The A1023A (HD IO connection set) consists of:
•
•
•
•
2 x HD Relay Cable SUB -D 44 pins
2 x HD Connection Box with 44 contacts
1 x Relay Cable SUB-D 9 pins
1 x Connection Box with 9 contacts
You can mount the connection boxes on a standard c-rail. The
outputs contacts are numbered consecutively (1 to 44), with
relay outputs on each connector.
2
22
The Protectowire Company, Inc.
FIBERSYSTEM 8000 - Linear Heat
Series
Current range
Max. 11 mA DC
Power Dissipation per Relay
Max. 100 mW
