Protectowire FiberSystem 8000 User Manual

Getting Started
Input to reset alarms
The FIBERSYSTEM 8000 also provides 4 opto-coupled
inputs. The inputs are edge-sensitive and their polarity
(rising or falling edge) is
selectable by the user. The inputs can
alarms that have already been detected.
be
configured
to
reset
24
The Protectowire Company, Inc.
FIBERSYSTEM 8000 - Linear Heat
Series

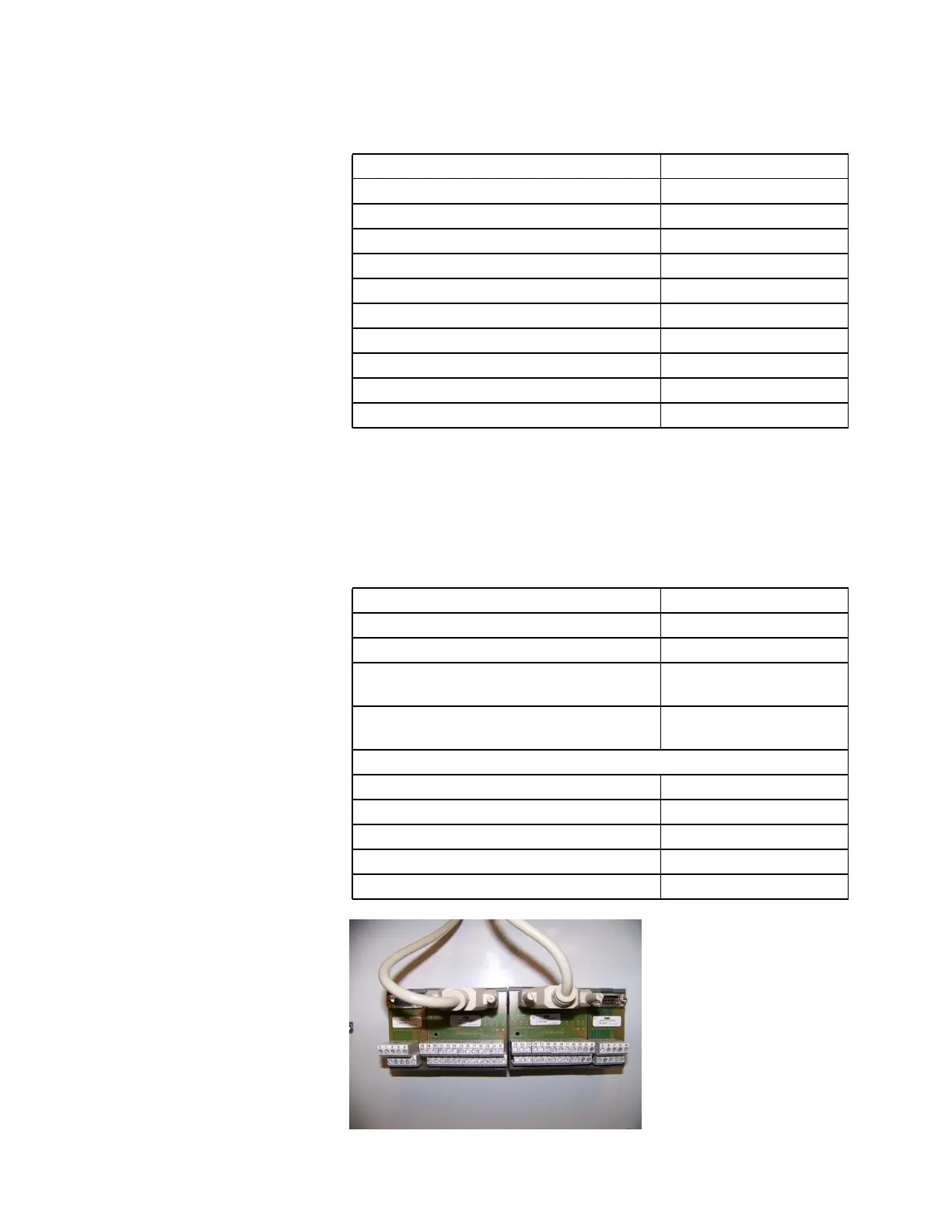

Programmable opto-coupled inputs
4
Input connectors
1
Connector type
SUB-D 9 pin female
Input voltage range
12 to 30 V DC,
nominal 24 V DC
Input current
5 to 15 mA DC,
nominal 11 mA DC
Pin assignment connector 1
Input 1
Pin 1
Input 2
Pin 2
Input 3
Pin 3
Input 4
Pin 4
GND
Pin 5, 6, 7, 8, 9
Output 34
Pin 12, 27
Output 25
Pin 13, 28
Output 36
Pin 14, 29
Output 37
Pin 15, 30
Output 38
Pin 31, 32
Output 39
Pin 33, 34
Output 40
Pin 35, 36
Output 41
Pin 37, 38
Output 42
Pin 39, 40
Output 43
Pin 41, 42
Output 44
Pin 43, 44
