Protemp Sun-Stream PT-70-SS-A - Replacement Parts; Exploded Parts Drawing

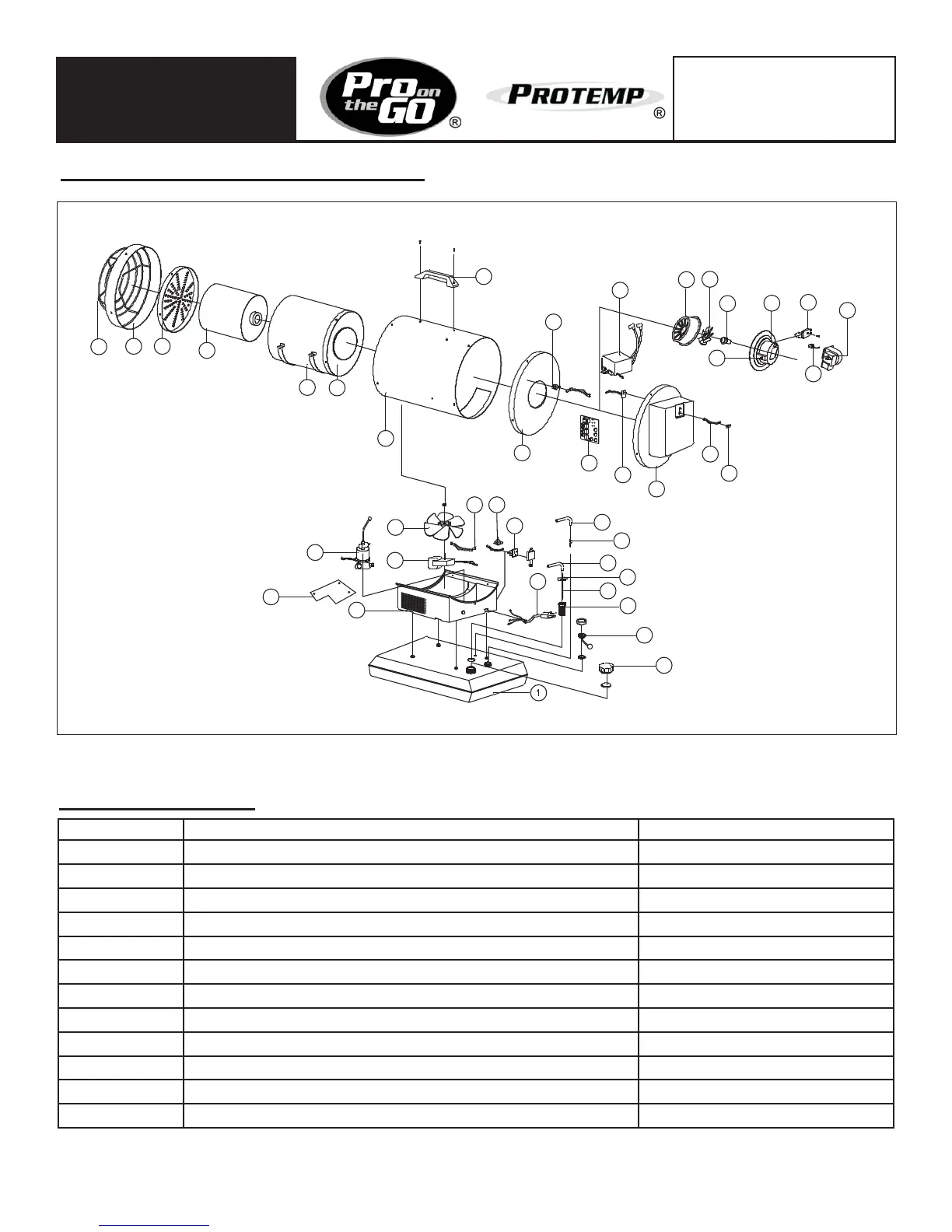

Figure 11. Exploded View: PT-70-SS-A
Exploded Drawing Part Breakdown
Page 8 Pinnacle Products International, Inc. Ultra-Portable Kerosene User’s Manual
Replacement Parts
Item # Description PT-70-SS-A
1 FUEL TANK ASSEMBLY 75-001-0350
2 OIL FILTER ASSEMBLY 75-023-0270
3 FUEL PIPE 75-023-0345
4 FUEL PACKING 75-023-0355
5 FUEL HOSE 75-024-0510
6 FUEL GAUGE ASSEMBLY 75-022-0210
7 FUEL CAP ASSEMBLY 75-002-0110
8 COOLING FAN HOUSING 75-011-0670
9 OPERATING SWITCH 75-012-0110
10 OPERATING SWITCH WIRE ASSEMBLY 75-012-0220
11 REAR PCB ASSEMBLY 75-013-0200
12 ELECTRONIC-PUMP ASSEMBLY 75-027-0250
35
33
34
13
31
32
3029
36
21
14
11
37
10
41
9
7
6
2
3
4
5
40
16
12
17
18
42
8
19
24
23
25
2627
28
20
22
15
39
38
Ultra-Portable Oil-
Fired Radiant Heater
NEVER LEAVE HEATER
UNATTENDED WHILE BURN-
ING, OR WHILE CONNECTED
TO A POWER SOURCE.
