INTRODUCTION
23 MTV2.5.2
1
2
3
4
5
6
7
8
9
10
11
ABCDE
21
20
18
19
17
15
14
13
16
12

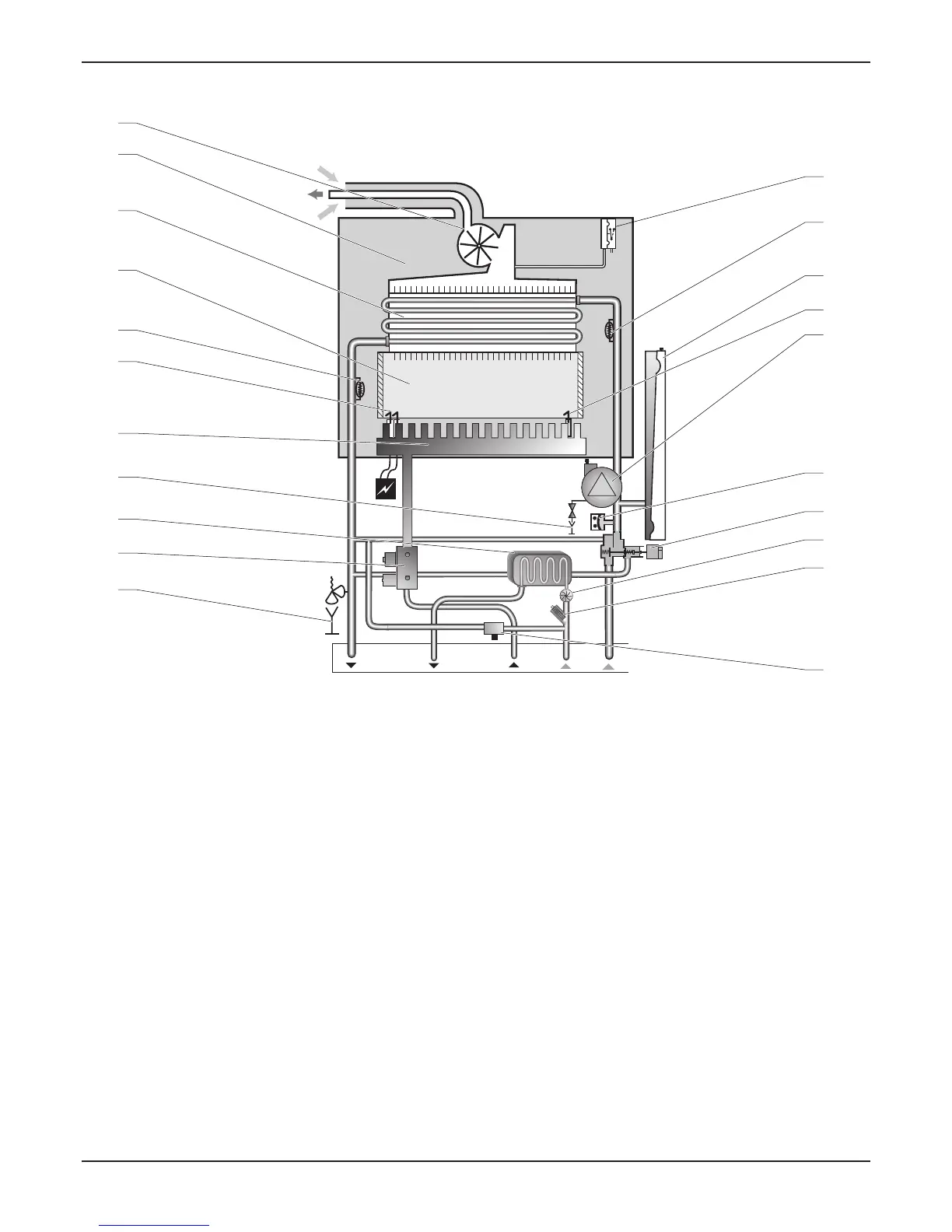

Legend
1 Safety valve
2 Gas valve
3 HW exchanger
4 Discharge valve
5 Burner
6 Ignition electrodes
7 NTC CH water intake temperature sensor
8 Combustion chamber
9 CH exchanger
10 Exhaust gas collector
11 Ventilator
12 Air manostat
13 NTC CH return water temperature sensor
14 Expansion tank
15 Ionising electrode
16 Pump
17 CH pressure sensor
18 3–way motor valve
19 HW fl ow sensor
20 HW fi lter
21 Inlet valve
A CH outlet
B HW outlet
C Gas inlet
D HW inlet
E CH inlet
