INTRODUCTION

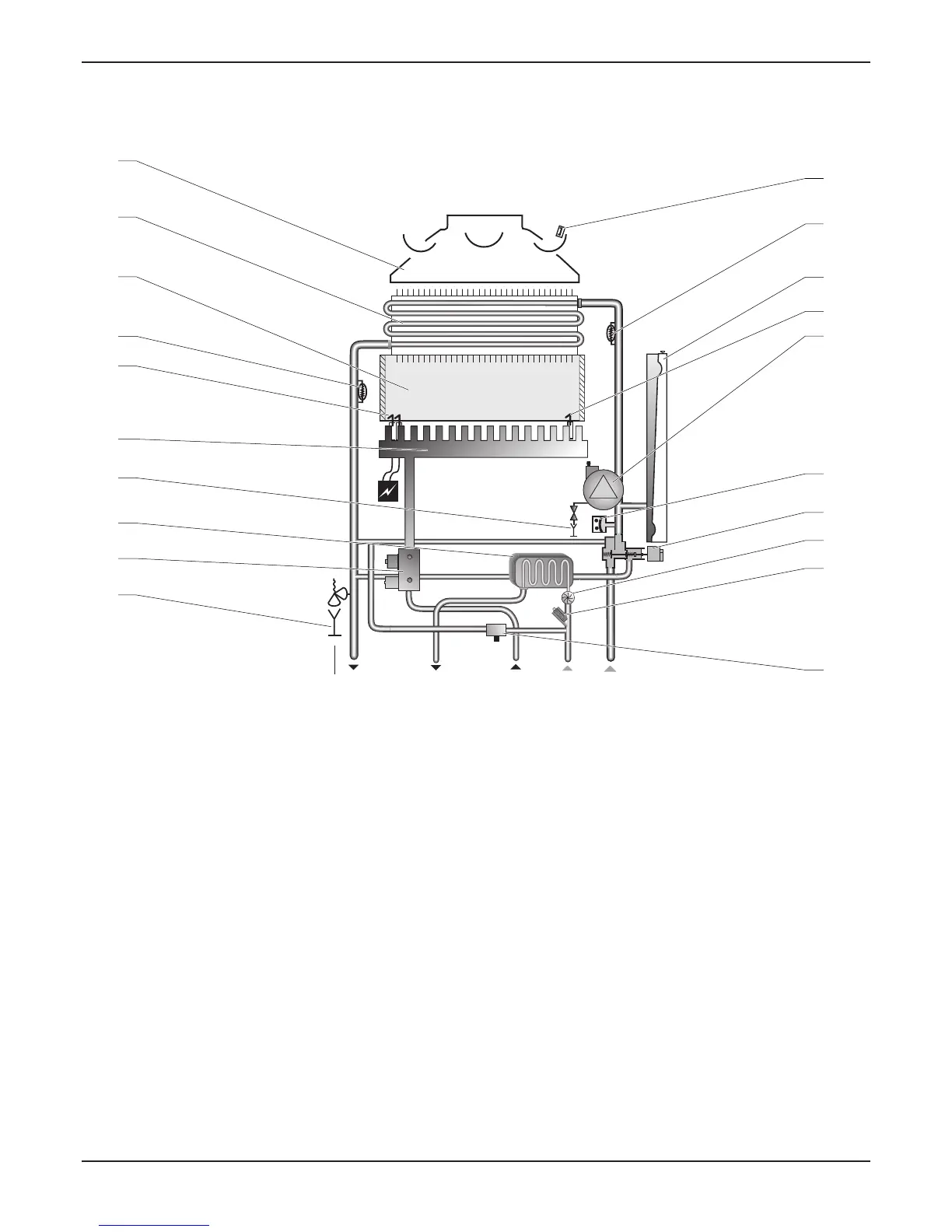

Hydraulic scheme 2.5
23 MOV2.5.1
1
ABCDE
1
2
3
4
5
6
7
8
9
10
20
19
17
18
16
14
13
12
15
11
Legend
1 Safety valve
2 Gas valve
3 HW exchanger
4 Discharge valve
5 Burner
6 Ignition electrodes
7 NTC CH water intake temperature sensor
8 Combustion chamber
9 CH exchanger
10 Exhaust gas collector
11 Combustion thermostat
12 NTC CH return water temperature sensor
13 Expansion tank
14 Ionising electrode
15 Pump
16 CH pressure sensor
17 3–way motor valve
18 HW fl ow sensor
19 HW fi lter
20 Inlet valve
A CH outlet
B HW outlet
C Gas inlet
D HW inlet
E CH inlet
