Protimeter Surveymaster User Manual

Page 10 Protimeter Surveymaster

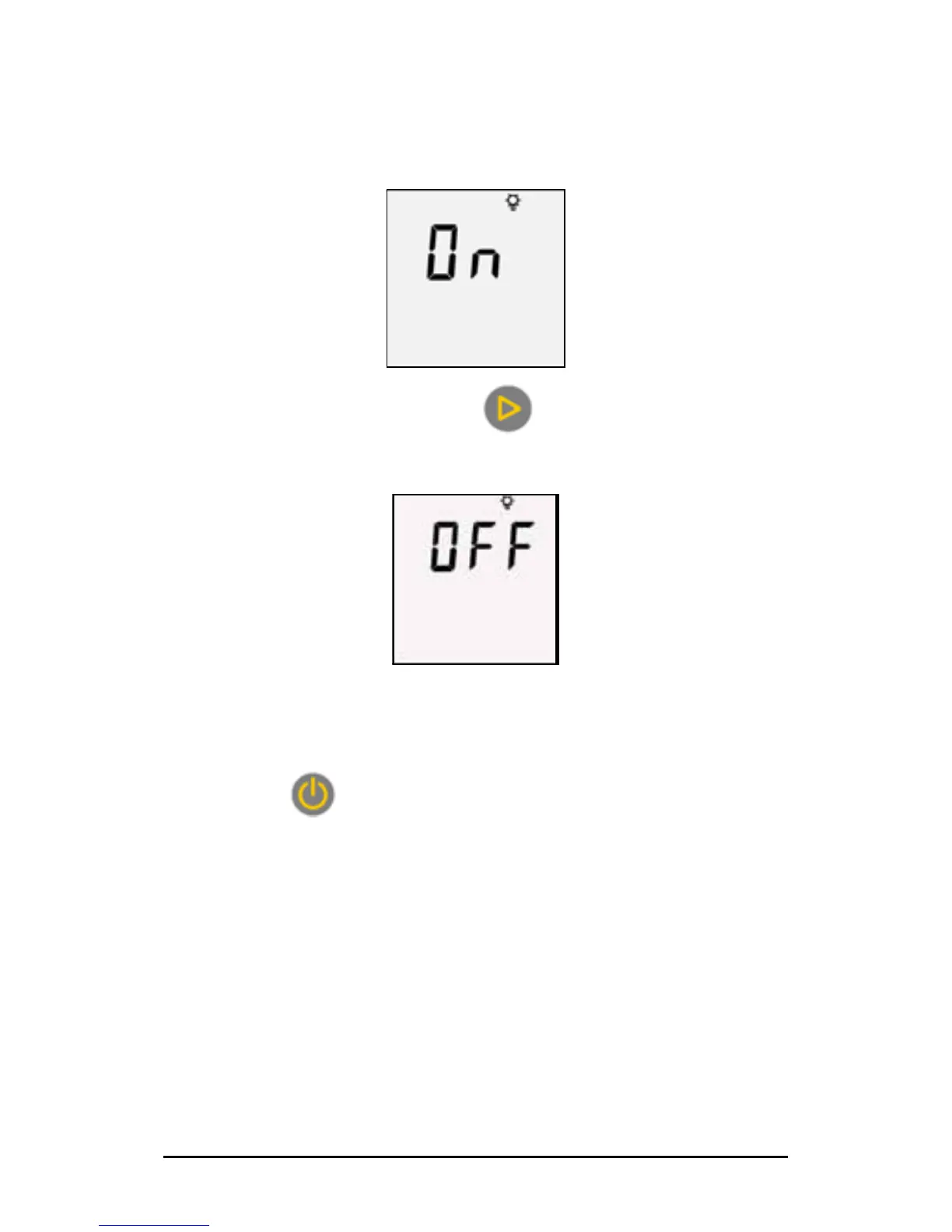

Backlight Settings:
Once the Buzzer settings are entered, the next setting turns the
Backlight ON or OFF.
To change the settings, press the button.
If the unit detects no key press for 2 seconds in the Setting
screen, it moves to the next setting.
Pressing the button, after you have entered the desired
setting, will save the setting and move the screen to the next
setting.

Protimeter Surveymaster Specifications

General

Display	Digital LCD
Power Supply	9V Battery
Operating Temperature Range	0°C to 50°C (32°F to 122°F)
Measurement Principle	Electrical Resistance, Radio Frequency
Non-Invasive Measurement Depth	Up to 19mm (3/4 inch)
Dimensions	190 mm x 70 mm x 49 mm (7.5 in x 2.8 in x 1.9 in)
Accuracy (Moisture)	±1% WME (Wood Moisture Equivalent)
