Protimeter Surveymaster User Manual

Page 6 Protimeter Surveymaster
Measurements:

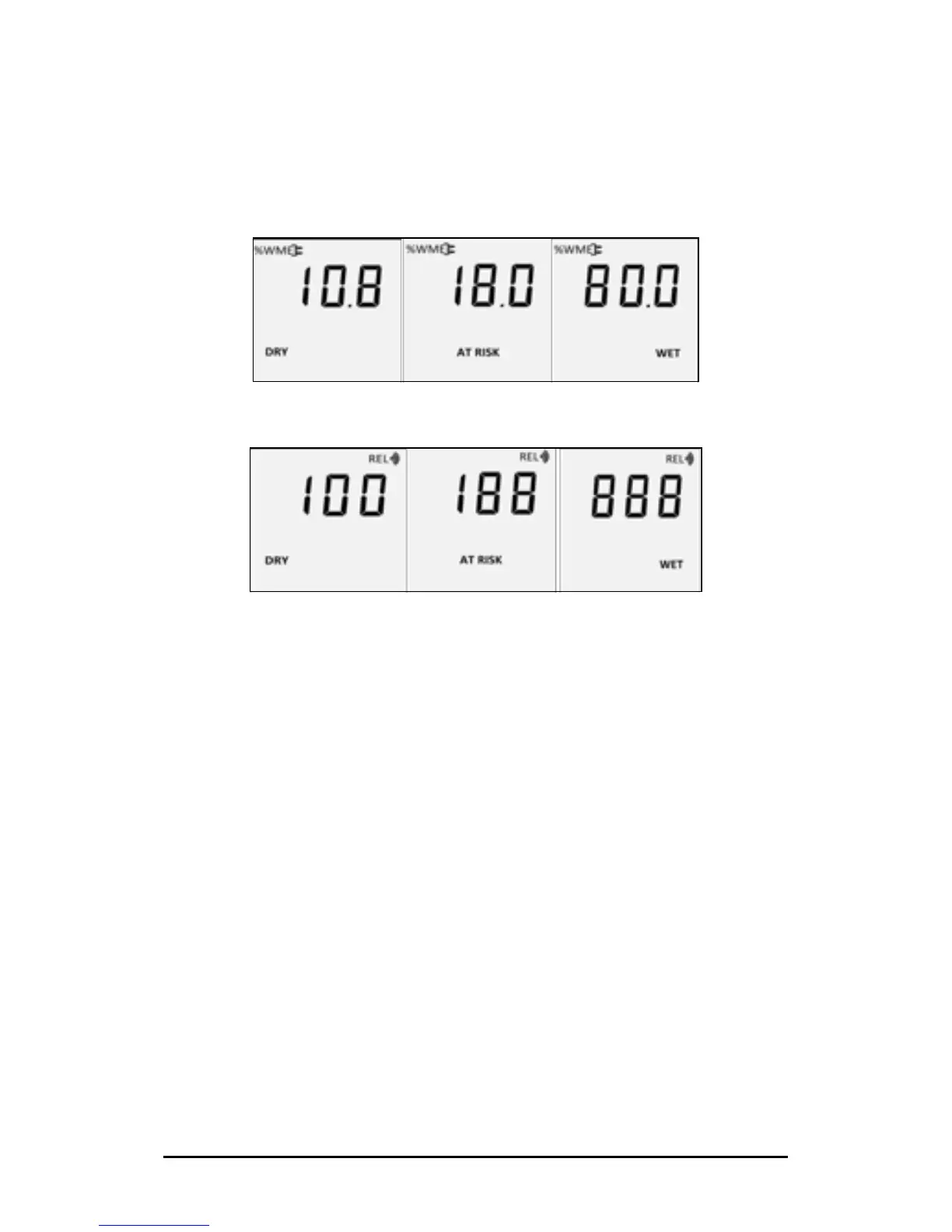

In both modes, the numeric measurement and color LED will be
shown as well as the “DRY” (green) or “AT RISK” (yellow) or
“WET” (red), based on the measurement shown.
7-16.9 DRY (Green), 17-19.9 AT RISK (Yellow), 20-99.9 WET (Red)
70-169 DRY (Green), 170-199 AT RISK (Yellow), 200-999 WET (Red)

Protimeter Surveymaster Specifications

General

Display	Digital LCD
Power Supply	9V Battery
Operating Temperature Range	0°C to 50°C (32°F to 122°F)
Measurement Principle	Electrical Resistance, Radio Frequency
Non-Invasive Measurement Depth	Up to 19mm (3/4 inch)
Dimensions	190 mm x 70 mm x 49 mm (7.5 in x 2.8 in x 1.9 in)
Accuracy (Moisture)	±1% WME (Wood Moisture Equivalent)
