Proton InteliSENS DG2030 User Manual

Page 13 of 69

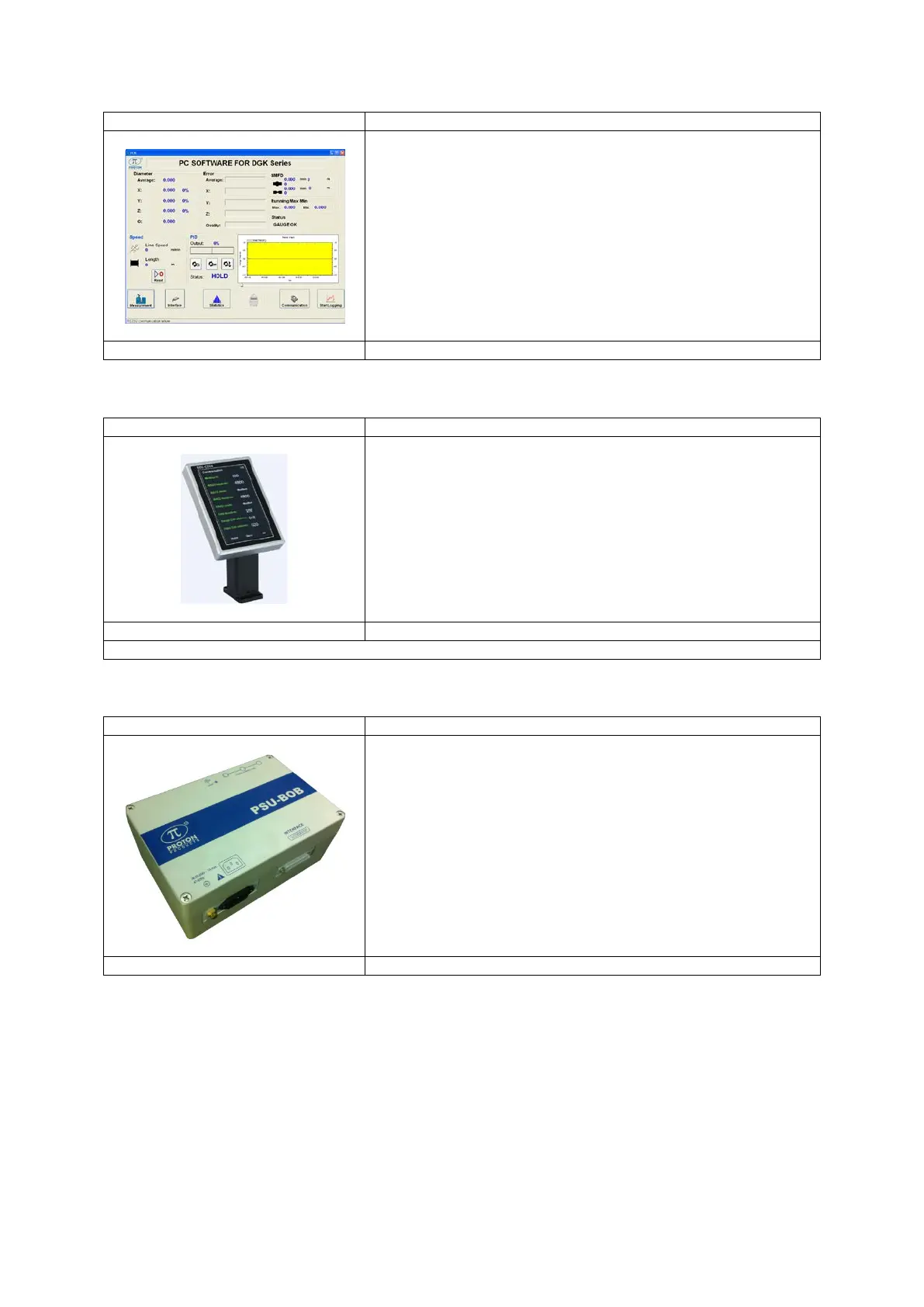

Proton Products InteliSENS DG2030 Diameter Gauge Instruction Manual (Issue 1a)
PCIS_DG
PC Interface Software
• PC-based software package.
• User-friendly graphical user interface.
• Displays all measurements.
• Provides menu-based setting of all parameters.
• Provides data logging, presets and alarms.
• Connection via RS-232, Ethernet or EtherNet/IP.
Proton part number
00054SW015
INTERFACE DISPLAY MODULES
SiDi-CDi4
Touch screen display module
• Touch screen display.
• Connects via the CAN-bus port.
• Displays measured speed and length.
• Provides menu-based setting of all parameters.
• Mounts directly on the gauge body or remotely via an
extension cable.
Proton part number
00049MC023
POWER SUPPLIES AND CONNECTIVITY
PSU-BOB-DG
Power supply and break-out box
• Connects via the DB25 “INTERFACE” connector.
• Supplies 24VDC electrical power to the gauge.
• Provides screw terminal access to all “INTERFACE”
connector input and output pins.
• End user cables are sealed with three cable glands.
• Input voltage range: 90 – 260 VAC @ 45 – 65 Hz.
• Select the required length of DB25 cable from below.
Proton part number
00047MC660
