Proton Products InteliSENS DG2030 Diameter Gauge Instruction Manual (Issue 1a)

Home page 3

Home page 4

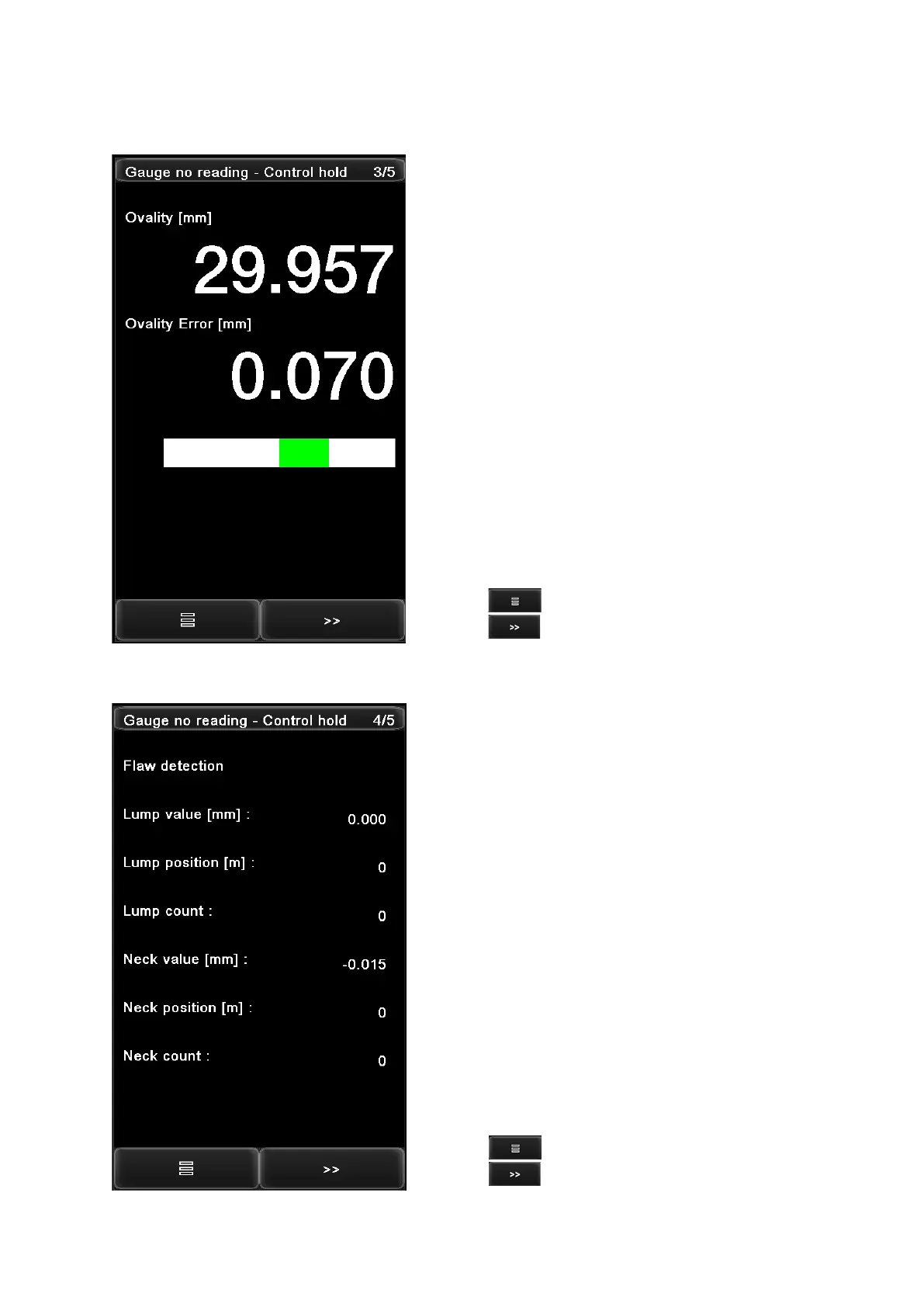

- Gauge status - PID status

- Measured Ovality = max(X, Y) – min (X, Y)

- Ovality error = Measured Ovality – Preset Ovality

- Ovality error bar to indicate above value pictorially

Press the button to access the function menu page.

Press the button to advance to “Home Page 4”.

- Gauge status - PID status

- Size of the last lump flaw

- Position of last lump flaw

- Lump flaw count

- Size of the last neck flaw

- Position of last neck flaw

- Neck flaw count

Press the button to access the function menu page.

Press the button to advance to “Home Page 5”.
