INTERFACE
AOP 1, 2, 3 function
Select the analogue output 1, 2, 3 function from options:
Average;
X;
Y;
Ovality;
Average error;
X error; Y error;
Ovality error.
AOP 1, 2, 3 full scale
Set the maximum measured diameter or most positive error for a +10V output voltage.
• For unipolar outputs, a zero measured diameter corresponds to a 0V output voltage.
• For bipolar outputs, the most negative measured error corresponds to a -10V output voltage.
AOP response: Instant; Average.
Instant: Analogue output voltage represents the value of each individual measurement.
Average: Analogue output voltage represents the time averaged measured value.

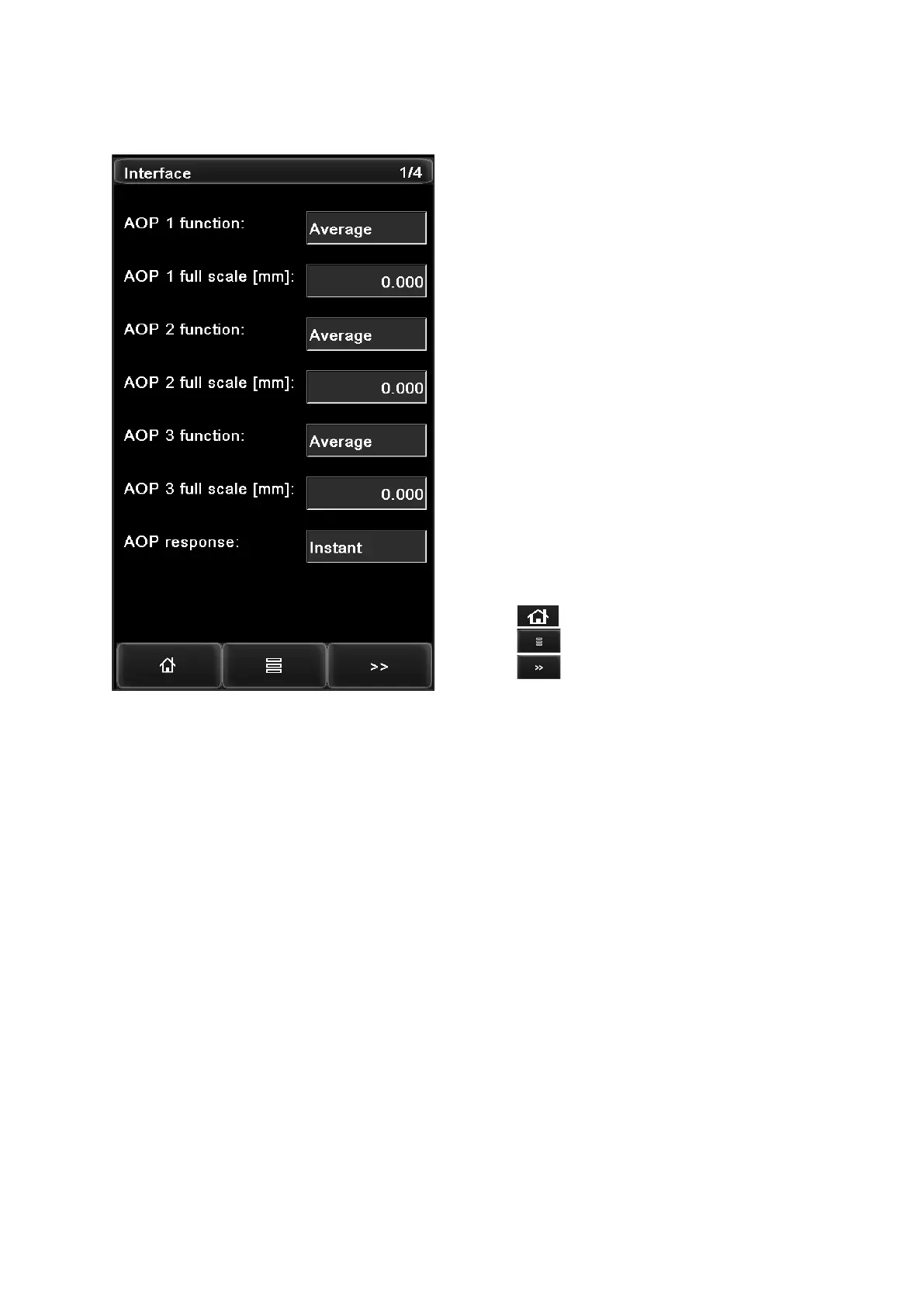

Press the Interface icon on the function menu page to
access the Interface page 1.
- Select the analogue output 1 function.
- Set the analogue output 1 full scale.
- Select the analogue output 2 function.
- Set the analogue output 2 full scale.
- Select the analogue output 3 function.
- Set the analogue output 3 full scale.
- Select the analogue output response.
Press the button to return to the home page.
Press the button to access the function menu page.
Press the button to advance to the next page.
