Page 31 of 69
Proton Products InteliSENS DG2030 Diameter Gauge Instruction Manual (Issue 1a)

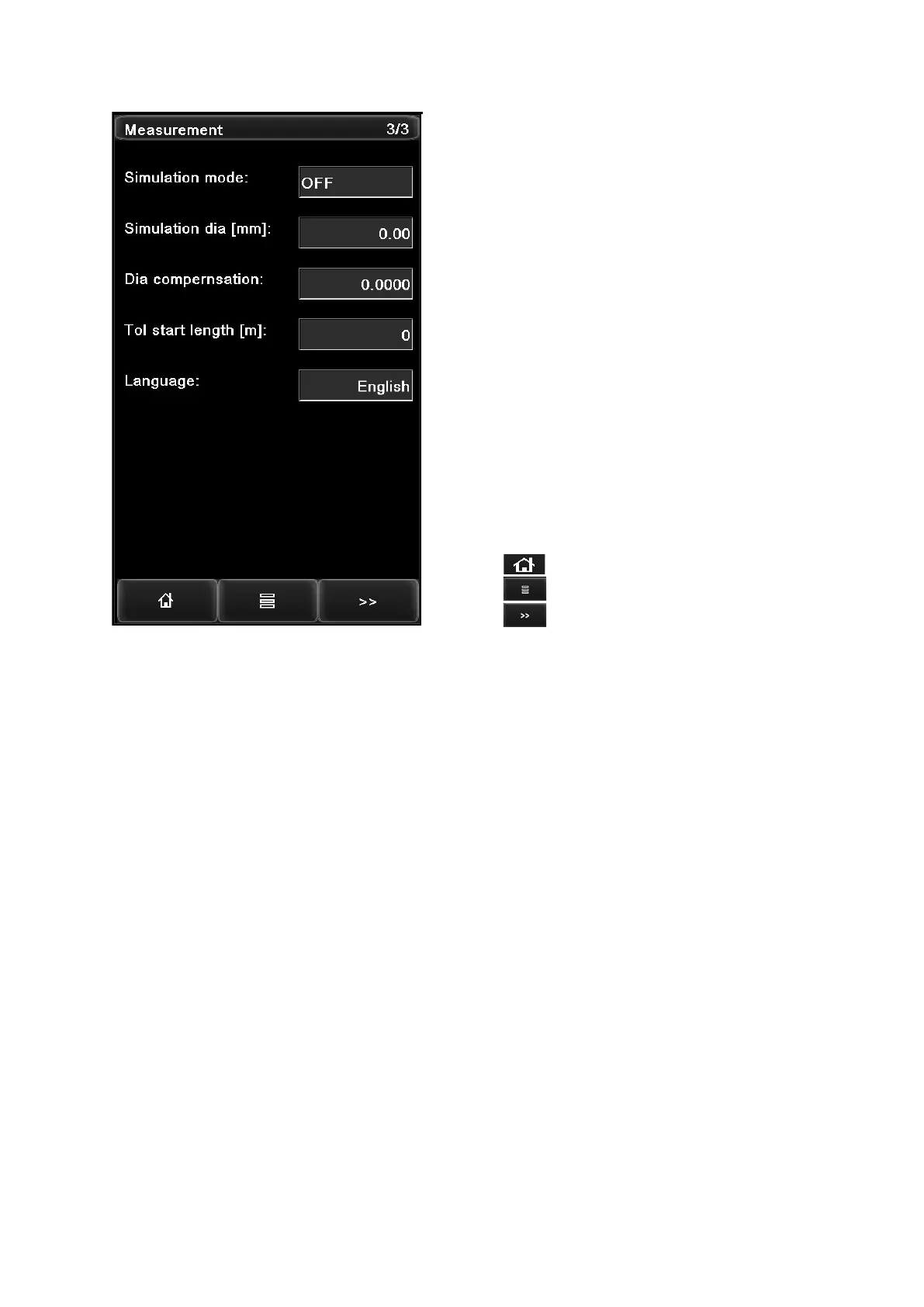

Simulation mode
In the simulation mode, the gauge will behave as if an object of diameter “Sim diameter” has been
placed in the optical gate (all gauge measurements, output parameters and analogue outputs will
behave accordingly).
Do not forget to set to “OFF” to exit simulation mode and resume normal measurement operation.
Dia compensation
All measured diameter values are multiplied by this “Diameter Compensation” factor before display or
reading through a communications interface.
- Switch ON or OFF the simulation mode.
- Set a simulation mode object diameter.
- Set the diameter compensation value.
-
Set a minimum length above which the tolerance
alarm is enabled.
- Select the software language from options:
English; Chinese.
Press the button to return to the home page.
Press the button to access the function menu page.
Press the button to advance to the next page.
To Next Page
