Page 17 of 69
Proton Products InteliSENS DG2030 Diameter Gauge Instruction Manual (Issue 1a)
MECHANICAL INSTALLATION

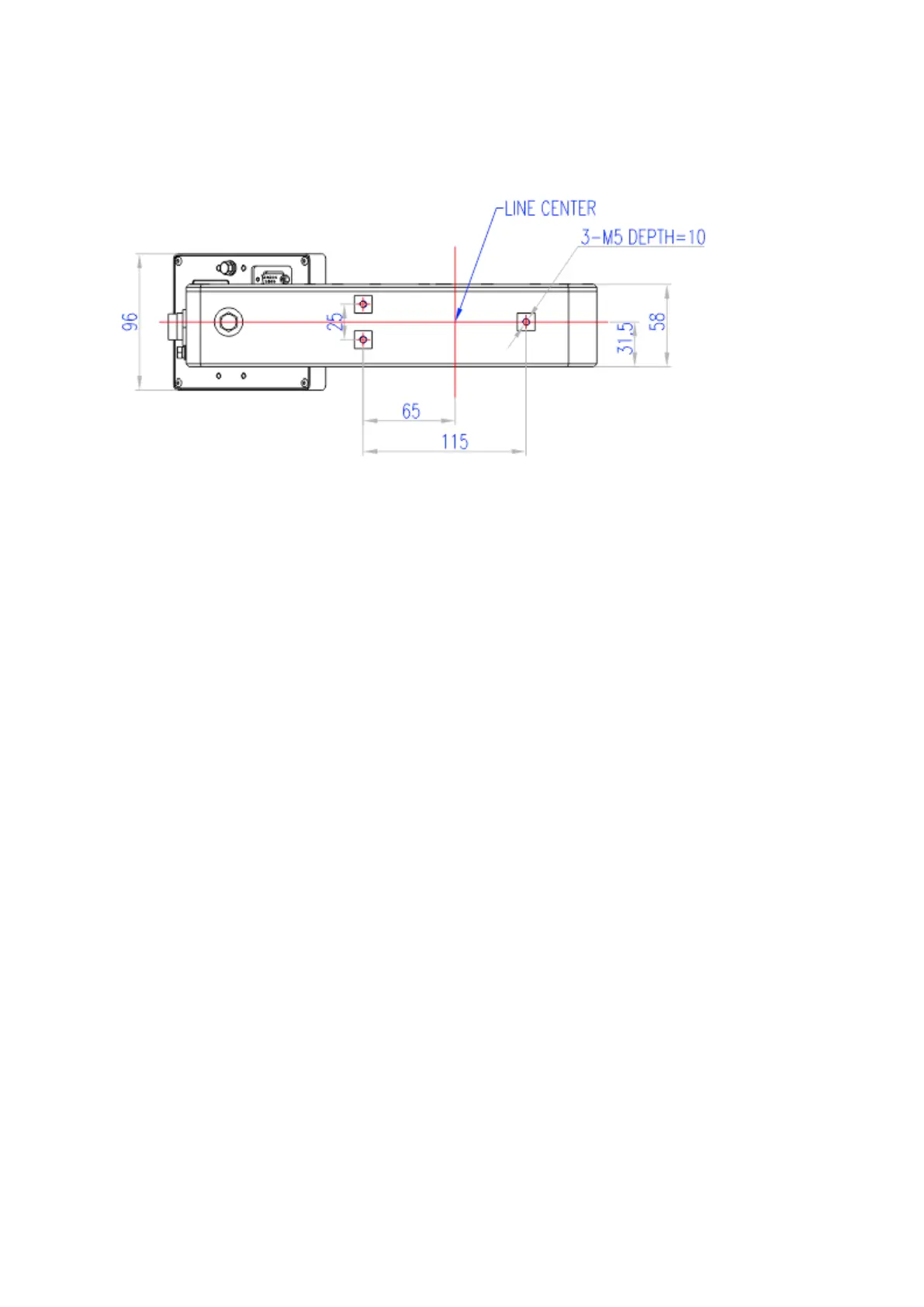

GAUGE HEAD DIMENSIONS: DG2030
INSTALLATION NOTES:
• Do not open the gauge or loosen the cover screws.
• Do not overtighten the fixing screws.
• Do not use fixing screws that are too short or long. The correct screws [M5 by 16] are supplied
with the gauge head for mounting it to the HST3 height stand which has a thickness of 8mm. If a
stand of different thickness is used then the screw length supplied may not be suitable.
• Do not place in a position close to a hot surface.
• Do not allow the cable being measured to touch the gauge head.
• If a large cable is being measured then ensure that it is supported so that the cable end does not
catch on the gauge.
• Ensure that the cable alignment is perpendicular to the face of the gauge with the least error
practically possible, an angle error of one degree gives a measurement error of 0.013%, at two
degrees this becomes 0.05%.
