Proton Products InteliSENS DG2030 Diameter Gauge Instruction Manual (Issue 1a)

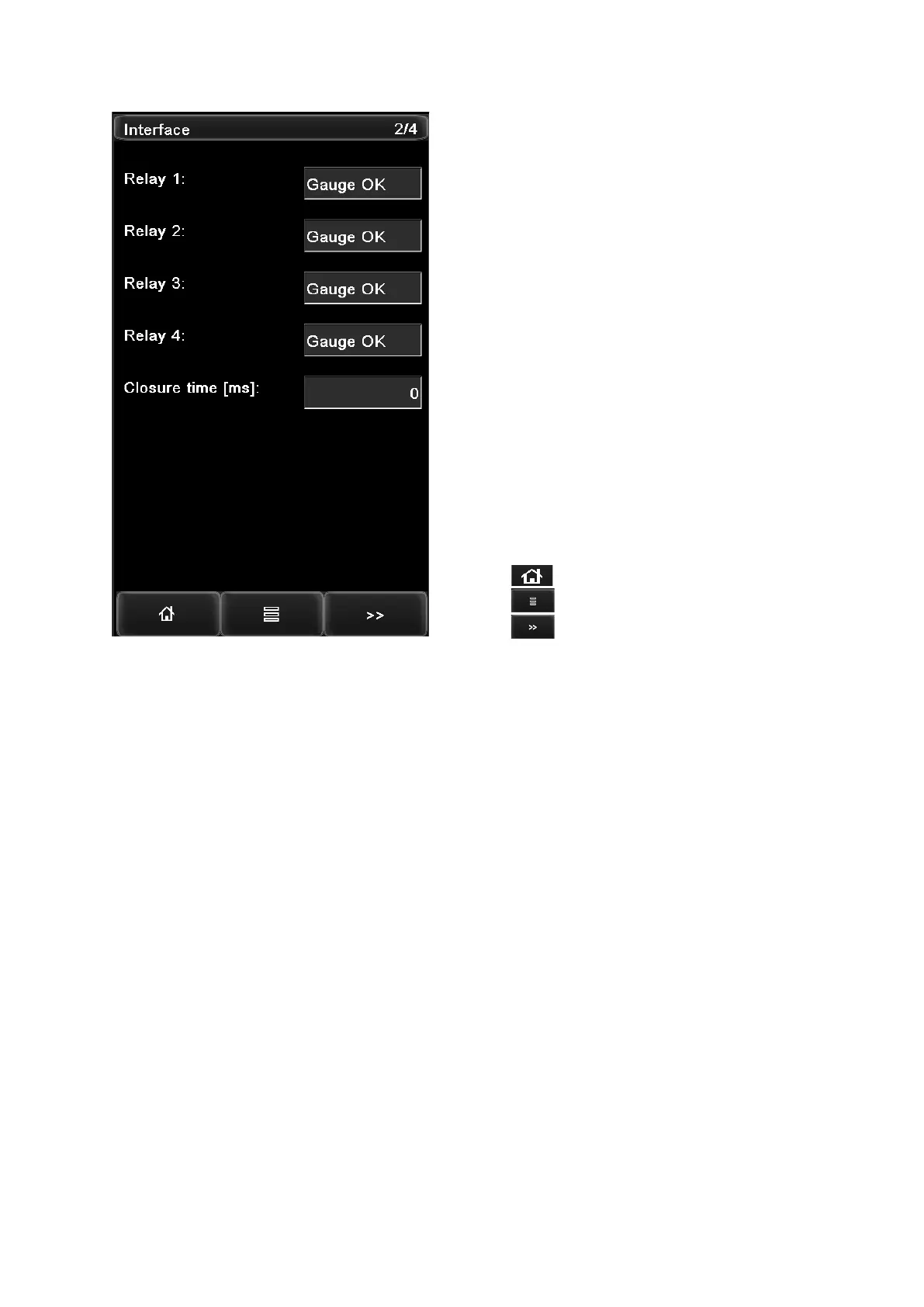

Relay 1, 2, 3, 4

Select form the following options:

Gauge OK;

Over any (limit);

Under any (limit);

Lump&Neck;

Lump;

Neck;

Over average (upper limit);

Under average (lower limit);

Over X (upper limit);

Under X (lower limit);

Over Y (upper limit);

Under Y (lower limit);

Over ovality (upper limit);

Window Dirty.

- Select the condition under which this relay contact will

close (short-circuit).

- Same as above.

Set the relay contact closure time duration (this setting

applies to all four relays).

Press the button to return to the home page.

Press the button to access the function menu page.

Press the

button to advance to the next page.
