Proton Products InteliSENS DG2030 Diameter Gauge Instruction Manual (Issue 1a)
LIN 1, 2, function
Reset:
• Reset all flaw sizes, counts and positions to zero.
• Reset all running maximum and minimum diameters to zero.
• Reset cumulative length to zero.
Ext alarm 1:
• Print “Ext alarm 1” message to a printer connected to the RS232 port.
• Set output parameter bit DW1.8=1
Ext alarm 2:
• Print “Ext alarm 2” message to a printer connected to the RS-232 port.
• Set output parameter bit DW1.9=1.
Line rev direction: Decrement the length of the line.
LIN 1, 2 polarity
Active low: Active when applied input voltage is below +3V.
Active high: Active when applied input voltage is above +10.5V.
Ext-alarm hold
Set a minimum hold time (in milliseconds) for the “Ext alarm 1” and “Ext alarm 2” logic inputs; multiple
activations of any “Ext alarm 1” and “Ext alarm 2” logic input within this time period are counted as a
single activation.
Speed source
Preset: Use the fixed “Preset speed” value for the line speed.
Pulse:
Determine the line speed from the pulse input.
Analogue: Determine the line speed from the analogue input voltage.

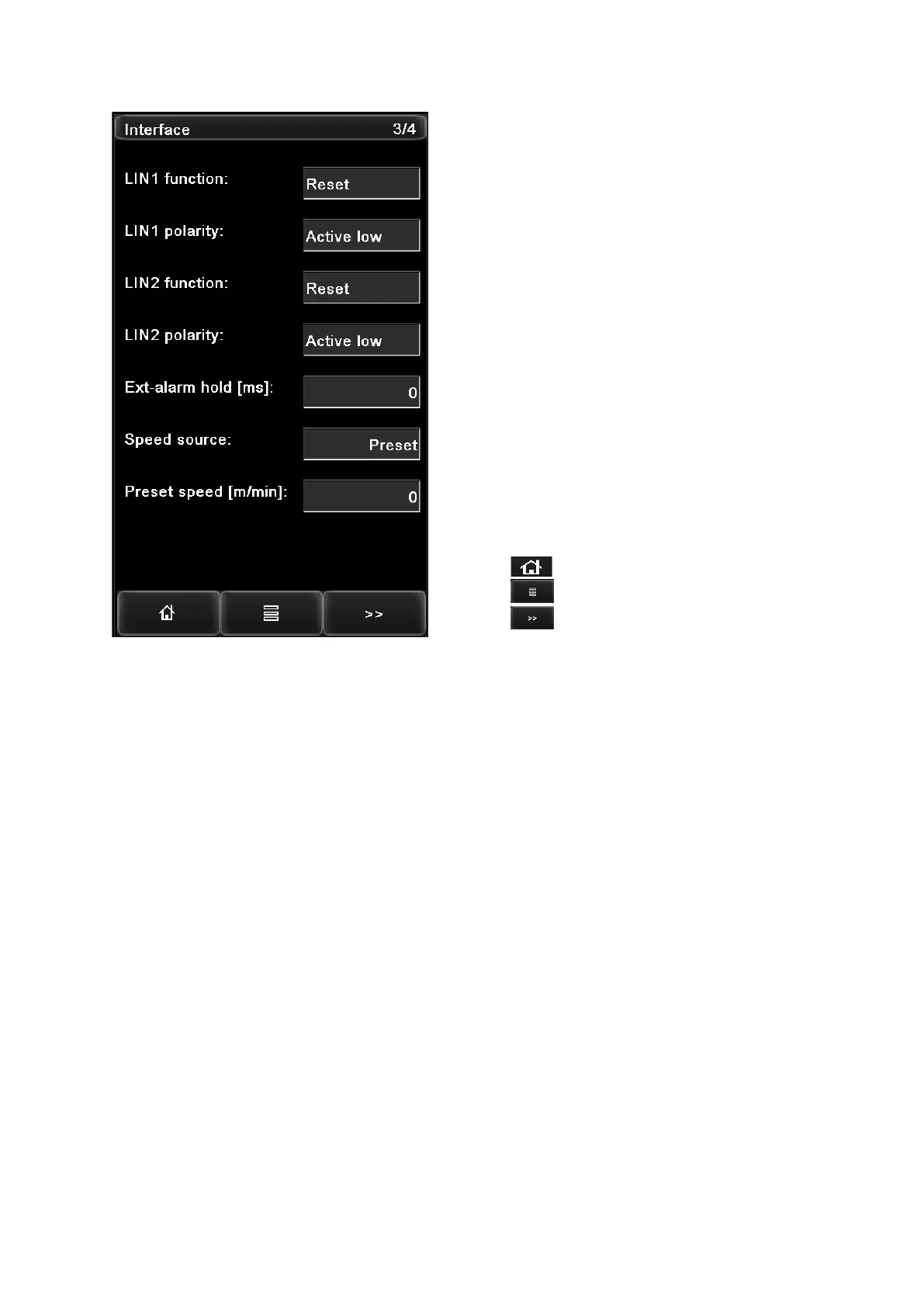

- Select the logic input 1 function from options: Reset; Ext
alarm 1; Ext alarm 2; Line rev direction.
- Select the logic input 1 polarity from options: Active low;
Active high.
- Select the logic input 2 function from options: Reset; Ext
alarm 1; Ext alarm 2; Line rev direction.
- Select the logic input 2 polarity from options: Active low;
Active high.
- Set the Ext-alarm hold time.
- Select the speed source from options: Preset; Pulse;
Analogue.
- Set the preset speed (only when “Speed source” above is
set to “Preset”).
Press the button to return to the home page.
Press the button to access the function menu page.
Press the button to advance to the next page.
