Analog HD Flush Mount Camera Installation
The AHD Flush Mount Camera (Kit P/N: DVR-918, Camera P/N: PC-1918) is
designed to be mounted in a body panel or bumper of the vehicle, flush with the
surface. The camera is used most often inside the rear bumper of vehicles, but it
also works well mounted in an enclosure above the engine compartment or rear
window on rear engine busses. It has a built-in night vision LED’s with an automatic
sensor for capturing video in low-light conditions. Its small form factor and low
profile mounting are its biggest advantage. The camera lens has a wide 130°
horizontal and 65° vertical coverage.
Mounting Location:
The camera mounts in a 1.25” hole, and can be rotated 360° for
proper aim; the camera can also be tilted at a 10° angle by
installing the angle rings on either side of the mounting surface.
Installation:
1. Locate the desired mounting location, check for
proper clearance behind the surface for the camera
body, then mark and drill a 1.25” hole.
2. Disassemble the camera by loosening the two (2)
threaded lock rings, removing them, and sliding them
off the cable and connector. Then removing all the
spacer rings.

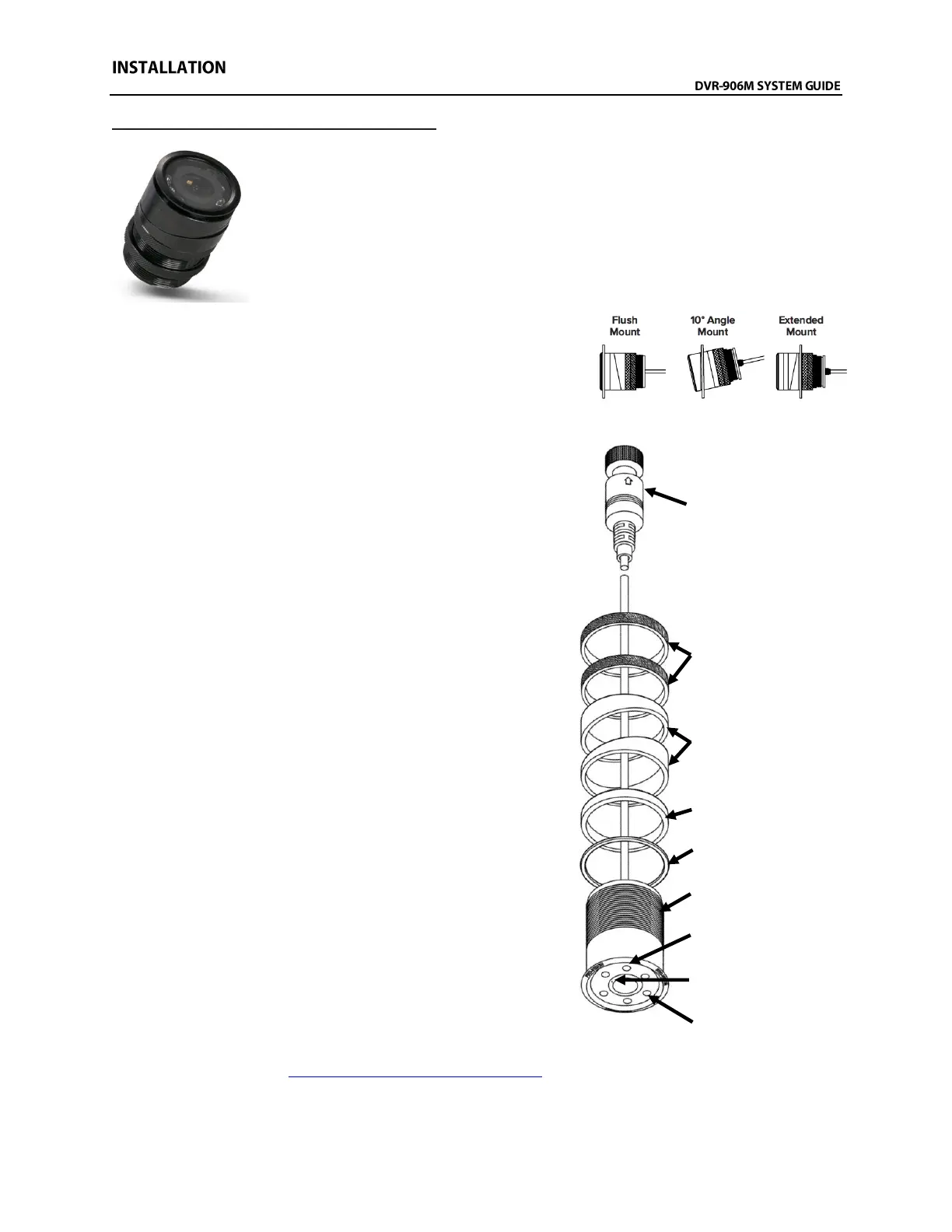

3. Determine the order of the spacers as needed based
on the desired mounting as shown in the images
above right.
4. Slide the outer spacers over the cable and onto the
camera, then slide the camera, cable first, through the
mounting hole.
5. Slide the inner spacers over the cable and onto the
camera.
6. Install the mounting gasket between the outer
mounting surface and the camera body or the first
spacer.
7. Slide the two (2) threaded locking rings over the cable
and then thread them one at a time onto the camera
body.
8. Connect the camera connector to the cable running to
the DVR unit, if it is not yet installed, install the cable
at this time and then continue to step 9.
9. Power on the DVR unit and connect to the Wi-Fi to
view the live camera image to properly aim it on the
view page. (See Viewing Cameras on a Smart Device for connection details)
10. When finished aiming, fully tighten the first locking ring and then the second locking ring.
