Setting Up the Dock
User’s Guide 109
2. Gently press the PT Dock adapter into the base of the PT2000 or
Top Gu n.

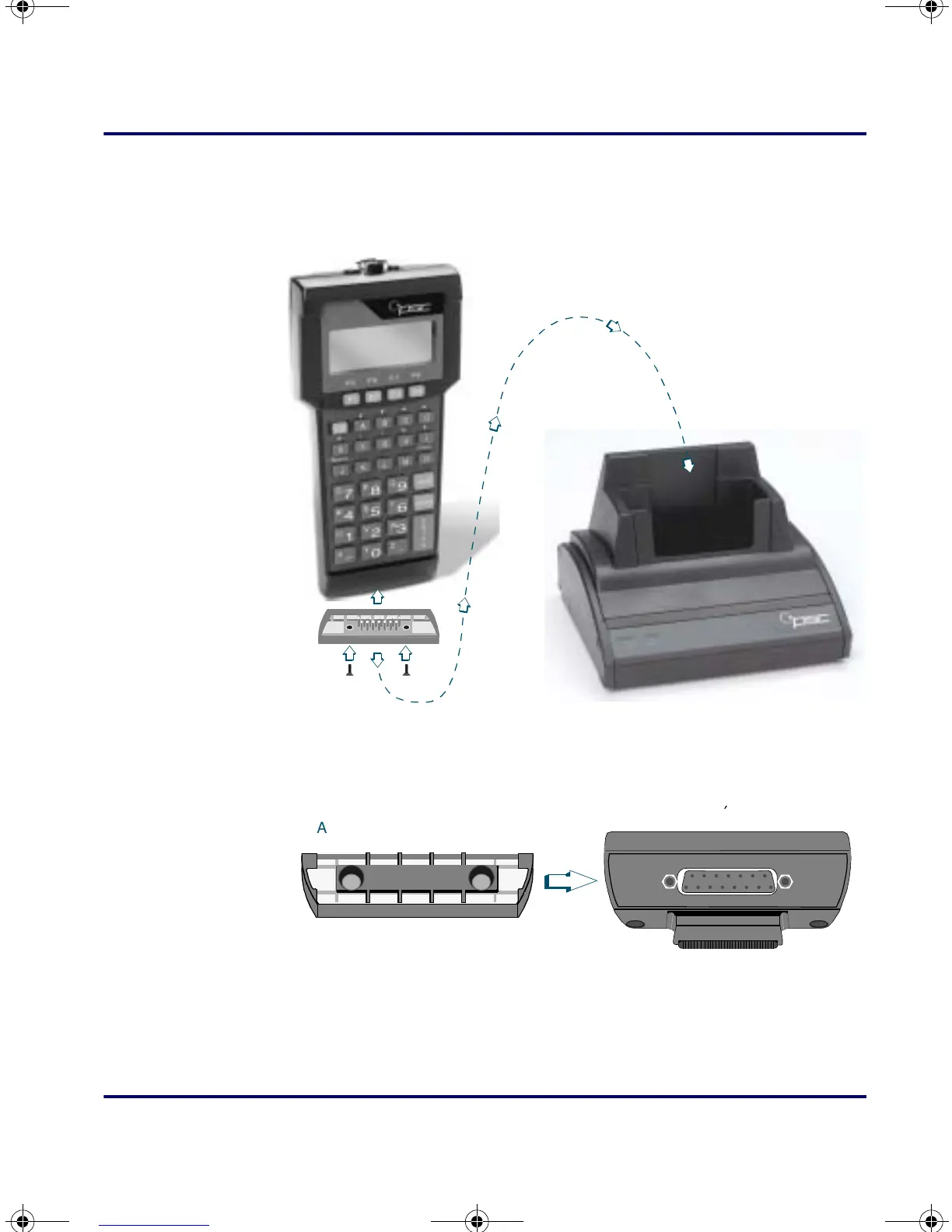

Figure D-1: The PT2000, PT Dock, and adapter
3. Use the two provided screws to secure the adapter to the portable.
Figure D-2: Attaching the adapter
Adapter, with longest edge up
Base of PT2000 or TopGun with
keypad side up
PT2000.book Page 109 Thursday, February 26, 2004 9:34 AM
